8-44 VersaMax® Modules, Power Supplies, and Carriers User's Manual – March 2003 GFK-1504K
8
IC200MDL940
Output Module, Relay 2.0 Amp, Isolated Form A 16 Points

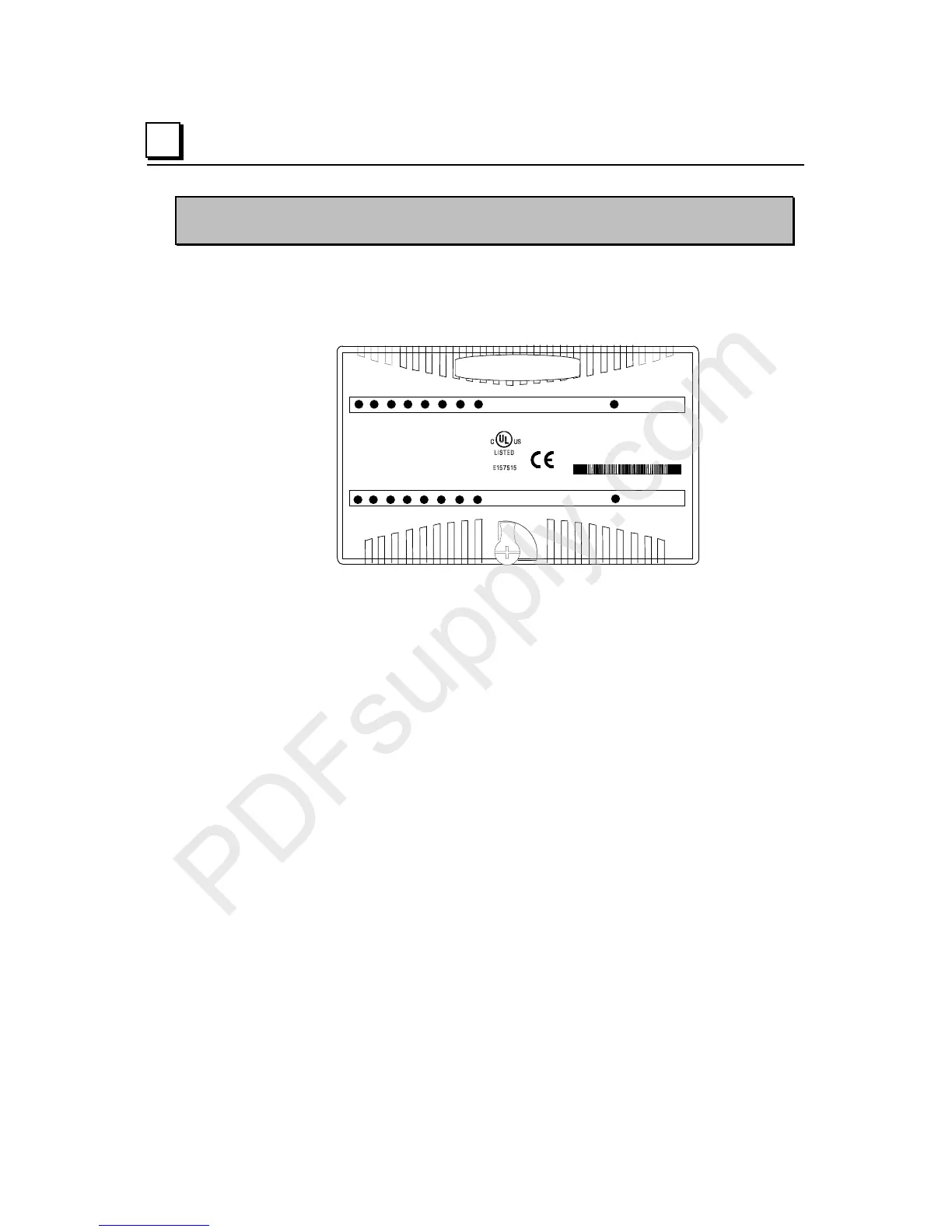

Relay Output Module IC200MDL940 provides 16 individually-isolated Form A
relay outputs. The contact is closed when the host CPU is active and the
corresponding output logic bit is “1”.
1234567 814
OK
IC200MDL940
OUTPUT RELAY
2A ISO FORM A 16PT
123456 78
OK
9 10 11121314 1516
6M89
Q
Q
IND CONT EQ FOR HAZ LOC
CLASS I DIV 2 GROUPS ABCD
Temp Code T4A Ambient 60C
CLASS I ZONE 2 GROUP IIC
Ex nA IIC T4 OC
≤
To
≤
60C
Ex nV T4 Demko No. 98Y. 125014
Power for module operation comes from the backplane. Loads must be powered by
an external source.
Intelligent processing for this module is performed by the CPU or NIU. The module
receives 16 bits of discrete output data.
LED Indicators
Individual green logic-side LEDs indicate the On/Off status of each output point.
The output LEDs are logic-driven and independent of load conditions.
The green OK LED is ON when backplane power is present to the module.
To Next Page
