GFK-1504K Chapter 6 Expansion Modules 6-5

IC200ETM001

Expansion Transmitter Module

Pass-Through Serial Port

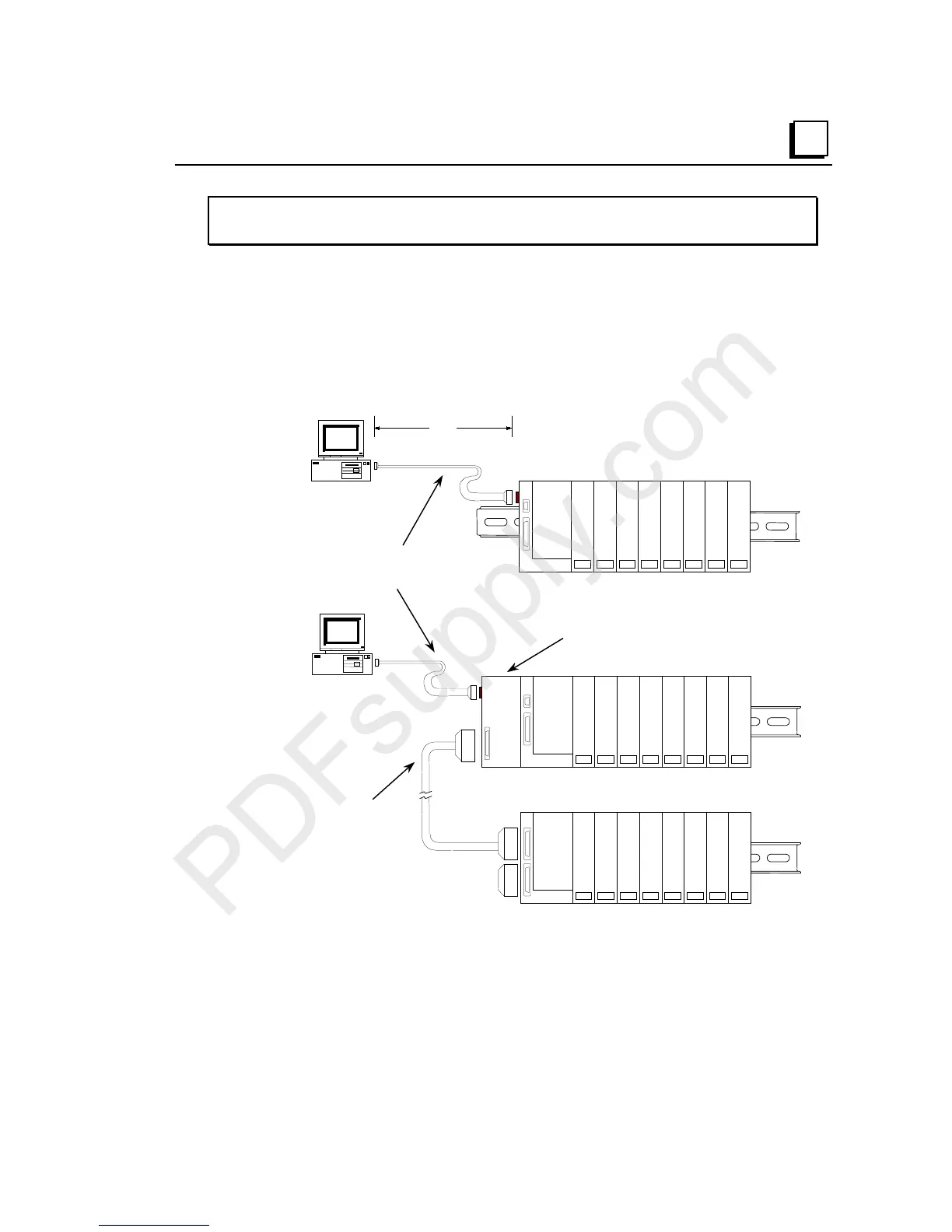

When the Expansion Transmitter is connected to a Network Interface Unit (NIU)

module in an I/O station, firmware upgrades to the NIU are performed via the

Expansion Transmitter’s pass-through serial port. (If there is no Expansion

Transmitter installed, firmware upgrades are made via direct connection between the

programmer and NIU, as shown first in the illustration below.) The same serial

cable, IC200CBL002, is used in both cases.

NIU

Programmer

ERM

Expansion

Cable

Terminator Plug

Programmer

Firmware Update

Serial Cable

IC200CBL002

ETM PS

NIU

6 ft

ersaMax I/O Station, No Expansion

ersaMax I/O Station with

Expansion Transmitter
