IC200MDL740
Output Module, 12/24VDC Positive Logic 0.5 Amp, 16 Points

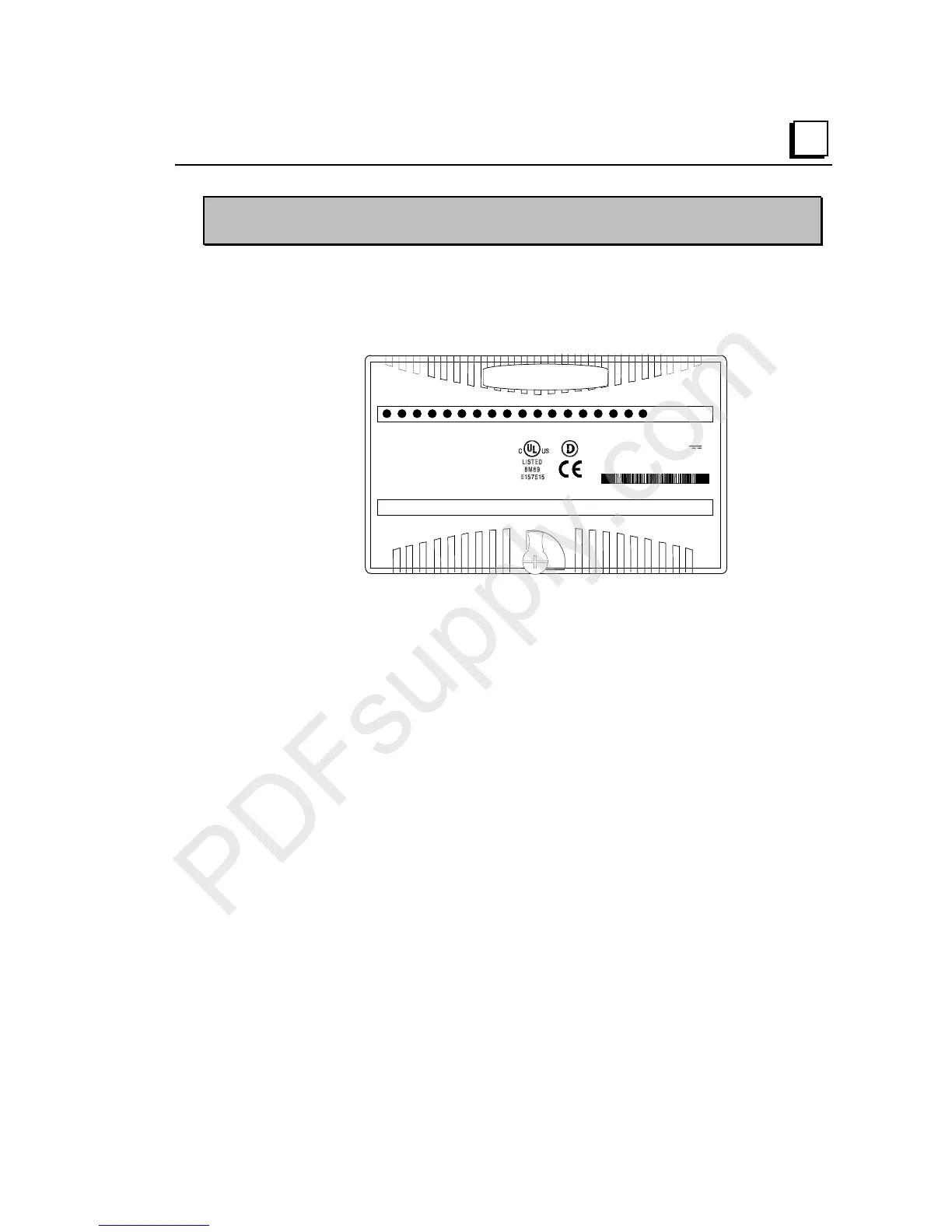

Discrete output module IC200MDL740 provides one group of 16 discrete outputs.
The outputs are positive or sourcing type outputs. They switch the loads to the
positive side of the DC supply and thus supply current to the loads.
1234567 831
IND CONT EQ FOR HAZ LOC
CLASS I DIV 2 GROUPS ABCD
Temp Code T4A Ambient 60C
CLASS I ZONE 2 GROUP IIC TA4
Ex nA IIC T4 0C
≤
To
≤
60C
Ex nV T4 Demko No. 98Y. 125014
IC200MDL740
OUTPUT 12/24VDC
POS LOG GRP .5A 16PT
1 2 3 456 78910111213141516
OK
FLD
Q
Note: 12V output functionality requires module version IC200MDL740B or higher.
An external DC power supply must be provided to switch power to the loads.
Intelligent processing for this module is performed by the CPU or NIU. The module
receives 16 bits of discrete output data.
LED Indicators
Individual green LEDs indicate the on/off state of the output points. The LEDs are
dependent on field power, but independent of load conditions.
The green FLD PWR LED is on when field power is applied to the module.
The green OK LED is on when backplane power is present to the module.
