1-8 VersaMax® Modules, Power Supplies, and Carriers User's Manual – March 2003 GFK-1504K
1
Power Supplies

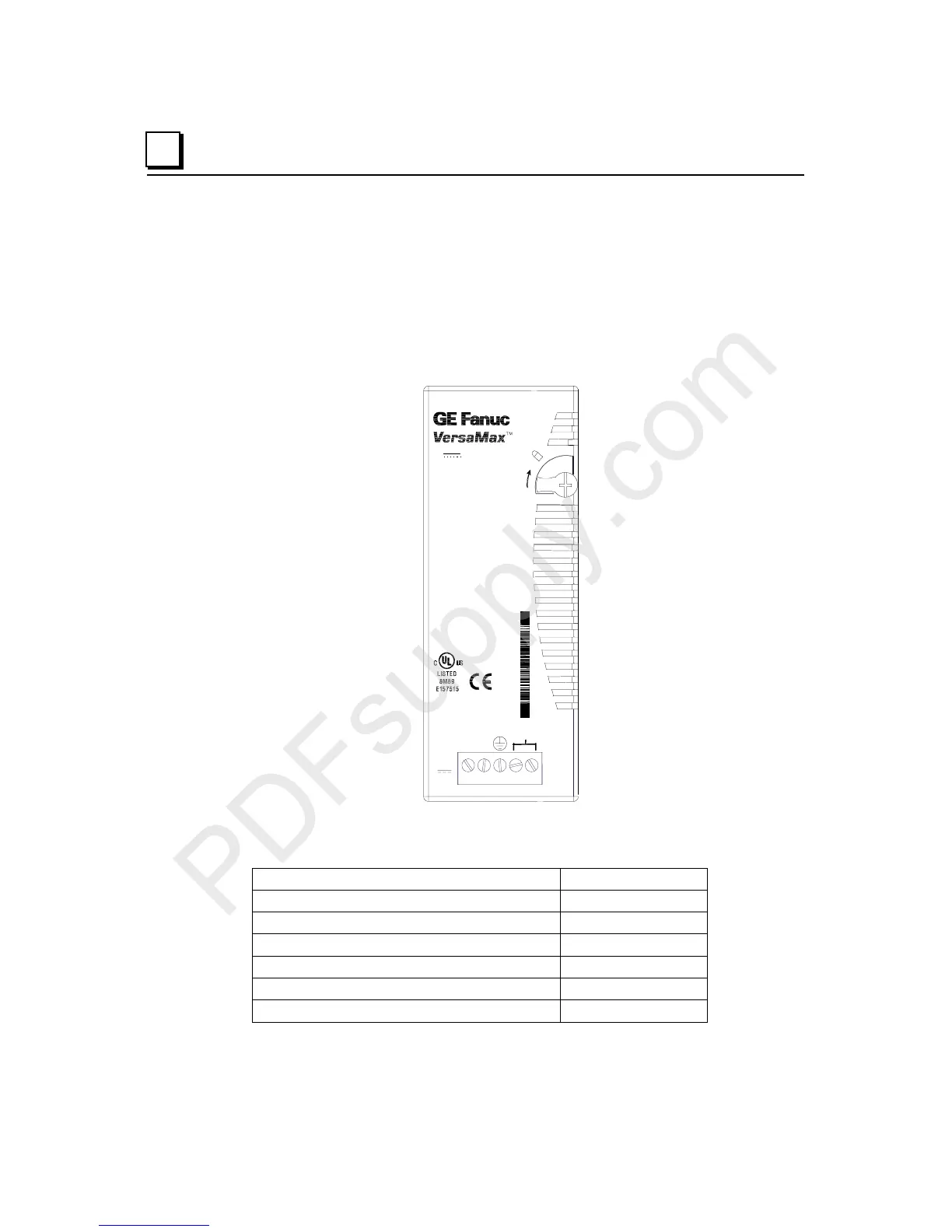

An AC or DC Power Supply module installs directly on the CPU or NIU. The Power
Supply provides +5V and +3.3V power to the modules in the station. Additional power
supplies can be installed on special booster carriers if needed for systems where the
number of modules creates the need for a booster. The AC or DC Power Supply on the
CPU or NIU and the Power Supply that resides on the Booster Carrier must share the same
external power source.
IC200PWR001
VDC
+
INPUT
-
MADE IN USA
24 VDC, 11 W
POWER SUPPLY
WARNING:
EXPLOSION HAZARD
WHEN IN HAZARDOUS
LOCATIONS TURN OFF
POWER BEFORE
REPLACING OR WIRING
MODULES.
IND CONT EQ FOR HAZ LOC
CLASS I DIV 2
GROUPS ABCD
Temp Code T4A
Ambient 60C
NOT
USED
Available Power Supplies and Carrier
The following VersaMax power supplies and carrier are available:
24VDC Power Supply IC200PWR001
24VDC Expanded 3.3V Power Supply IC200PWR002
120/240VAC Power Supply IC200PWR101
120/240VAC Expanded 3.3V Power Supply IC200PWR102
12VDC Power Supply IC200PWR201
12VDC Expanded 3.3V Power Supply IC200PWR202
Power Supply Booster Carrier IC200PWB001
Power supplies are described in chapter 3 of this manual.
