8-2 VersaMax® Modules, Power Supplies, and Carriers User's Manual – March 2003 GFK-1504K
8
IC200MDL329
Output Module, 120VAC 0.5 Amp, Isolated 8 Points

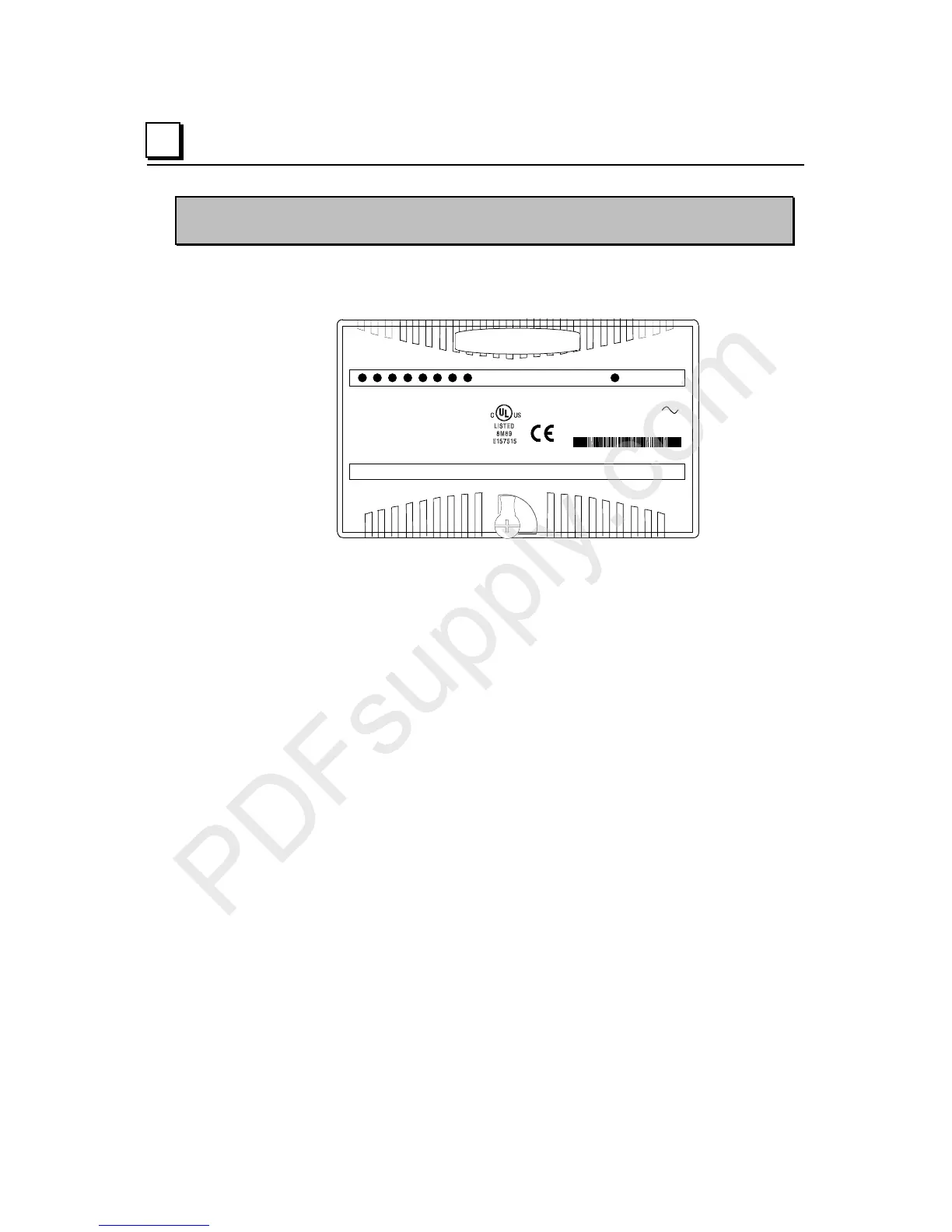

Discrete output module IC200MDL329 provides 8 isolated outputs.
1234567 814
IND CONT EQ FOR HAZ LOC
CLASS I DIV 2 GROUPS ABCD
Temp Code T4A Ambient 60C
CLASS I ZONE 2 GROUP IIC TA4
Ex nA IIC T4 OC
≤
Ta
≤
60C
Ex nV T4 Demko No. 98Y. 125014
IC200MDL329
OUTPUT 120VAC
ISO .5A 8PT
OK
12345678
Q
An external 120 VAC power supply must be provided to switch power to the loads.
Intelligent processing for this module is performed by the CPU or NIU. The module
receives 8 bits of discrete output data.
LED Indicators
Individual green LEDs indicate the on/off state of the output points. The output
LEDs are logic-driven and independent of the load conditions.
The green OK LED is on when backplane power is present to the module.
