11.2.5 Keypad - Conguraon of R/F and CTRL buons
Keypad rotaon setup
Use the
R
F
keypad to reverse the rotaon direcon at local keypad control.
•
Aer the
R
F
key has been pressed, the reversal of rotaon direcon must be conrmed
with the key. (The key serves to cancel the acon.)

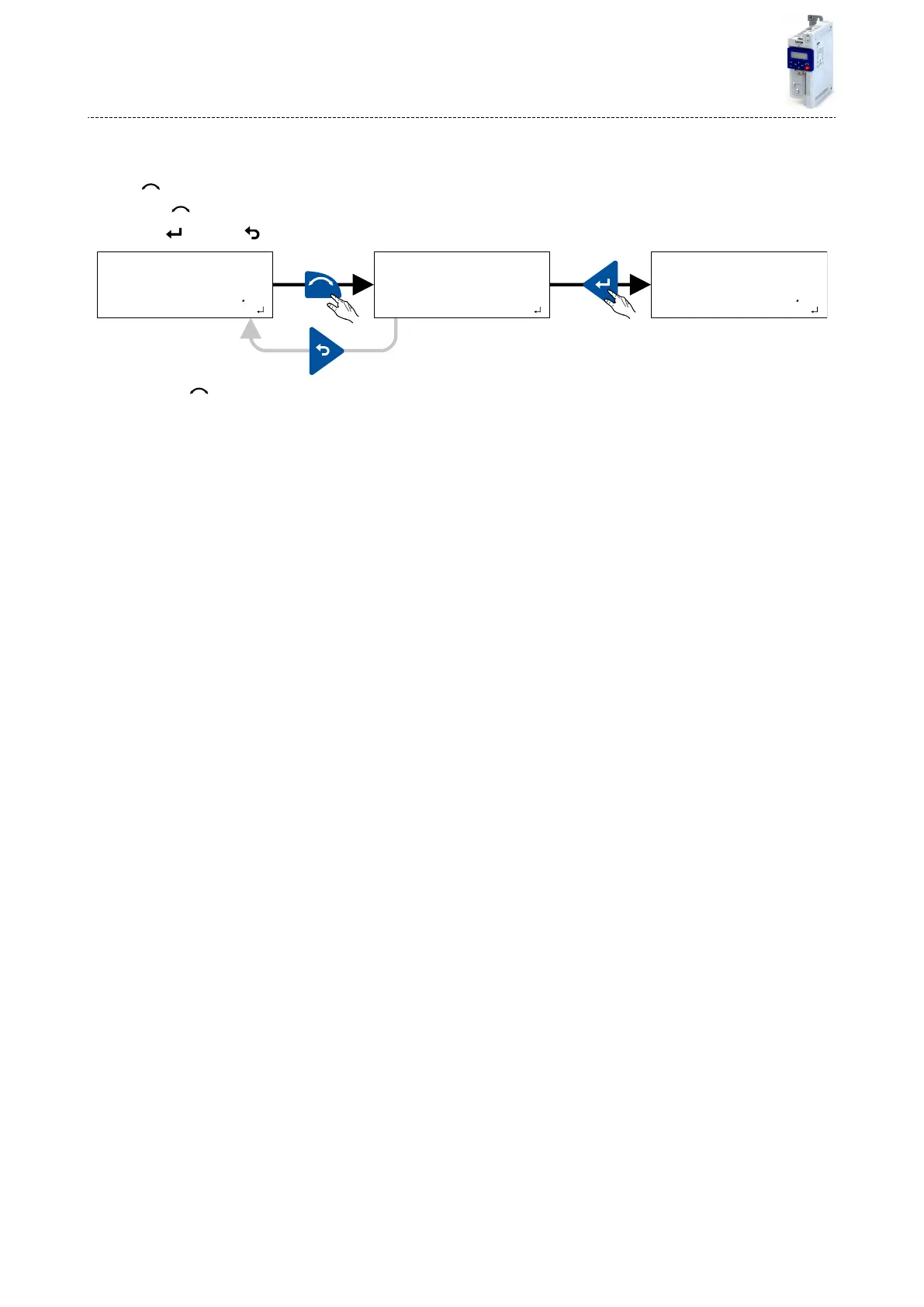

MAN AUTO SETLOC REM
Keypad direction?
0 0 0 O r E V
MAN AUTO SETLOC REM
Hz
0 0 0 O 2 O O
VEL:RUN:FWD
R
F
MAN AUTO SETLOC REM
Hz
0 0 0 - 2 O O
VEL:RUN:REV
The keypad key
R
F
•
directly changes the keypad rotaon setup in 0x2602:002 (P708.02).
• has no funcon in case of a bipolar setpoint selecon (e. g. ±10 V). In this case, the direc-
on of rotaon is determined by the sign of the setpoint.
•
has no funcon if the rotaon limitaon "Only clockwise (CW) [0]" is set in 0x283A
(P304.00).
•
has no funcon in the operang mode 0x6060 (P301.00) = "MS: Torque mode [-1]".
•
has no funcon if the PID control is acvated.
•
can be deacvated in 0x2602:001 (P708.01).
Addional funcons
Keypad
Keypad - Conguraon of R/F and CTRL buons
254

Lenze i510 Series Specifications

General

Protection Class	IP20
Overload Capacity	150% for 60 seconds
Enclosure Rating	IP20
Dimensions	Varies by model
Weight	Varies by model
Control Type	V/f control, vector control
Communication Interfaces	CANopen, Modbus RTU, EtherCAT, PROFIBUS, PROFINET
Ambient Temperature	-10°C to +50°C
Braking Resistor	Optional
Safety	STO (Safe Torque Off)
Protection Features	Overcurrent, overvoltage, undervoltage, overtemperature, short circuit
Output Voltage	0 to input voltage
Input Voltage	200-240 V, 380-480 V
Voltage Range	200-240 V, 380-480 V
Frequency Range	0 to 599 Hz
