Lenze i510 Series Commissioning

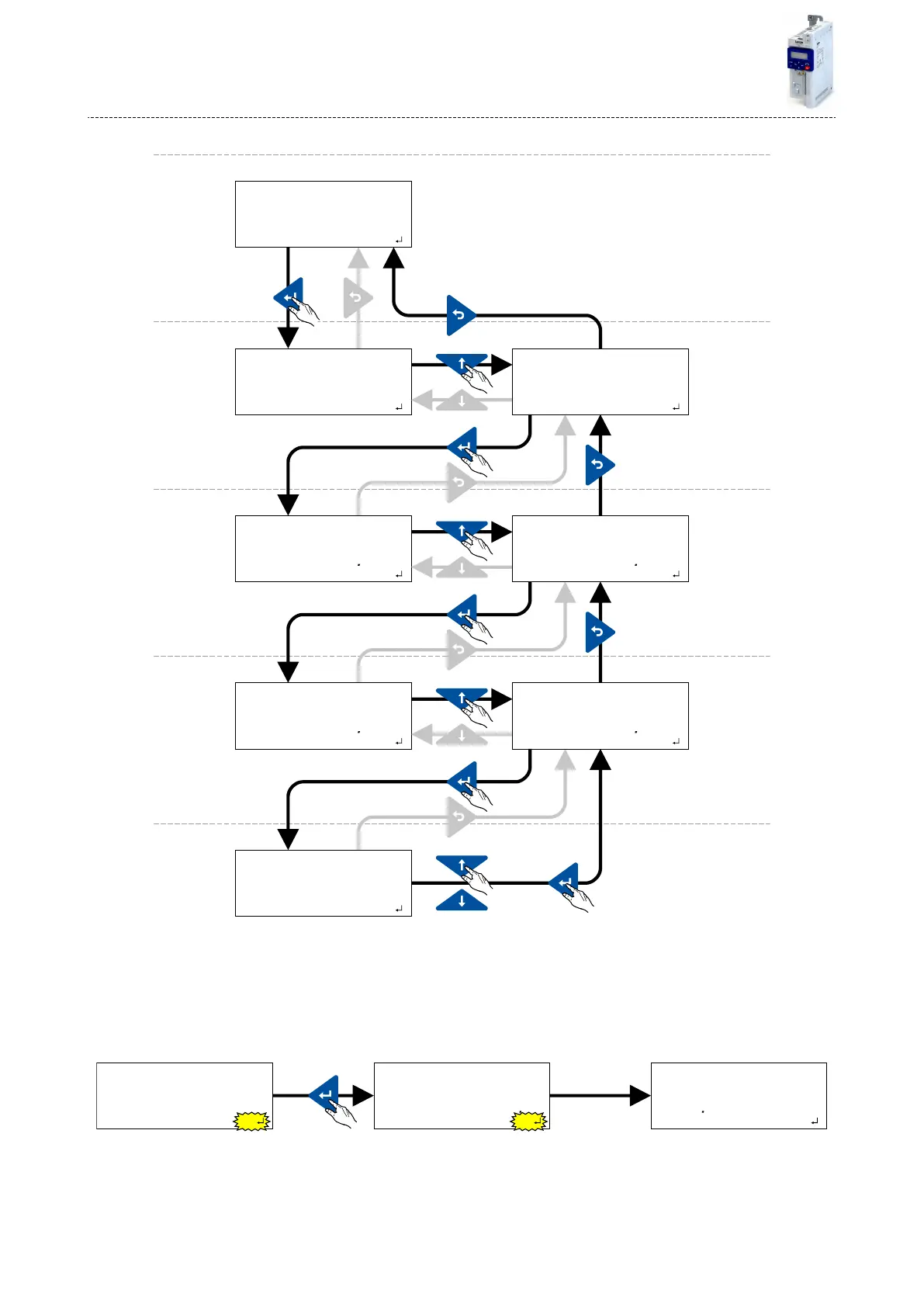

Changing inverter sengs by means of the keypad (general operaon)
MAN AUTO SETLOC REM
0 0 0 O 1 5
MAN AUTO SETLOC REM
MAN AUTO SETLOC REM
O P 4 O O x x
MAN AUTO SETLOC REM
MAN AUTO SETLOC REM
O P 4 2 O x x
MAN AUTO SETLOC REM
O P 4 2 O O 1
MAN AUTO SETLOC REM
O P 4 2 O O 2
1
MAN AUTO SETLOC REM
VEL:FLEX:AIN1
0 0 0 S T O P
G R O U P O O G R O U P O 4
Change to
parameterisation
mode
Back to the operating mode
Back
Back
Operating mode
Release brake
SUB parameter level
DO1 functionRelay function
Discard change
1. Change settings
Editing mode
Parameter level
Group level
Dig.out.function
I/O setting
Function list
Favorites
2. Accept change
15.1.2.3 Save parameter sengs with keypad
If one parameter seng has been changed with the keypad but has not been saved in the
memory module with mains failure protecon, the SET display is blinking.
In order to save parameter sengs in the user memory of the memory module, press the key-
pad enter key longer than 3 s.
MAN MAN MANAUTO AUTO AUTOLOC LOC LOCREM REM REM
VEL Saving Parameters Parameters S aved :FLEX:AIN1
SET SET SET
> 3 s
0 0 0 S T O P S A V I N G P S P
S
A
V
E D
Appendix
Operate and parameterise the inverter with keypad
Keypad parameterisaon mode
436

Lenze i510 Series Specifications

General

Protection Class	IP20
Overload Capacity	150% for 60 seconds
Enclosure Rating	IP20
Dimensions	Varies by model
Weight	Varies by model
Control Type	V/f control, vector control
Communication Interfaces	CANopen, Modbus RTU, EtherCAT, PROFIBUS, PROFINET
Ambient Temperature	-10°C to +50°C
Braking Resistor	Optional
Safety	STO (Safe Torque Off)
Protection Features	Overcurrent, overvoltage, undervoltage, overtemperature, short circuit
Output Voltage	0 to input voltage
Input Voltage	200-240 V, 380-480 V
Voltage Range	200-240 V, 380-480 V
Frequency Range	0 to 599 Hz
