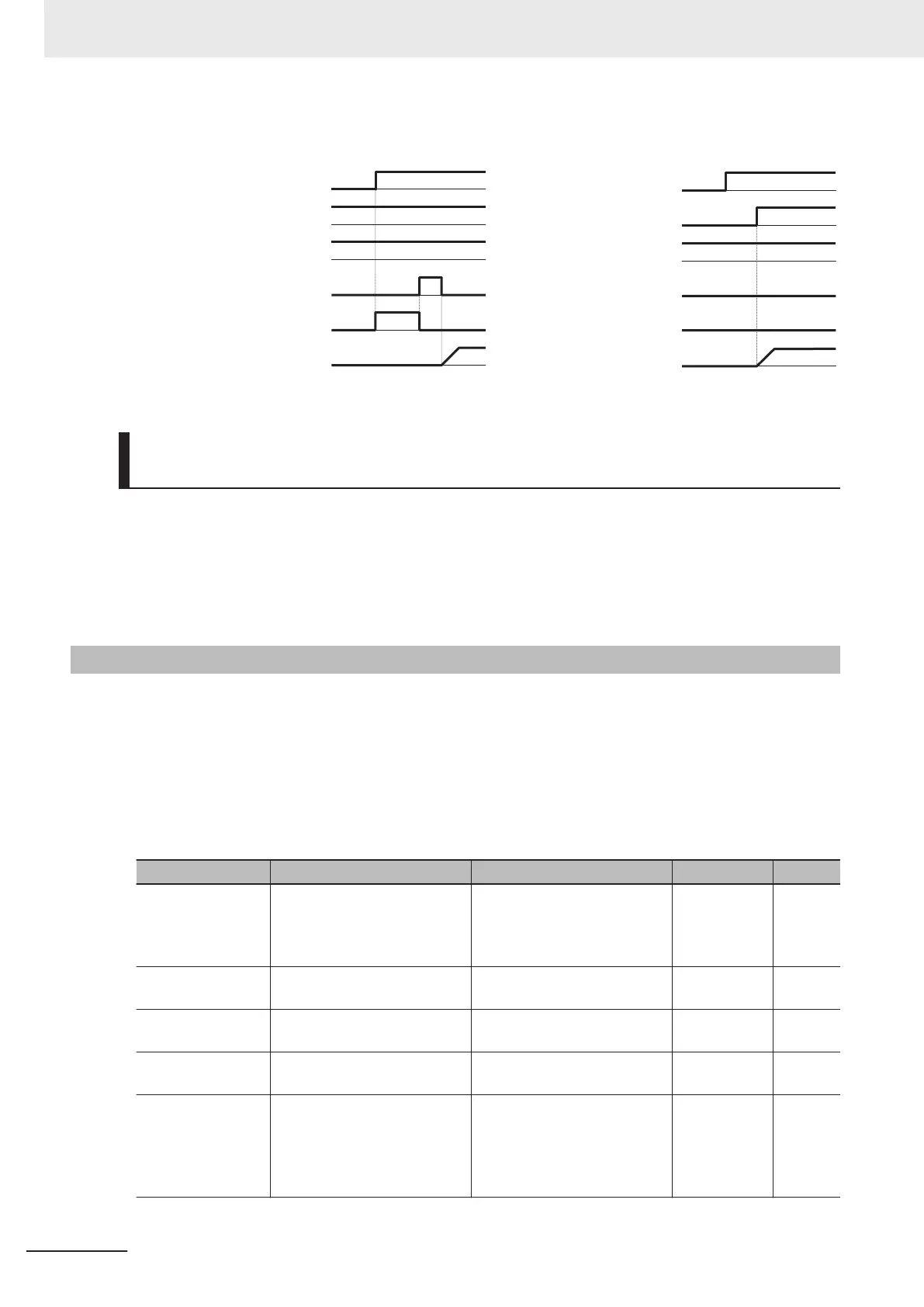

(Example 1) Power ON with RUN command ON
(Reset with Reset (RS))
(Example 2) RUN command after power ON (Nor-
mal operation)
ON
O
N
Power supply
FW input
(Forward)
USP input
RS input
(Reset)
AL output
(Alarm signal)
Output frequency
ONOFF
O
N
OFF
Power supply
FW input
(Forward)
USP input
RS input
(Reset)
AL output
(Alarm signal)
Output frequency
Using the unattended start protection and the Start Check Function
in Combination
• When used in combination with the start check function (3008Hex-61Hex = -61, 2), a run operation
error (alarm code: 24, sub code: 5) is generated by the start check function, and this is given priority.
For this reason, to cancel the run operation error, turn the RUN command OFF and then perform a
reset operation.
• For details on the start check function, refer to 8-7-3 Start Check Function on page 8-69.
8-4-5
Free Run Restart
• A restart is performed when the operation state is returned to while in a free-run state.
• A free-run restart is performed by the restart operation selected at Free Run Stop Restart Operation
Selection (3008Hex-0CHex) when “1: Free run stop” is selected at Stop Selection (3052Hex-2AHex)
and the RUN command is turned ON while in a free-run state or when the free-run command (7:
FRS) terminal is set to OFF and the free-run state is canceled.
• For details on a restart after a momentary power failure, refer to 8-4-2 Restart after Momentary Pow-
er Failure on page 8-41.
Parameter No. Function name Data Default data Unit
3052Hex-2AHex
Free Run Stop Restart Opera-
tion Selection
1: Starting with matching fre-
quency
2: Starting with active match-
ing frequency
2 -
3008Hex-0EHex
Power Interruption Restart
W
ait T
ime
0.1 to 100.0 0.5 s
3008Hex-2FHex
Auto Search Delay Time 2 for
Starting Mode
0.1 to 100.0 1.0 s
3004Hex-18Hex/
3009Hex-0DHex
1st Starting Frequency/2nd
Starting Frequency
0.0 to 60.0 0.5 Hz
3008Hex-0FHex
Deceleration Setting During
Current Limit for Restart Mode
after Power Interruption
0.00: Selected deceleration
time
0.01 to 100.00
999: According to current lim-
iter
32767 Hz/s
8 Other Functions
8-52
M1 Series EtherCAT Type User’s Manual (I670)
