Parameter No. Function name Data
Default da-
ta
Unit
3005Hex-15Hex/
3005Hex-1CHex
Output Terminal [DO1] Function
Selection/Output Terminal
[ROA, ROB] Function Selection
37: OL2 (Overload warning
2)
- -
Related function
Output T
erminal [DO1] ON Delay Time
(3051Hex-0AHex)
Output Terminal [DO1] OFF Delay T
ime
(3051Hex-0BHex)
Output Terminal [ROA, ROB] ON Delay Time
(3051Hex-0EHex)
Output Terminal [ROA, ROB] OFF Delay Time
(3051Hex-0FHex)
*1. To enable switching to the 1st and 2nd control, allocate “12: SET (Set 2nd control)” to either of input terminal
[DI1] to [DI7].
*2. The OFF delay becomes the time obtained by adding 0.1 s to Output Terminal[DO1] OFF Delay Time
(3051Hex-0BHex) and Output T
erminal [ROA, ROB] OFF Delay T
ime (3051Hex-0FHex).

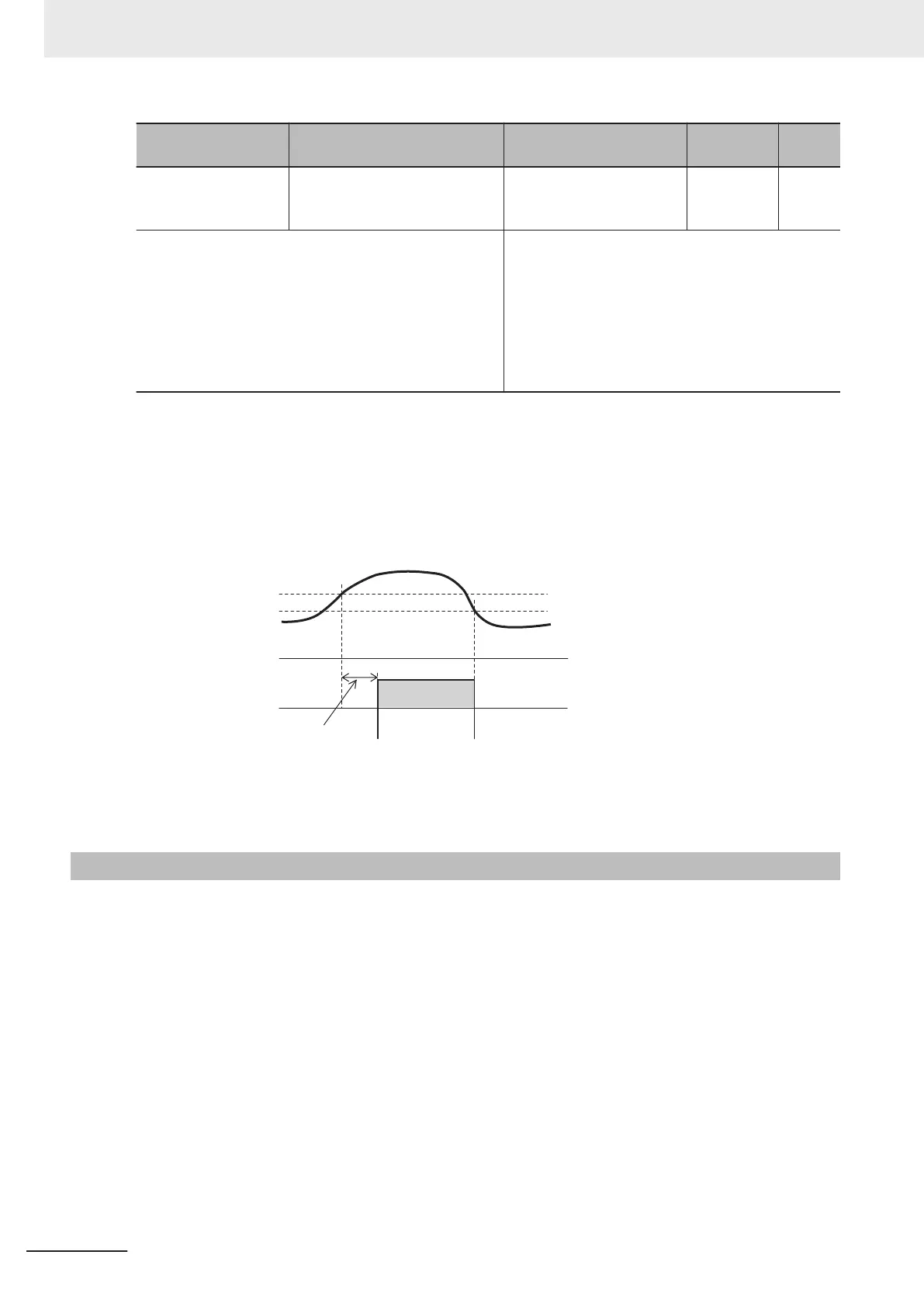

• Overload warning has a hysteresis characteristic of operation level ×10%. The minimum output sig-
nal width of the signal is 100 ms.
OL/OL2
Mi
nimum output
signal width 100ms
Output current
Overload Early Warning Detection Level
(3005Hex-26Hex/3005Hex-38Hex/3005Hex-23Hex)
Overload warning detection level × 0.9
Detection timer
(3005Hex-27Hex/30
05Hex-39Hex/3005
Hex-24Hex)
ON
8-8-2
Anti-regenerative Control Function
• This function controls the output frequency to suppress regenerative energy and avoid overvoltage
tripping.
•
The action of this function can be selected at Anti-regenerative Control Function Selection
(3008Hex-46Hex).
•
This function is temporarily disabled when the AR-CCL terminal is turned ON.
8 Other Functions
8-74
M1 Series EtherCAT Type User’s Manual (I670)
