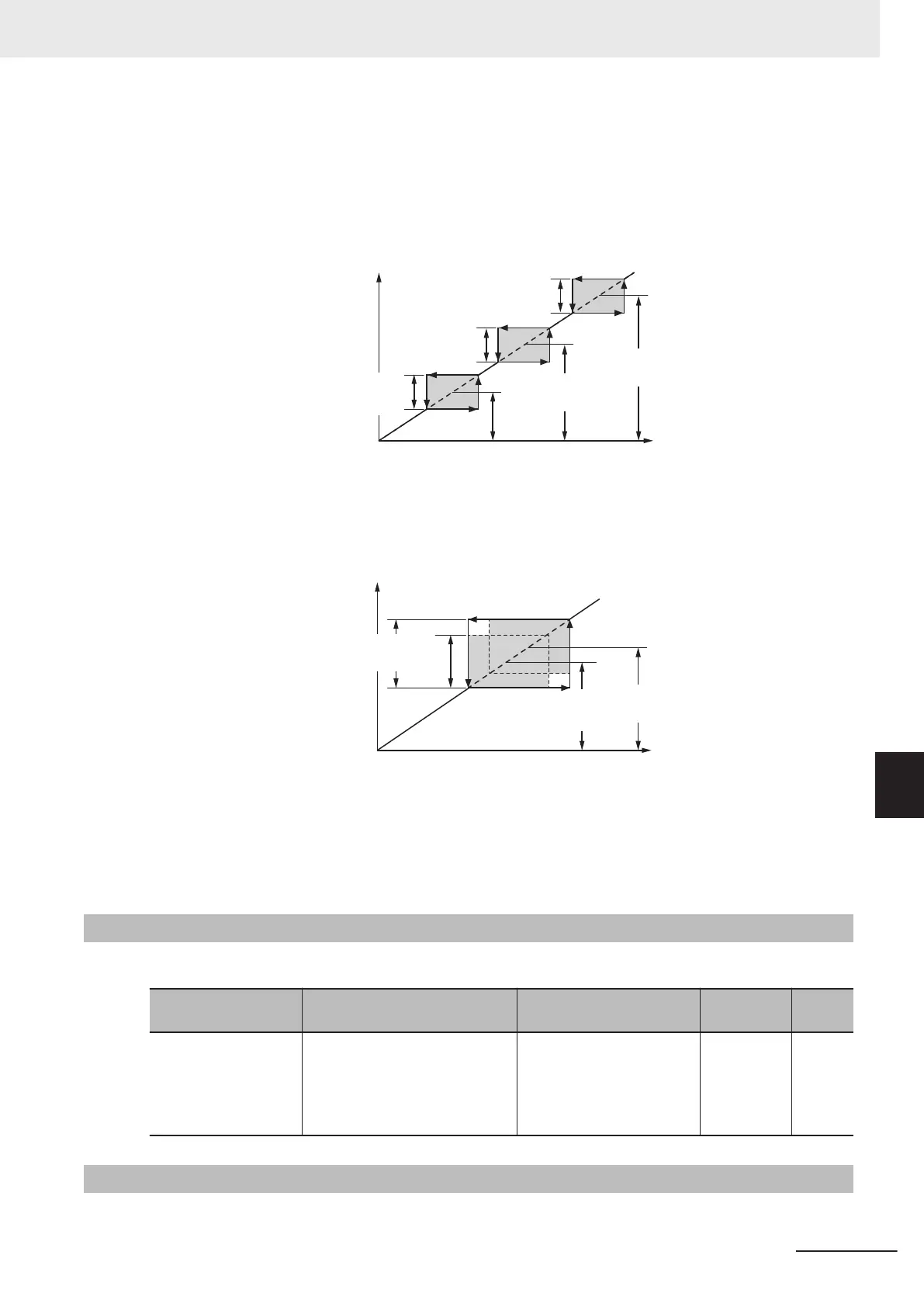

• When the set frequency is increased and the set frequency enters the jump frequency band, the in-
ternal set frequency is kept constant at the lower limit of the jump frequency band. If the set frequen-
cy exceeds the upper limit of the jump frequency band, the internal set frequency reaches the value
of the set frequency. When the set frequency is reduced, the opposite relationship to that during in-
crease is realized.
Internal set frequency
Set frequency
Jump Frequency
Skip Width
(3006Hex-05Hex)
Jump
Frequency 3
(3006Hex-
04Hex)
Jump Frequency
Skip Width
(3006Hex-05Hex)
Jump Frequency
Skip Width
(3006Hex-05Hex)
Jump
Frequency 2
(3006Hex-
03Hex)
Jump
Frequency 1
(3006Hex-
02Hex)
• If two or more jump frequency ranges overlap each other, the lower limit value and the upper limit
value of the overlapped jump frequency become the lower limit and upper limit frequencies of the
actual jump frequency range.
Set frequency
Jump
Frequency 1
(3006Hex-
02Hex)
Internal set frequency
Actual jump
frequency
width
Jump Frequency
Skip Width
(3006Hex-05Hex)
Jump
Frequency 2
(3006Hex-
03Hex)
During acceleration and deceleration, the output frequency changes continuously in accordance with
the acceleration/deceleration time.
Although the jump frequency can be set at three locations, the jump frequency width is common at the
three locations.
8-9-6
RUN Direction Limit Selection
This function limits the rotation direction of the motor output.
Parameter No. Function name Data
Default da-
ta
Unit
3008Hex-09Hex
Reverse Rotation Prevention
Function
0: Disable
1: Reverse rotation inhibit-
ed
2: Forward rotation inhibit-
ed
0 -
8-9-7
Permission of RUN Command
The RUN command is not accepted while the Permission of Run command is OFF.
8 Other Functions
8-103
M1 Series EtherCAT Type User’s Manual (I670)
8-9 Other Operation Functions
8
8-9-6 RUN Direction Limit Selection
