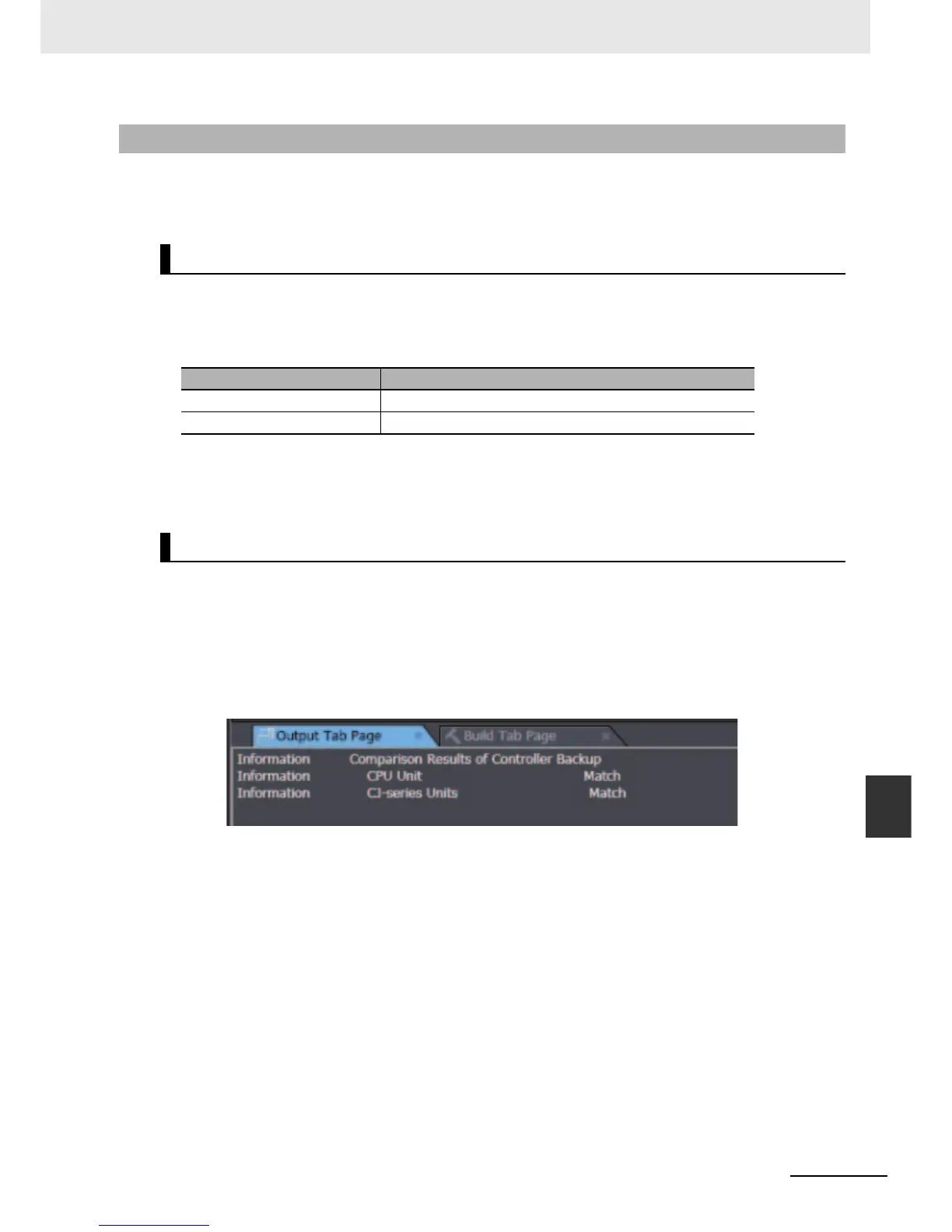

9-5-3 Verify (between Controller and Computer)
The Controller data and the data in a backup file in the specified directory on the computer are com-
pared.
• The Controller data and the data in a backup file in the specified directory on the computer are com-
pared. You can select the data groups to verify from the Sysmac Studio. The conditions for verifying
the data are given in the following table. If you specify all data, all of the following data will be com-
pared.
• The results of the verification are displayed in the dialog box on the Sysmac Studio.
• The value of the _BackupBusy (Backup Function Busy Flag) system-defined variable will be TRUE
during the backup operation.
1
Select Backup • Compare with Backup File from the Tools Menu on the Sysmac Studio.
2
Specify the folder that contains the backup file.
3
Click the Execute Button on the Comparison Confirmation Dialog Box.
The data is compared and the verification results files are created in the folder that contains the
backup file. The comparison results are also displayed in the Output Tab Page.
9-5-3 Verify (between Controller and Computer)
Processing Contents
Data group Verification condition
User program and settings The CPU Unit must be selected.
Units and slaves settings The CJ-series Units and EtherCAT slaves must be selected.
Procedure
To Next Page
