11-9
11 Example of Actual Application Procedures
NJ-series CPU Unit Software User’s Manual (W501)
11-2 Overview of the Example Procedure
11
11-2-6 Checking Operation and Starting Operation on the Actual System
Go online with the Controller, download the project, check the wiring and perform test operation before
you start actual operation.
1 Turn ON the power supply to NJ-series Controller.
2 Connect the computer and the CPU Unit with a USB cable.
3 Select Communications Setup from the Controller Menu. Select the connection method for the
connection configuration in the Connection Type Field.
4 Select Online from the Controller Menu.
Select Synchronize from the Controller Menu and download the project to the Controller.
Note Use the Synchronize Menu of the Sysmac Studio to upload and download the project.
Check the wiring by performing forced-refreshing with user-specified values from the I/O Map or Ladder
Editor.

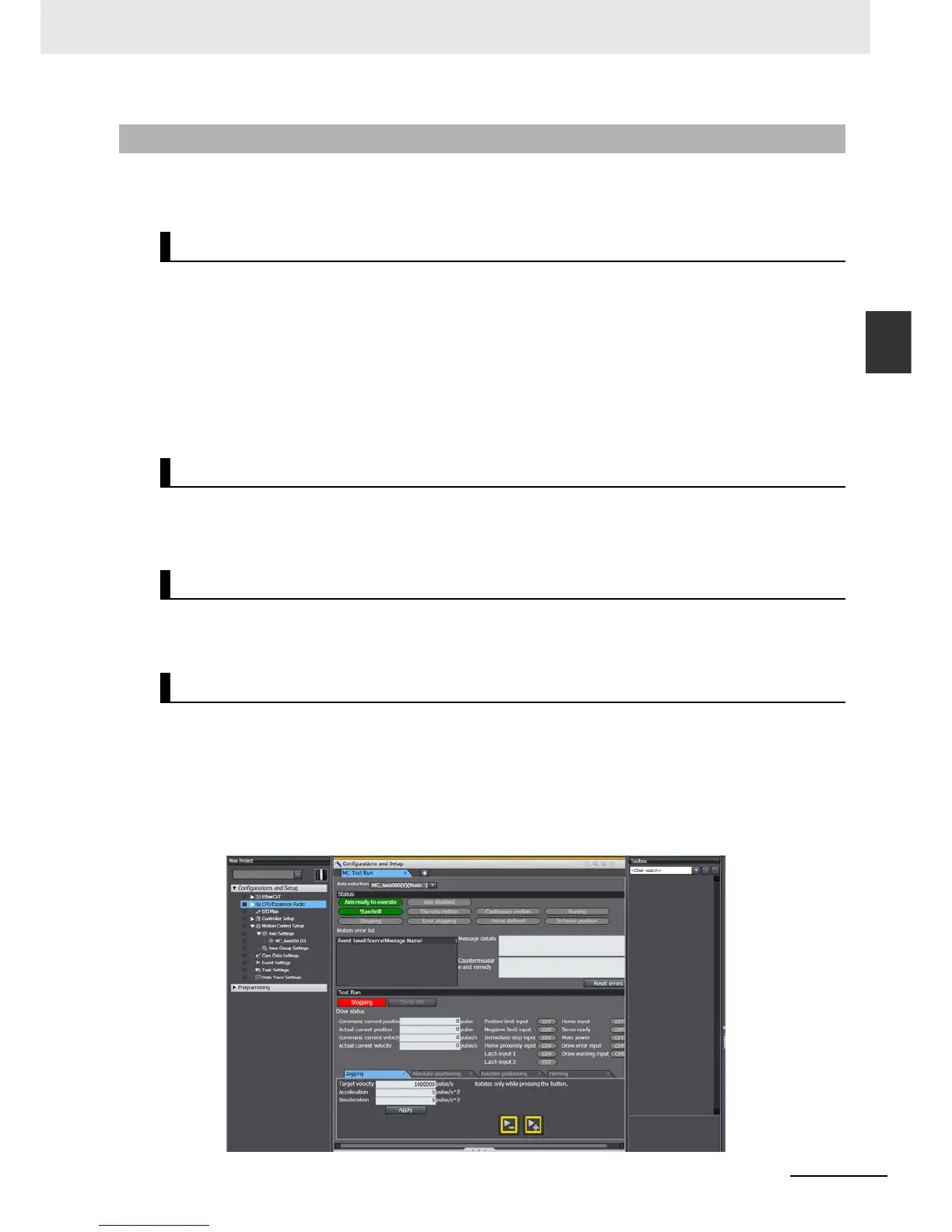

1 Open the MC Test Run Dialog Box.
2 Change the CPU Unit to PROGRAM mode.
3 Monitor input signals on the display to check the wiring.
4 Jog the axis from the display.
11-2-6 Checking Operation and Starting Operation on the Actual System
Going Online
Downloading the Project with the Synchronize Menu
Checking Wiring
MC Test Run
