2 CPU Unit Operation
2-18
NJ-series CPU Unit Software User’s Manual (W501)
2-4 Sequence Control and Motion
Control
This section describes the sequence control and motion control systems that are used by the CPU Unit.
The NJ-series CPU Unit can perform both sequence control and motion control.
You execute sequence control with instructions other than motion control instructions in the user pro-
gram. Sequence control is for EtherCAT slaves and CJ-series Units that are not assigned to axes. Con-
trol is performed by the PLC Function Module and the EtherCAT Master Function Module.
You perform motion control with motion control instructions in the user program for EtherCAT Servo
Drive and encoder input slaves that are assigned to axes. Control is performed by the PLC Function
Module, Motion Control Function Module, and the EtherCAT Master Function Module.

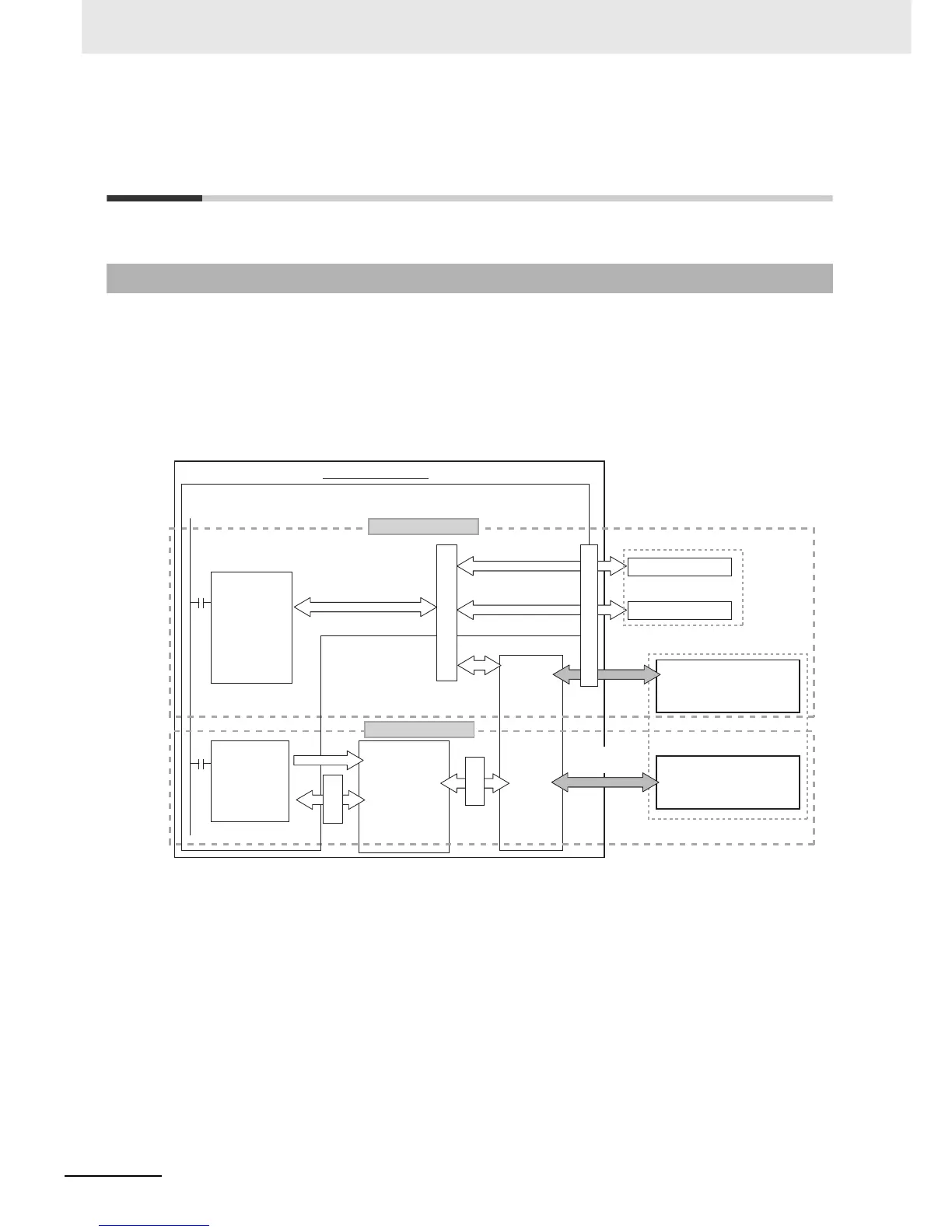

2-4-1 Overview of Control
NJ-series CPU Unit
Executed.
Basic I/O Unit
Special Unit
EtherCAT slaves
CJ-series Units
EtherCAT
Master
Function
Module
Motion
control
instruction
Motion
control
processing
Axis variable
Command
Executed.
PLC Function Module
User program execution
Sequence control
Motion control
Axis variable
Device variables
EtherCAT
communications
Instruction
other than
a motion
control
instruction
I/O ports
PDO
communi-
cations
Servo Drive, encoder
input, and general-
purpose slaves that are
not assigned to axes
Servo Drive and encoder
input slaves that are
assigned to axes
Motion Control
Function
Module
