10-1 Communications System
Overview
10
10-1-1 Introduction

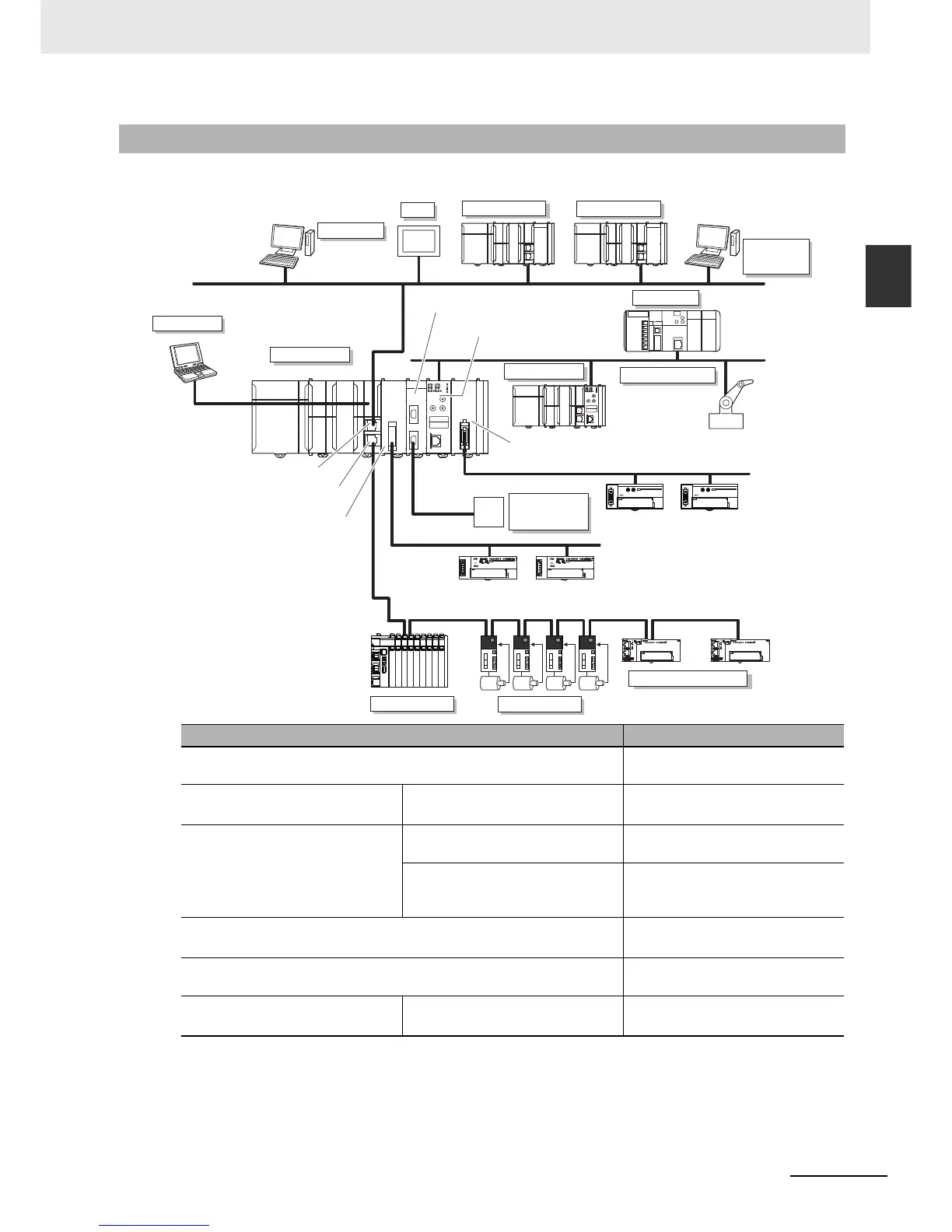

You can use the NJ-series System to build the communications system shown below.
*1 Use an EtherNet/IP Unit with unit version 2.1 or later. Also use a CPU Unit with unit version 1.01 or later and
Sysmac Studio version 1.02 or higher. Refer to A-12 Version Information for information on upgrades.
*2 To perform troubleshooting from an NS-series PT, connect the PT to the built-in EtherNet/IP port on the CPU
Unit.
10-1-1 Introduction
Connection Connection method
Sysmac Studio connection Use USB or the built-in EtherNet/IP
port.
Connections between Controllers Connections with NJ-series Control-
ler or CJ2 CPU Unit
Use the built-in EtherNet/IP port or
a port on an EtherNet/IP Unit
*1
Connections between Controllers
and slaves
Connections to Servo Drives and
general-purpose slaves
Use the built-in EtherCAT port.
I/O controls Mount a DeviceNet Unit and use
DeviceNet or mount a CompoNet
Master Unit and use CompoNet.
Connections to HMIs Use the built-in EtherNet/IP port or
a port on an EtherNet/IP Unit
*1, *2
Connections for serial communications Mount a Serial Communications
Unit.
Connections to servers Connections to BOOTP servers,
DNS servers, or NTP servers
Use the built-in EtherNet/IP port or
a port on an EtherNet/IP Unit
*1, *2
Sysmac Studio
Sysmac Studio
EtherNet/IP EtherNet/IP
USB
DeviceNet
EtherCAT
EtherNet/IP
REMOTE
TERMINAL
01234567 8 9
10 11
12
13
14
15
OUT
CRT1
MS
NS
WORD
NODE ADR
CompoNet
Example: CompoNet Master Unit
CPU Unit
NJ-series Controller
Built-in EtherCAT port
Power Supply Unit
NJ-series Controller
Built-in EtherNet/IP port
Example: Serial Communications Unit
Example: DeviceNet Unit
Serial
General-purpose
device with serial
communications
NJ-series Controller
CJ2 Series
Example: EtherNet/IP Unit
EtherNet/IP slave
HMI
NTP server
BOOTP server
DNS server
NJ-series Controller
Servo DrivesSlave Terminal
General-purpose slaves
To Next Page
