11 Example of Actual Application Procedures
11-8
NJ-series CPU Unit Software User’s Manual (W501)
Note For a ladder diagram, press the R Key and create the following rungs.
Double-click Task Settings under Configurations and Setup.
• In the Task Settings, set the task period and execution condition for the primary periodic task from the
pulldown list.
• In the I/O Control Task Settings, select the task name to which to assign each Unit and slave.
• In the Program Assignment Settings, assign the programs to the primary periodic task or the priority-
16 periodic task.
Select Build from the Project Menu.
Simulation is used to perform desktop debugging.
Check the task execution times and the real processing times of tasks. Review the task design as
required.
Select Run in Execution Time Estimation Mode from the Simulation Menu. The Simulator (i.e., the
virtual Controller) starts. An online connection is created automatically.

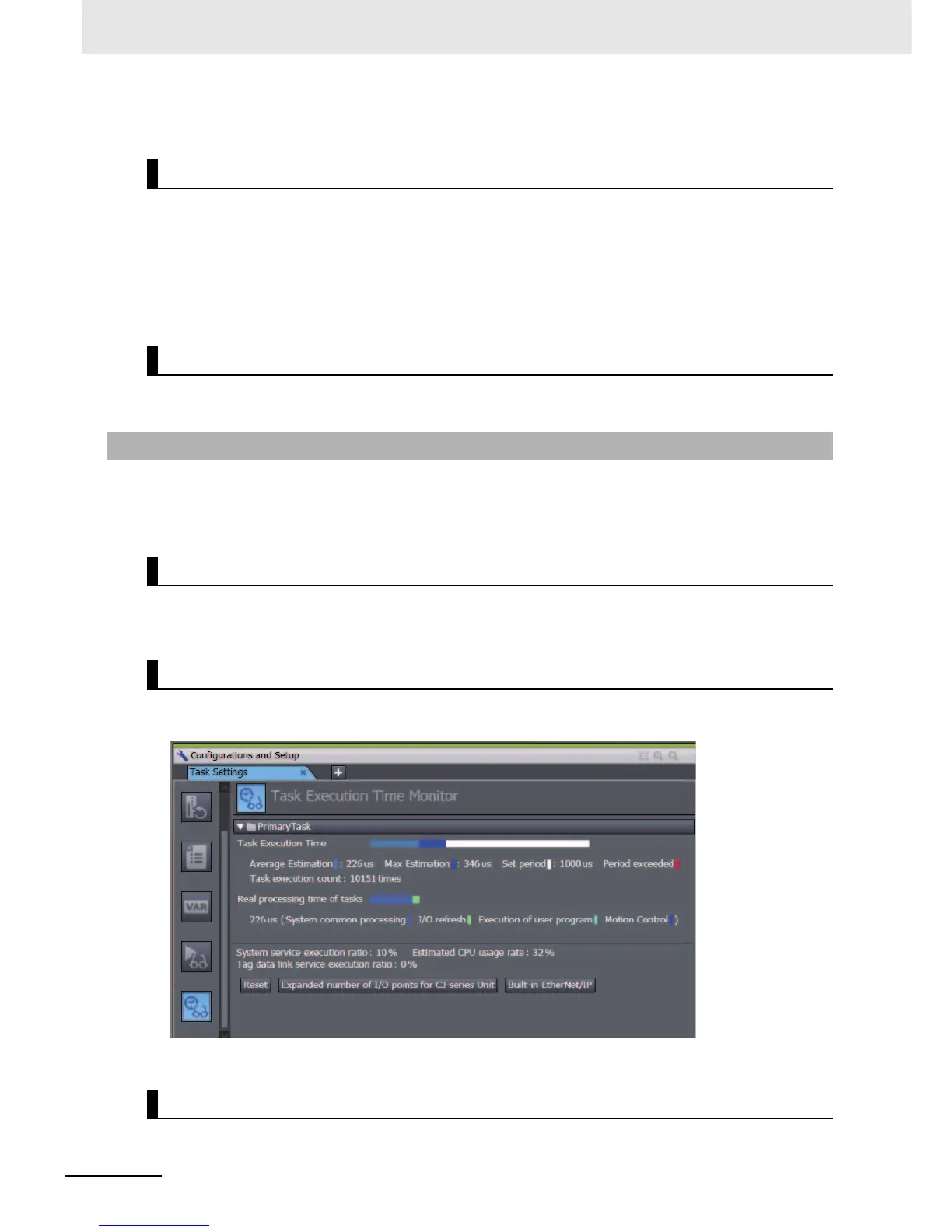

Double-click Task Settings under Configurations and Setup. Check to see if the task execution times
in the Task Execution Time Monitor exceed the task periods.
If necessary, review the task configuration, program assignments, and task periods.
Select Save As from the File Menu.
Set Up the Tasks.
Build the Project.
11-2-5 Simulation with the Sysmac Studio
Starting the Simulator and Connecting to It
Checking the Task Execution Time on the Simulator
Saving the Project
To Next Page
