3 I/O Ports, Slave Configuration, and Unit Configuration
NJ-series CPU Unit Software User’s Manual (W501)
3-1 Procedure to Create the Slave and Unit
Configurations
3
Step 1 Create the EtherCAT Slave Configuration (if EtherCAT is used) and the
Unit Configuration (if CJ-series Units are used).
Reference
• Create the EtherCAT Slave Configuration.
• Create the Unit Configuration.
3-2-1 Creating
the EtherCAT
Slave Configu-
ration
3-2-2 Creating
the Unit Config-
uration
Step 2 Assign device variables to I/O ports.
Reference
• Register the device variables.
2-3-1 Types of
Variables
3-3 I/O Ports
and Device
Variables

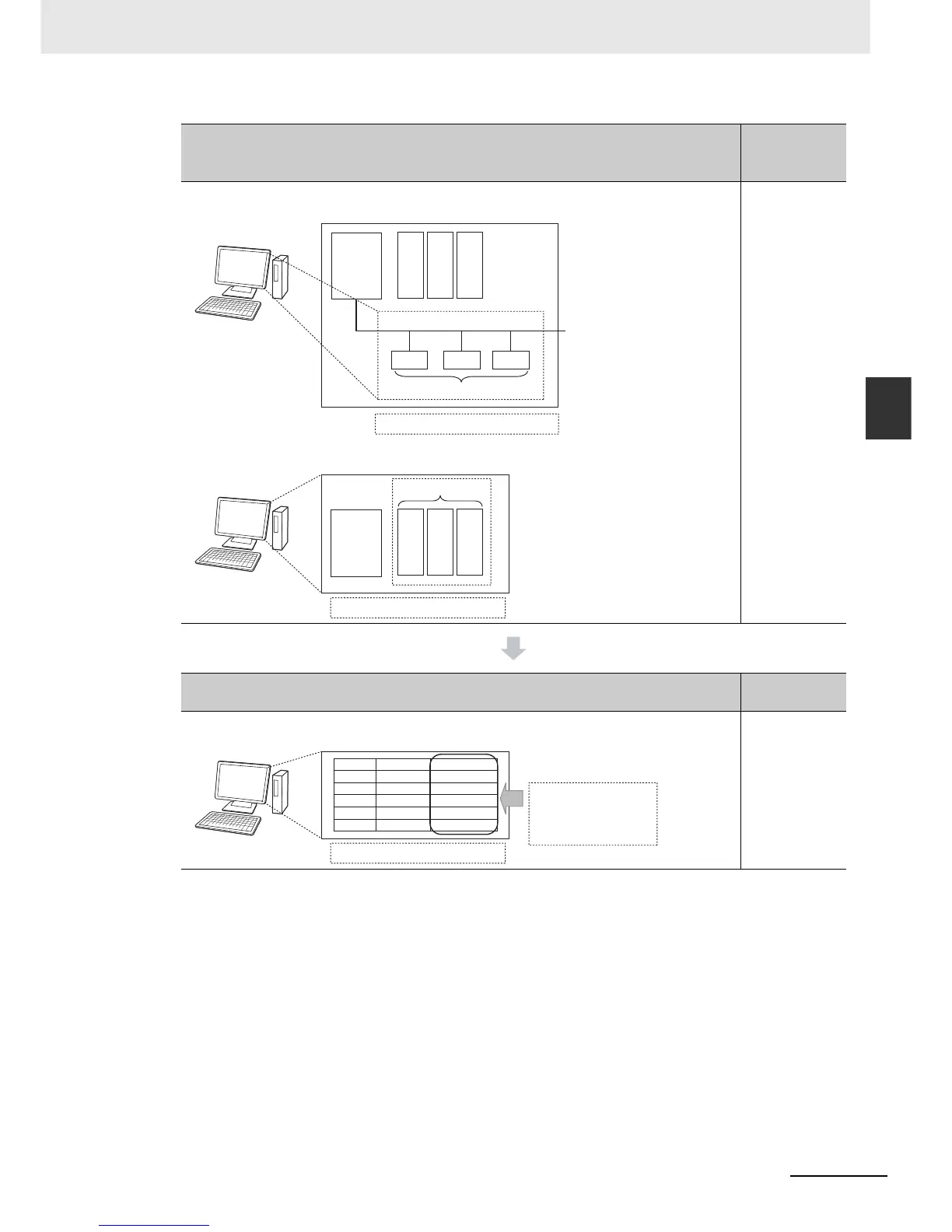

EtherCAT
Sysmac Studio
Slave configuration information
CPU
Unit
EtherCAT slave configuration
Created with the EtherCAT slave configuration settings.
Sysmac Studio
Unit configuration
Unit configuration information
CPU
Unit
Created in the Unit Configuration and Unit Setup
Sysmac Studio
Registering the device variables
Assign a new device
variable or a variable
from a variable table for
each I/O port.
Slave/Unit
I/O port
Device variable
Created in the I/O Map.
