Sony HDCU2500 Maintenance Manual

4-6. Main Frame
4-6-1. HIF-62 Board
Preparation
1. Remove the rear panel assembly. (Refer to “4-4-1. Removal and Installation of Rear Panel Assembly”)
Procedure

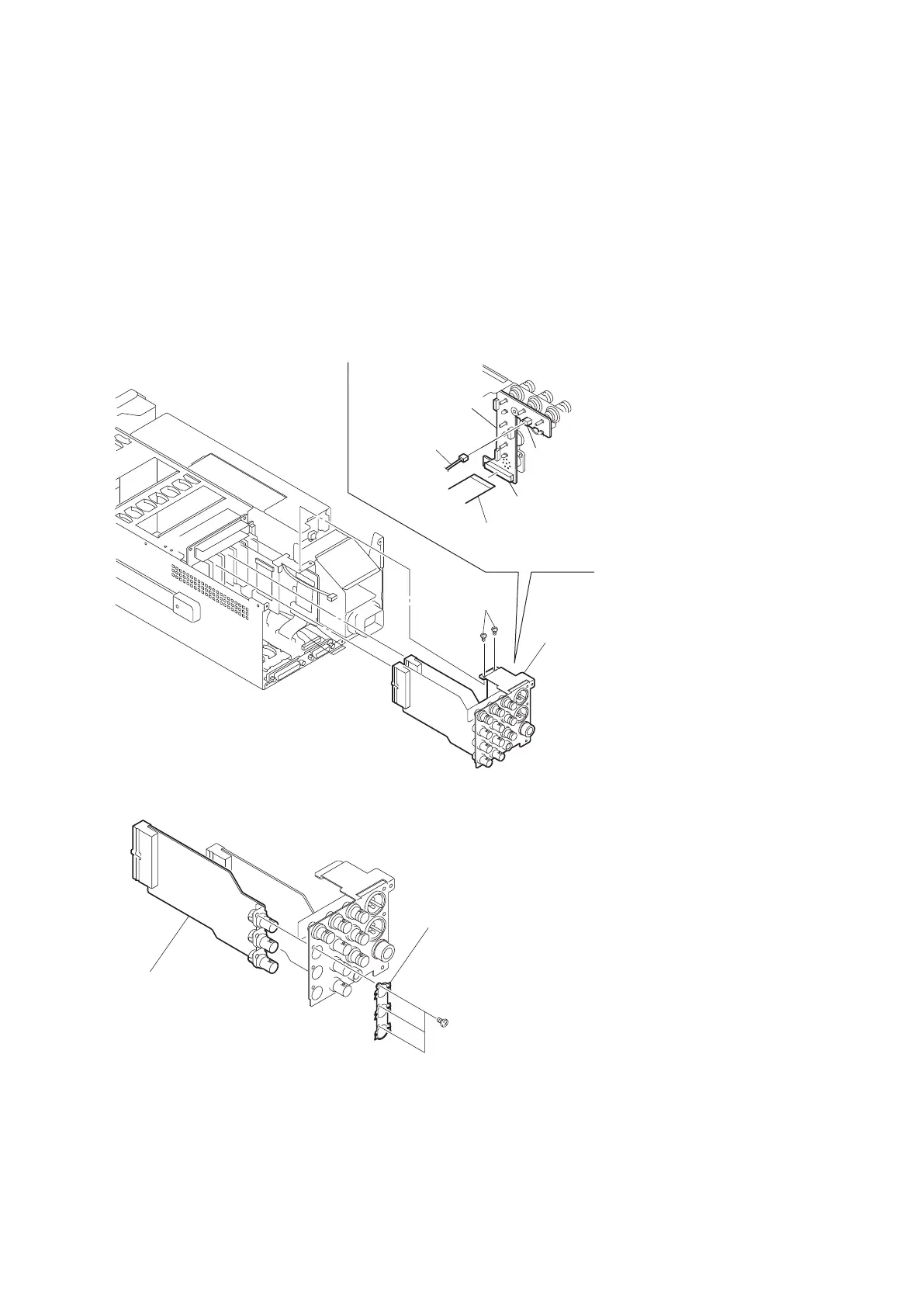

1. Disconnect the harness from the connector CN12 on the CN-2675G board.
2. Remove the two screws, and remove the rear sub assembly (included in the HIF-62 board and the SDI-99 board).
3. Disconnect the flexible flat cable from the connector CN11 on the CN-2675G board.
Harness
CN-2675 board
Flexible flat cable
Rear sub
assembly
B3 x 5
CN11
CN12
4. Remove the three screws to detach the shield finger (BNC) and the HIF-62 board.
Shield finger
HIF-62 board
B3 x 5
5. Install the removed parts by reversing the steps of removal.
4-6-2. SDI-99 Board
Preparation
1. Remove the rear panel assembly. (Refer to “4-4-1. Removal and Installation of Rear Panel Assembly”)
HDCU2500
4-21
