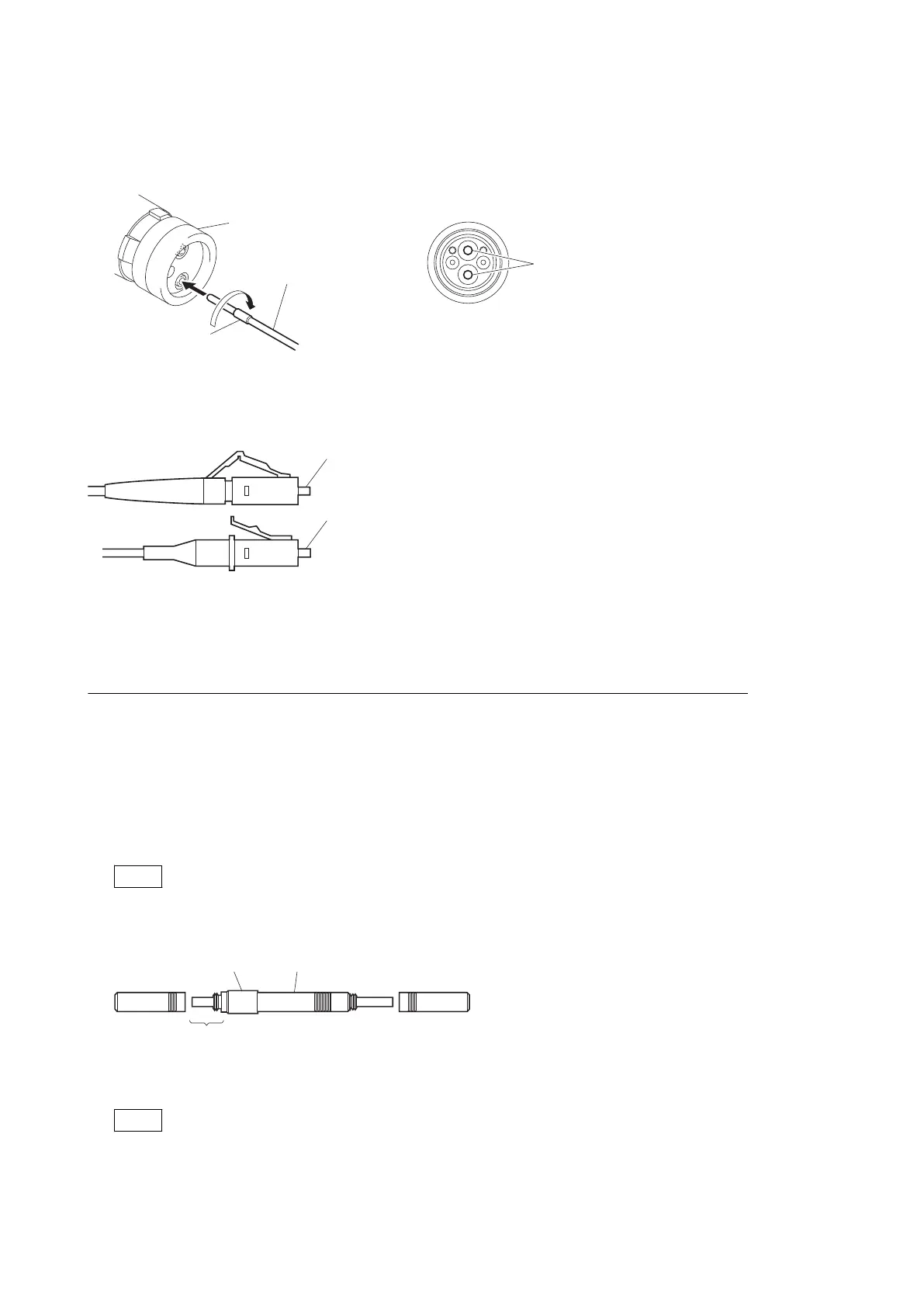

3. While pressing the optical connector cleaner against the tip of the white optical contact, rotate the optical connector
cleaner by 4 to 5 turns clockwise.
Holding the optical connector cleaner at around its support facilitates to apply the pressure.
Optical contacts (white)
Optical connector cleaner
Support
Alignment sleeve
[LC type connector]
Clean the tip of the white optical contacts using the optical connector cleaner.
Optical contact (white)
Optical contact (white)
1-14-2. When the Optical Connector Cleaner (Commercially Available) is not
Available
Cleaning connectors/cables of LEMO
Clean the LEMO connectors and cables using the following procedure.
Tools required
• Alignment sleeve remover HC-001 (for female connector)
Sony Part No,: J-6480-010-A
or DCC.91.312.5LA or manufactured by LEMO, or equivalent
Note
Insert the shorter nose end when removing/installing the alignment sleeve. Grasp not the shock absorber portion
of the remover but the handle in use.
Shock absorber portion
Insert the shorter nose end
Handle
• Alcohol (commercially available)
• Cotton swabs (commercially available)
Note
Use a cotton swab whose diameter is about 4 mm. If a cotton swab whose diameter exceeds 5 mm is used, the cotton
swab cannot be inserted into the end of the connector and the tip of the optical contact cannot be cleaned.
HDCU2500
1-34
