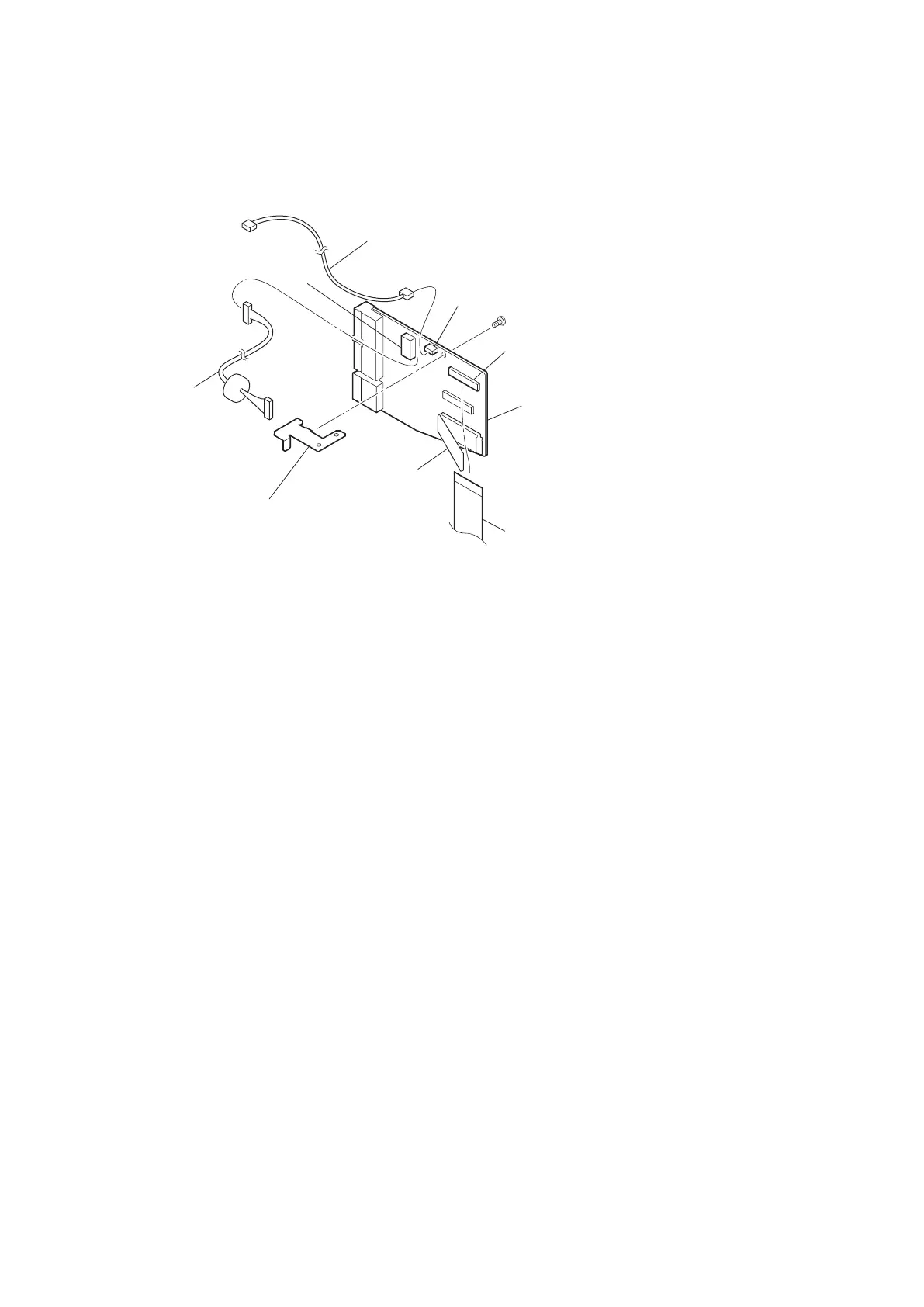

3. Disconnect the harness (REF) from the connector CN101 on the VIF-52 board.
4. Disconnect the harness (ETHER) from the connector CN4 on the VIF-52 board.
5. Remove the screw to detach the VIF stopper (124).
6. Open the clamp, and disconnect the flexible flat cable from the connector CN3 on the VIF-52 board.
CN4
CN101
CN3
VIF-52 board
B3 x 5
Clamp
VIF stopper (124)
Flexible flat cable
Harness (REF)
Harness (ETHER)
7. Install the removed parts by reversing the steps of removal.
4-6-7. ADO-12 Board
Preparation
1. Remove the rear panel assembly. (Refer to “4-4-1. Removal and Installation of Rear Panel Assembly”)
2. Remove the rear sub assembly (included in the HIF-62 board and the SDI-99 board) . (Refer to “4-6-1. HIF-62
Board”)
3. Remove the VIF-52 board. (Refer to “4-6-6. VIF-52 Board”)
Procedure
1. Disconnect the flexible flat cable from the connector CN4 on the CNB-29A board.
2. Disconnect the ADO-12 board from the connector on the MB-1181 board.
HDCU2500
4-26
