Sony HDCU2500 Maintenance Manual

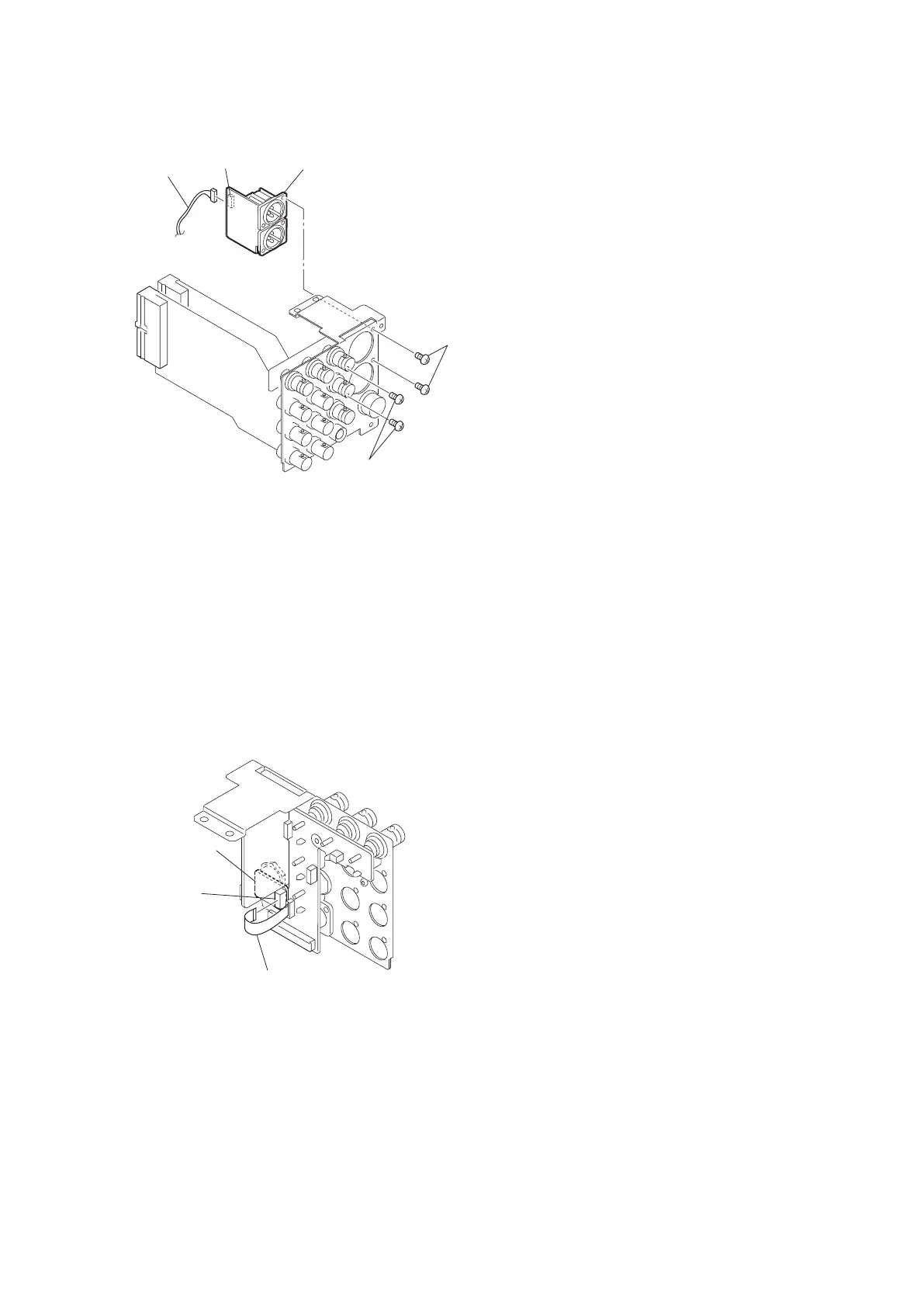

2. Remove the four screws to detach the CN-2676 board.
P2.6 x 5
CN-2676 board
CN3
Harness (MIC)
P2.6 x 5
3. Install the removed parts by reversing the steps of removal.
4-6-5. CN-2677G Board
Preparation
1. Remove the rear panel assembly. (Refer to “4-4-1. Removal and Installation of Rear Panel Assembly”)
2. Remove the rear sub assembly (included in the HIF-62 board and the SDI-99 board). (Refer to “4-6-1. HIF-62
Board”)
Procedure
1. Disconnect the flexible flat cable from the connector CN2 on the CN-2677G board.
CN2
CN-2677G board
Flexible flat cable
HDCU2500
4-24
