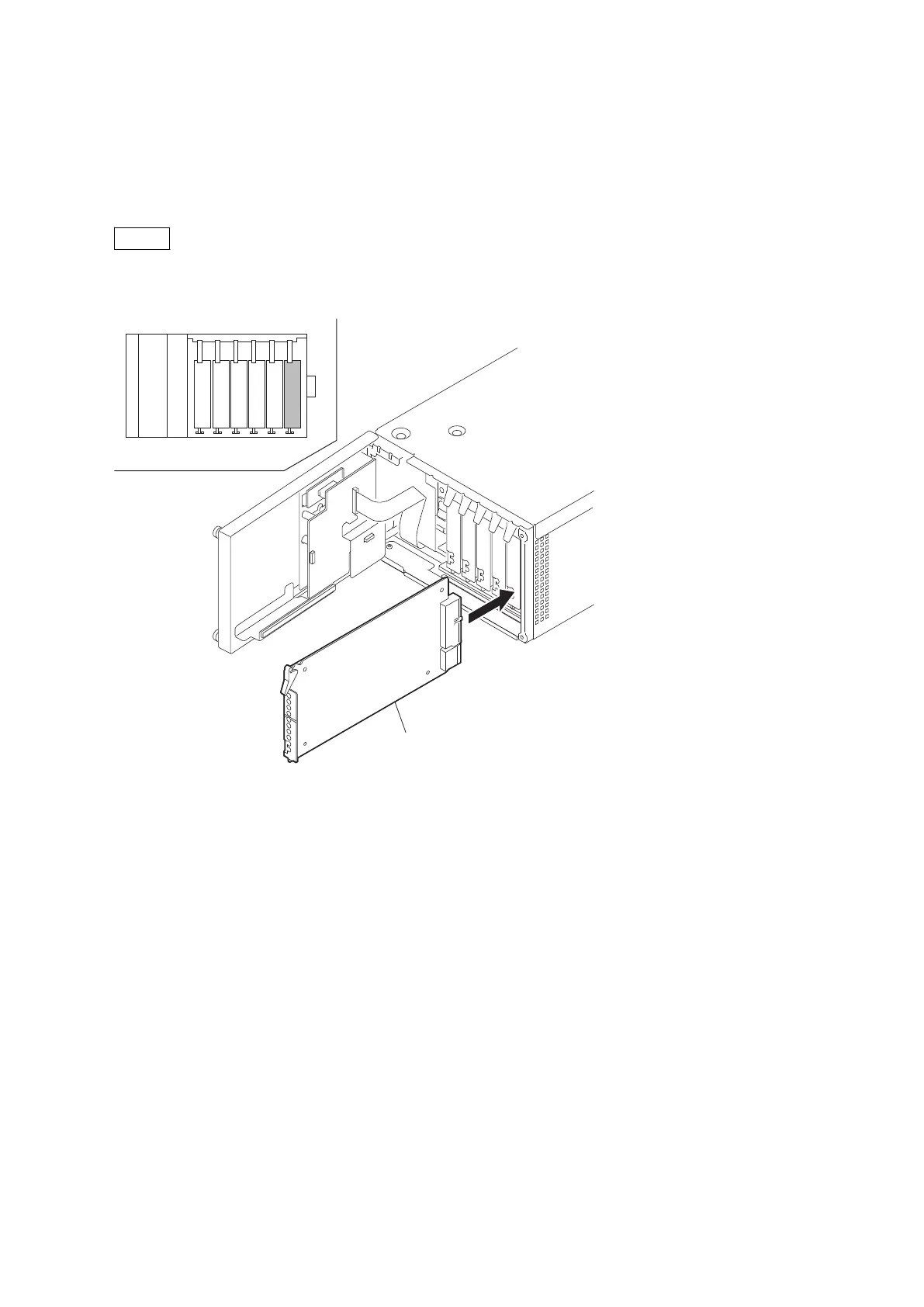

1-11-3. Front Side (HKCU1001/1003)

1. Loosen the two coin screws, and open the front panel. (Refer to “4-3-1. Removal and Installation of Front

Panel”)

2. Insert the EN-159A board or EN-159B board into slot 3.

Notes

• Put the board on the groove at the bottom of the slot and then push it straight.

• Check that the board is securely connected to the MB-1181 board.

123

Slot

EN-159A board (HKCU1001)

EN-159B board (HKCU1003)

3. Close the front panel and secure it with two coin screws.
