Sony HDCU2500 Maintenance Manual

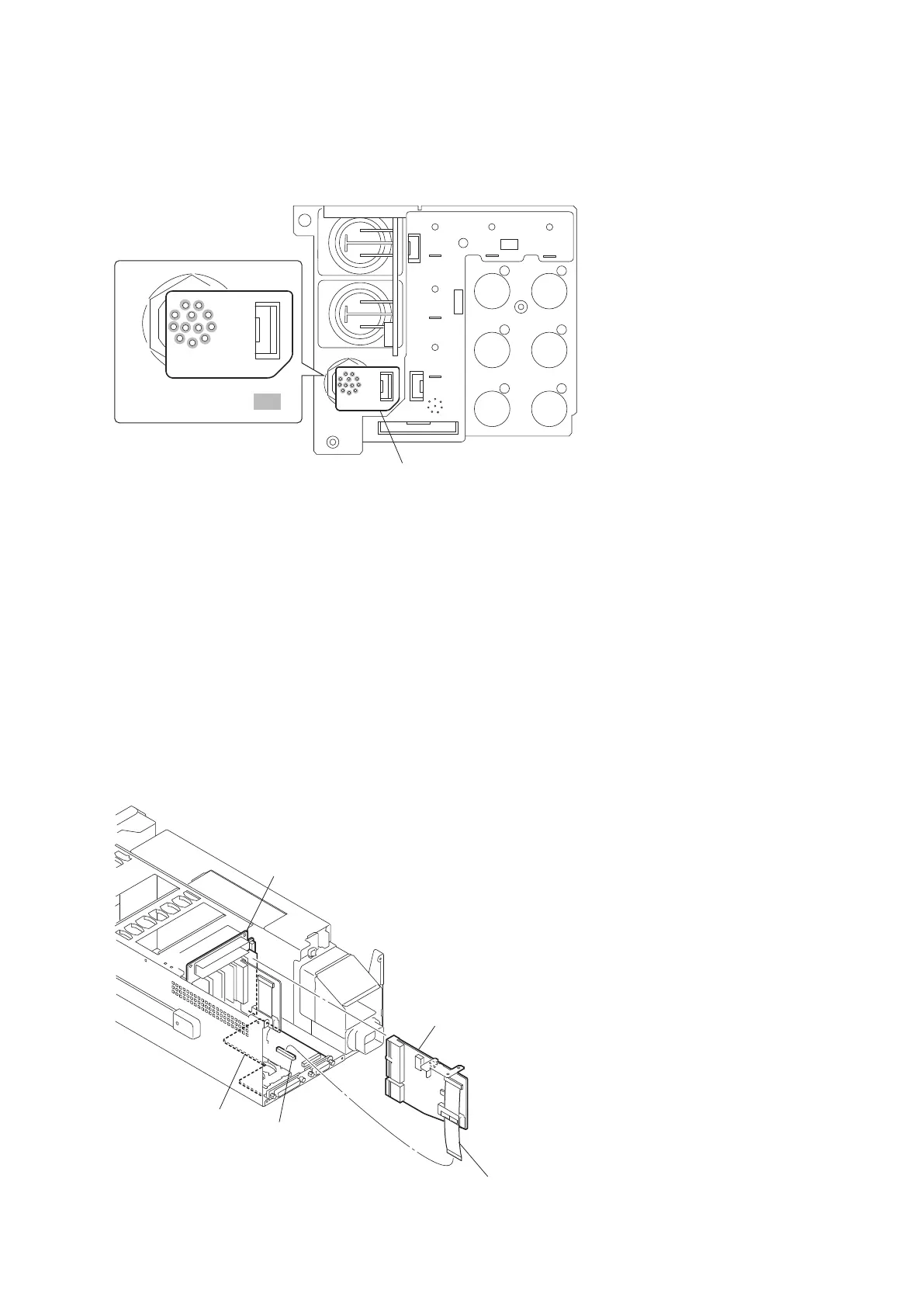

2. Unsolder the round type connector (12P) to detach the CN-2677G board.
CN-2677G board
Remove solder .
3. Install the removed parts by reversing the steps of removal.
4-6-6. VIF-52 Board
Preparation
1. Remove the rear panel assembly. (Refer to “4-4-1. Removal and Installation of Rear Panel Assembly”)
2. Remove the rear sub assembly (included in the HIF-62 board and the SDI-99 board) . (Refer to “4-6-1. HIF-62
Board”)
Procedure
1. Disconnect the flexible flat cable from the connector CN5 on the CNB-29A board.
2. Disconnect the VIF-52 board from the connector on the MB-1181 board.
MB-1181 board
CNB-29A board
Flexible flat cable
VIF-52 board
CN5
HDCU2500
4-25
