Sony HDCU2500 Maintenance Manual

• Specification of ASPECT CTL
The following shows the MIC REMOTE settings in
OTHERS (M04) of the MAINTENANCE menu.
- For MIC REMOTE: MIC1, 2
CONT1 CONT2 ASPECT CTL
L H SQ (16 : 9)
H H EC (4 : 3)
L L INTERNAL set
H L LB
- For MIC REMOTE: MIC1, 2
Note
For specification of GAIN, refer to “Specification
of CHU MIC AMP GAIN”.
AMP GAIN of MIC2
12 pin: CONT2
13 pin: CONT1
14 pin: CONT0
- For MIC REMOTE: MIC+NETWORK
CONT (14 pin) CNS MODE
H MCS, BRIDGE, or LEGA-
CY
L Forcible LEGACY
Note
12 pin and 13 pin are no connection

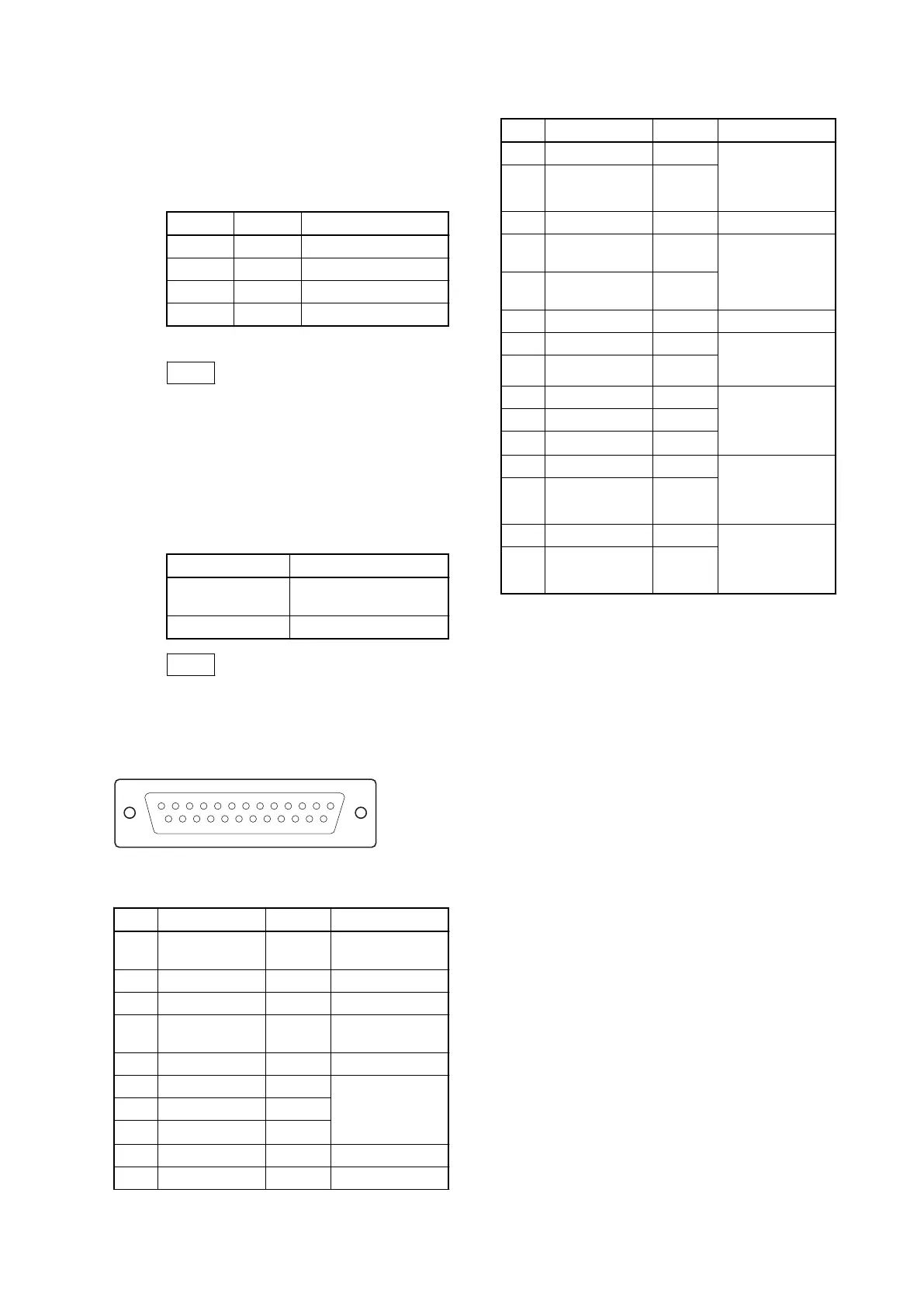

17. INTERCOM/TALLY/PGM
25 14
113
- External View -
D-sub 25-pin, Female
(0 dBu = 0.775 Vrms)
No. Signal I/O Specifications
1 ENG (R) (X) OUT O ENG SYSTEM RE-
CEIVE
2 ENG (R) (Y) OUT O 0 dBu BALANCED
3 ENG (G) — GND for ENG
4 ENG (T) (X) IN I ENG SYSTEM
TALK
5 ENG (T) (Y) IN I 0 dBu BALANCED
6 PGM1 (X) IN I –20 dBu/0 dBu/+4
dBu
(Selectable with
CCU Menu)
7 PGM1 (Y) IN I
8 PGM1 (G) IN I
9 GND — GND for AUX
10 AUX3 — —
Continued
No. Signal I/O Specifications
11 R TALLY (X) IN I ON : 24 Vdc, TTL
(H), SHORT
OFF : 0 Vdc, TTL
(L), OPEN
12 R TALLY (Y) IN I
13 GND — CHASSIS GND
14 PROD (R) (X)
OUT
O PROD SYSTEM
RECEIVE 0 dBu
BALANCED
15 PROD (R) (Y)
OUT
O
16 PROD (G) — GND for PROD
17 PROD (T) (X) IN I PROD SYSTEM
TALK
0 dBu BALANCED
18 PROD (T) (Y) IN I
19 PGM2 (X) IN I –20 dBu/0 dBu/+4
dBu
(Selectable with
CCU Menu)
20 PGM2 (Y) IN I
21 PGM2 (G) IN —
22 Y TALLY (X) I ON : 24 Vdc, TTL
(H), SHORT
OFF : 0 Vdc, TTL
(L), OPEN
23 Y TALLY (Y) I
24 G TALLY (X) IN I ON : 24 Vdc, TTL
(H), SHORT
OFF : 0 Vdc, TTL
(L), OPEN
25 G TALLY (Y) IN I
1-3-2. Connector Input/Output Signals of
HKCU2007
Output Signals
1. SDI OUT 1 to 4
• BNC type
• 3G-SDI: SMPTE 424M/425M Level-B compliant
0.8 Vp-p, 75 Ω, 2.970 Gbps/2.967Gbps
• HD-SDI: BTA-S004, SMPTE 292M compliant
0.8 Vp-p, 75 Ω, 1.485 Gbps/1.4835 Gbps
• 3G-SDI/HD-SDI selectable
• Character ON/OFF selectable (connectors 3/4)
1-3-3. Connector Input/Output Signals of
HKCU1001
Output Signals
1. VBS 1, 2
• BNC type
• VBS 1.0 V p-p, 75 Ω
2. PIX OUT
• BNC type
HDCU2500
1-6
