Sony HDCU2500 Maintenance Manual

Section 3
Menu Settings
This unit can display the status of this unit and entire system on the video monitor connected to the PIX OUT connector
(VDA-64A/64B board) of HKCU1001/1003 to check and change settings.
3-1. Preparations

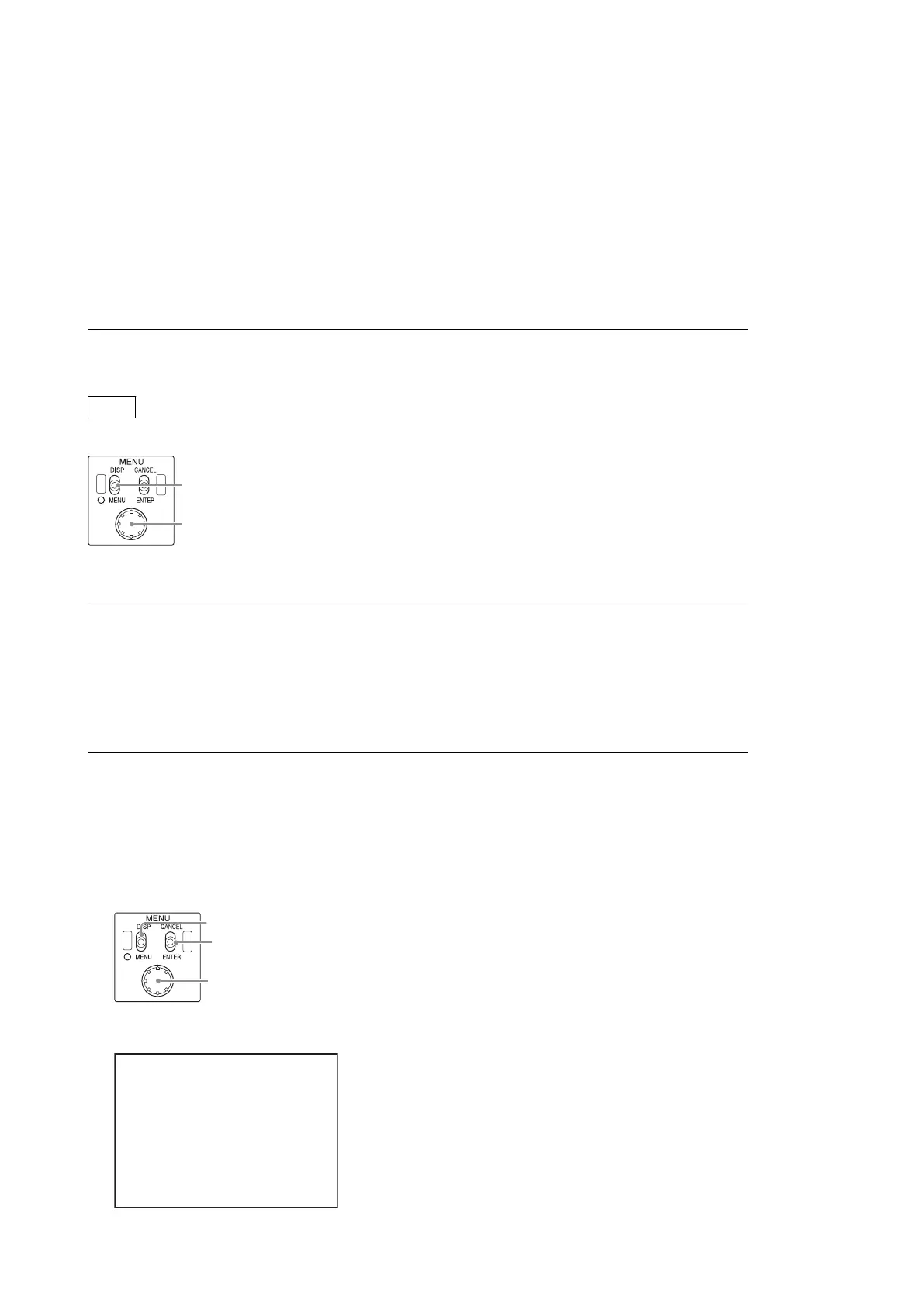

3-1-1. Display/Hide the Status Screen
To display the status screen
Set the DISP/MENU lever to the DISP position
Note
Turning the CONTROL knob changes the displayed page.
CONTROL knob
DISP/MENU lever
To exit the status screen display
In status screen display mode, set the DISP/MENU lever to the DISP position.
3-1-2. Starting/Exiting the Maintenance Mode
Starting
1. When the status screen or menu screen is displayed, hide the screen.
• When the status screen is displayed, turn the DISP/MENU lever to the DISP side once.
• When the menu screen is displayed, turn the DISP/MENU lever to the MENU side once.
2. While pressing the CONTROL knob, turn the CANCEL/ENTER lever quickly to the ENTER side twice.
3. Turn the DISP/MENU lever to the MENU side within two seconds.
CONTROL knob
CANCEL/ENTER leve
r
DISP/MENU lever
4. Check that the following screen appears. If it does not appear, repeat steps 1 to 3.
** CCU MENU **
SYSTEM OPERATION
CCU CONFIGURATION
NETWORK SETTINGS
VE OPERATION
MAINTENANCE
→
HDCU2500
3-1
