Sony HDCU2500 Maintenance Manual

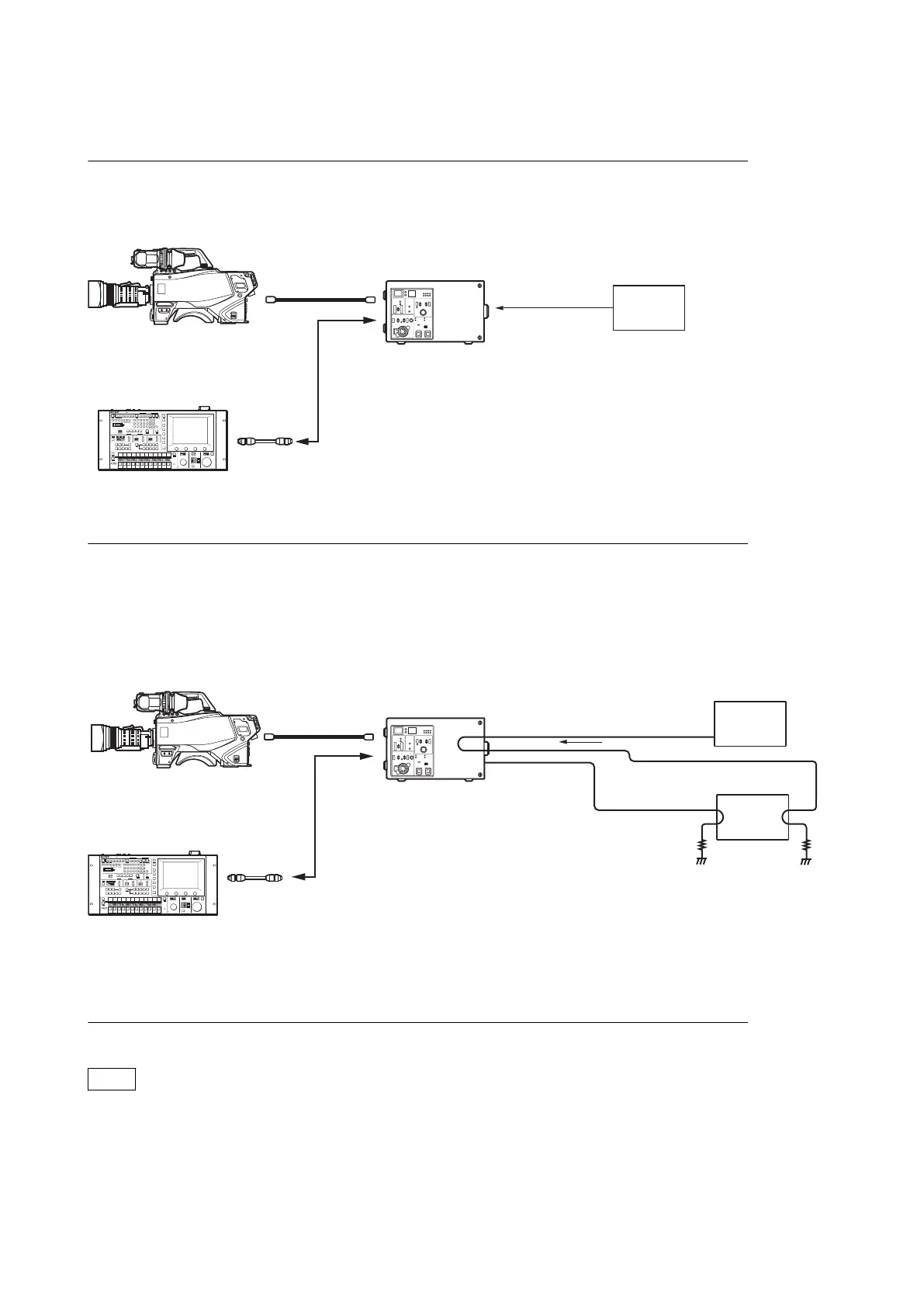

5-1-3. Connection of Equipment
Adjusting the HDCU2500
MASTER SETUP UNIT
MSU-1000/1500
HD COLOR CAMERA
HDC2500
OPTICAL FIBER
CABLE
HD CAMERA CONTROL UNIT
HDCU2500
Measuring
equipment
CCA-5 CABLE
(max. 200m)
Adjusting the HKCU1001/1003
OPTICAL FIBER
CABLE
CCA-5 CABLE
(max. 200m)
MASTER SETUP UNIT
MSU-1000/1500
HD CAMERA CONTROL UNIT
HDCU2500
HD COLOR CAMERA
HDC2500
WF OUT
/VDA64A/64B
75 Ω75 Ω
REFERENCE IN
/CN2675G
SD Waveform/
Vector monitor
SD signal generator
SD ENCODER UNIT
HKCU1001
or
MULTI INTERFACE UNIT
HKCU1003
+
5-1-4. Initialization Settings
HDCU2500
Note
• When changing the switch settings from the customer’s setting positions, it is recommended to write down the
customer’s setting positions in the following table. After completing the adjustment, be sure to return the switches
to the customer’s setting positions.
• Set the switches other than the following to the state when shipped from the factory
For details of the switch settings, refer to Section “1-6-2. Functions of Onboard Switches”.
HDCU2500
5-2
