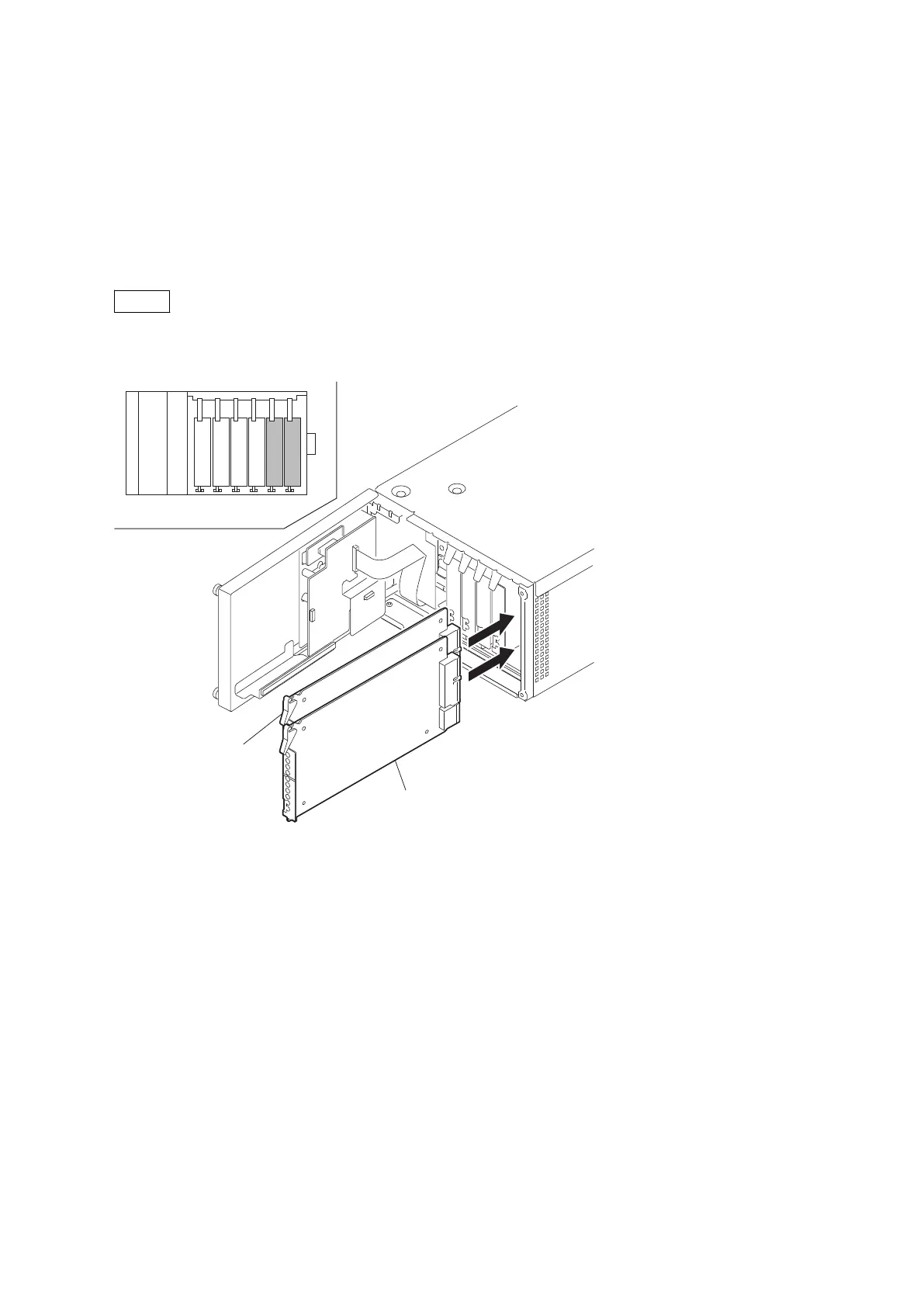

1-11. Installing the Option Board

1-11-1. Front Side (HKCU2007)

1. Loosen the two coin screws, and open the front panel. (Refer to “4-3-1. Removal and Installation of Front

Panel”)

2. Shift the standard RC-105 board from slot 2 to slot.

3. Insert the DRX-9 board (HKCU2007) into slot 2.

Notes

• Put the board on the groove at the bottom of the slot and then push it straight.

• Check that the board is securely connected to the MB-1181 board.

123

Slot

Standard RC-105 board

DRX-9 board

(HKCU2007)

4. Close the front panel and secure it with two coin screws.

HDCU2500

1-24
