Sony HDCU2500 Maintenance Manual

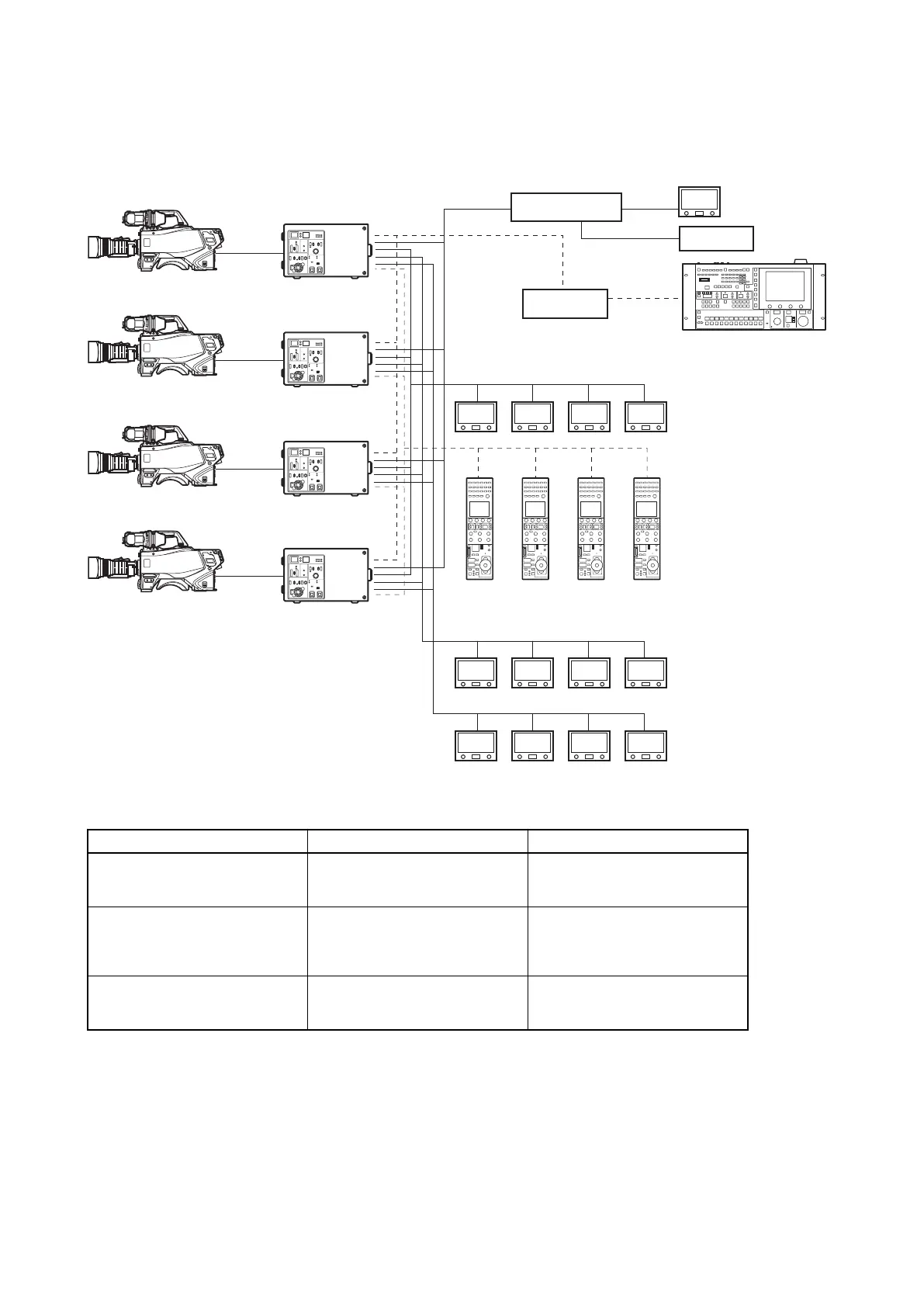

2-1-1. Example of Connection
HD-SDI
SD-SDI Monitor
HD-SDI Monitor
3G-SDI Monitor
RCP-1000 Series
MSU-1000/1500
SD Analog Monitor
Hub
Video router
LCD monitor
HDC2400/2500
HDC2400/2500
HDC2400/2500
HDC2400/2500
HDCU2500
HKCU1001
HKCU1003
HKCU2007
()
HDCU2500
HKCU1001
HKCU1003
HKCU2007
()
HDCU2500
HKCU1001
HKCU1003
HKCU2007
()
HDCU2500
HKCU1001
HKCU1003
HKCU2007
()
Example of board combinations
System configuration Slot on the front side:Board name Slot on the rear side:Board name
Standard 3G/HD/SD system 1：DRX-9
2：RC-105
3：—
1：HIF-62
2：HIF-26
3：—
Standard 3G/HD/SD system + SD analog
encoder (HKCU1001)
[SD analog I/F added (VBS, PIX, and WF
output)]
1：DRX-9
2：RC-105
3：EN-159A
1：HIF-62
2：HIF-26
3：VDA-64A
Standard 3G/HD/SD system + 3G signal
interface (HKCU2007)
[3G/HD-SDI added]
1：DRX-9
2：DRX-9
3：RC-105
1：HIF-62
2：HIF-57
3：HIF-26
HDCU2500
2-2
