Sony HDCU2500 Maintenance Manual

1-11-2. Rear Side (HKCU2007)

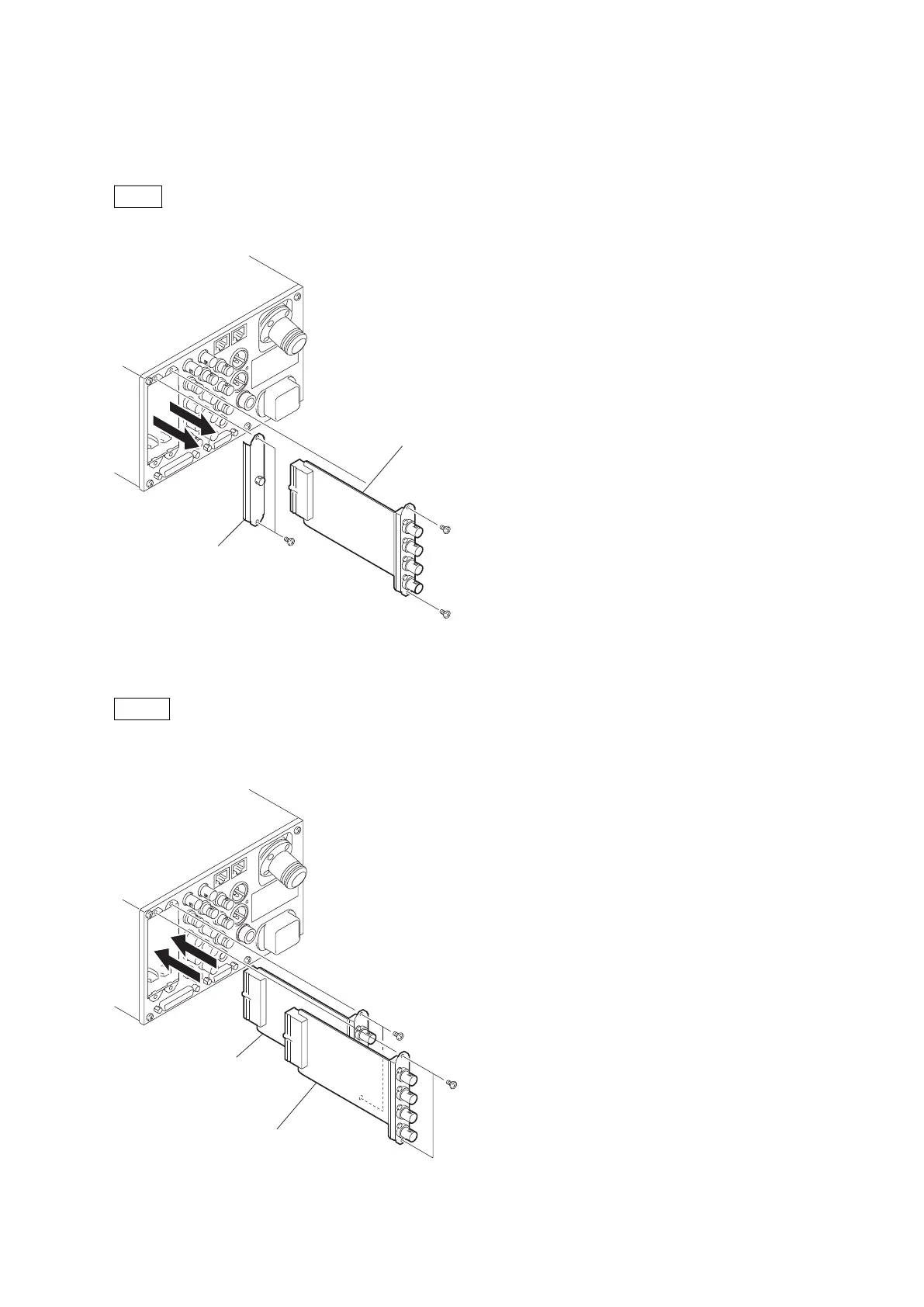

1. Remove the four screws and remove the standard HIF-26 board of slot 2 and the blank panel of slot 3.
Note
Keep the removed blank panel.
Blank panel
Standard HIF-26 board
B3 x 5
B3 x 5
B3 x 5
2. Insert the HIF-57 board into (HKCU2007) slot 2 and the standard HIF-26 board into slot 3, and secure them with
four screws.
Notes
• Put the board on the groove at the bottom of the slot and then push it straight.
• Check that the board is securely connected to the MB-1181 board.
Standard HIF-26 board
HIF-57 board
(HKCU2007)
B3 x 5
B3 x 5
HDCU2500
1-25
