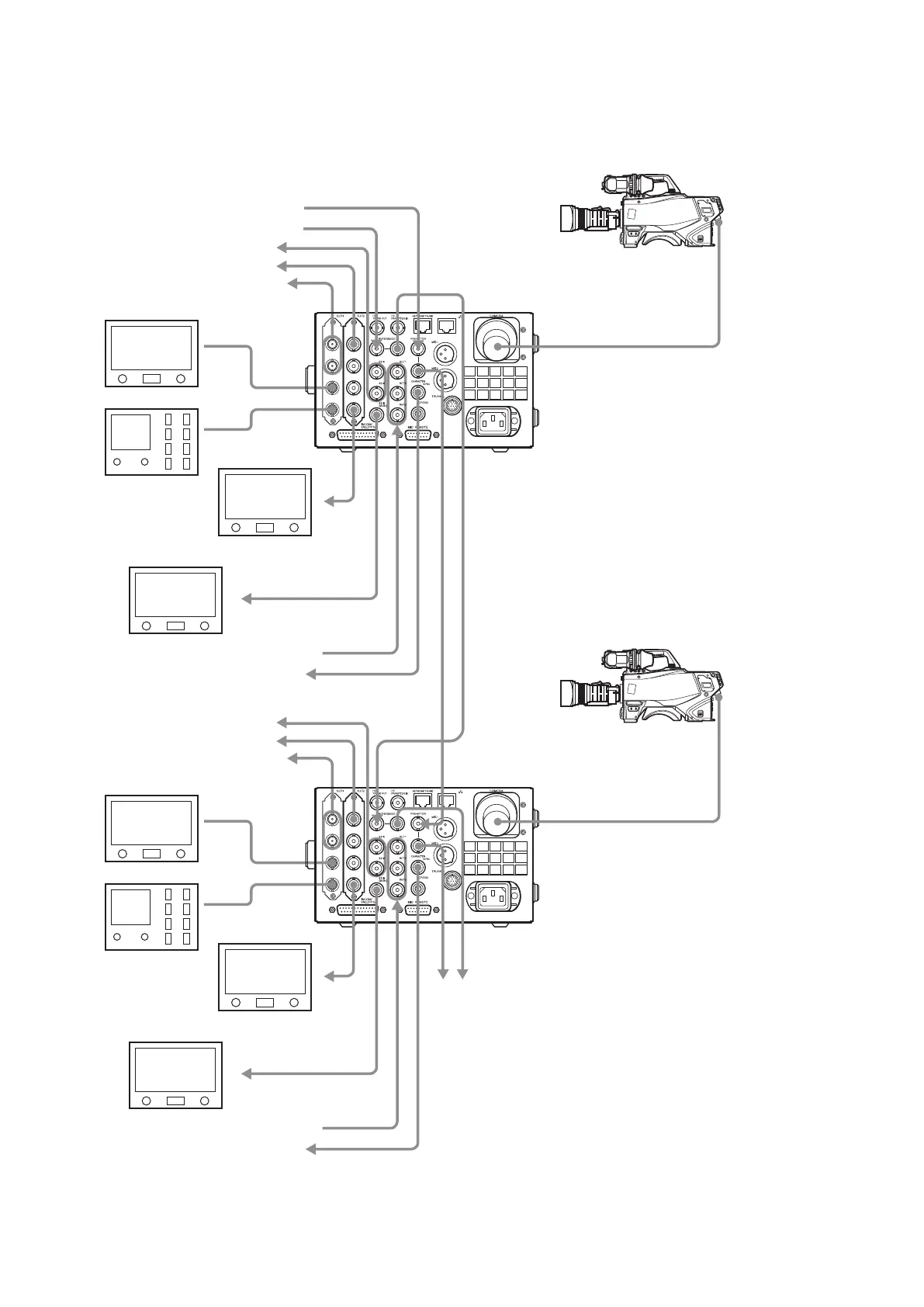

2-1-3. Standard 3G/HD/SD System with SD Analog Encoder (HKCU1001)

HDCU2500

Waveform Monitor

SD ANALOG Monitor

NALOG COMPOSITE VIDEO SIGNAL

VDA-A

PIX

OUT

VBS

HDCU2500

Waveform Monitor

SD ANALOG Monitor

NALOG COMPOSITE VIDEO SIGNAL

VDA-A

PIX

OUT

VBS

Next HDCU2500

REFERENCE SIGNAL (HD or SD)

PROMPTER SIGNAL

HD/SD-SDI Monitor

HD/SD-SDI SIGNAL

3G/HD-SDI SIGNAL

SYNC OUT (HD or SD)

3G/HD/SD-SDI, ANALOG RETURN SIGNAL

3G-SDI Monitor

HDC2400/2500

HD/SD-SDI Monitor

HD/SD-SDI SIGNAL

3G/HD-SDI SIGNAL

SYNC OUT (HD or SD)

3G/HD/SD-SDI, ANALOG RETURN SIGNAL

3G-SDI Monitor

HDC2400/2500

HDCU2500

2-4
