1-3. Connectors and Cables
1-3-1. Connector Input/Output Signals of
HDCU2500
Input Signals
1. HD PROMPTER IN
• BNC type
• BTA S-004/SMPTE 292M compliant
75 Ω, 1.485 Gbps/1.4835 Gbps
2. RET1, 2, 3
• BNC type
• VBS (Analog composite signals): 1.0 V p-p , 75 Ω
• 3G-SDI: SMPTE 424M/425M Level-B compliant
0.8 Vp-p, 75 Ω, 2.970 Gbps/2.967Gbps
• HD-SDI: SMPTE 292M compliant
0.8 Vp-p, 75 Ω, 1.485 Gbps/1.4835 Gbps
• SD-SDI: SMPTE 259M compliant
0.8 Vp-p, 75 Ω, 270 Mbps
3. REFERENCE
• BNC type
• HD: SMPTE 274M compliant
tri-level sync, 0.6 Vp-p, 75 Ω
• SD: Black burst signal (NTSC: 0.286 Vp-p, 75 Ω/
PAL: 0.3 Vpp, 75 Ω) or NTSC 10F-BB
4. PROMPTER
• BNC type
• Analog signals, 1.0 Vp-p, 75 Ω
Output Signals
5. CHARACTER /SYNC
• BNC type
• HD SYNC: BTA-S001 compliant
tri-level sync, 0.6 Vp-p, 75 Ω
• SD SYNC: composite sync，0.3 Vp-p, 75 Ω
• HD SYNC/SD SYNC selectable
• CHARACTER: VBS, 1 Vp-p, 75 Ω, character ON/OFF
selectable
6. HD/SD-SDI OUT 1 to 4
• BNC type
• HD-SDI: BTA-S004, SMPTE 292M compliant
0.8 Vp-p, 75 Ω, 1.485 Gbps/1.4835 Gbps
• SD-SDI: SMPTE 259M compliant
0.8 Vp-p, 75 Ω, 270 Mbps
• HD-SDI/SD-SDI selectable
7. 3G/HD-SDI OUT 1 to 3
• BNC type
• 3G-SDI: SMPTE 424M/425M Level-B compliant
0.8 Vp-p, 75 Ω, 2.970 Gbps/2.967Gbps
• HD-SDI: SMPTE 292M
0.8 Vp-p, 75 Ω, 1.485 Gbps/1.4835 Gbps
• 3G-SDI/HD-SDI selectable
8. HD TRUNK OUT
• BNC type
• HD-SDI: BTA-S004, SMPTE 292M compliant
0.8 Vp-p, 75 Ω, 1.485 Gbps/1.4835 Gbps (Available
only when camera single link format is selected)
9. AUDIO OUT CH1, CH2
12
3

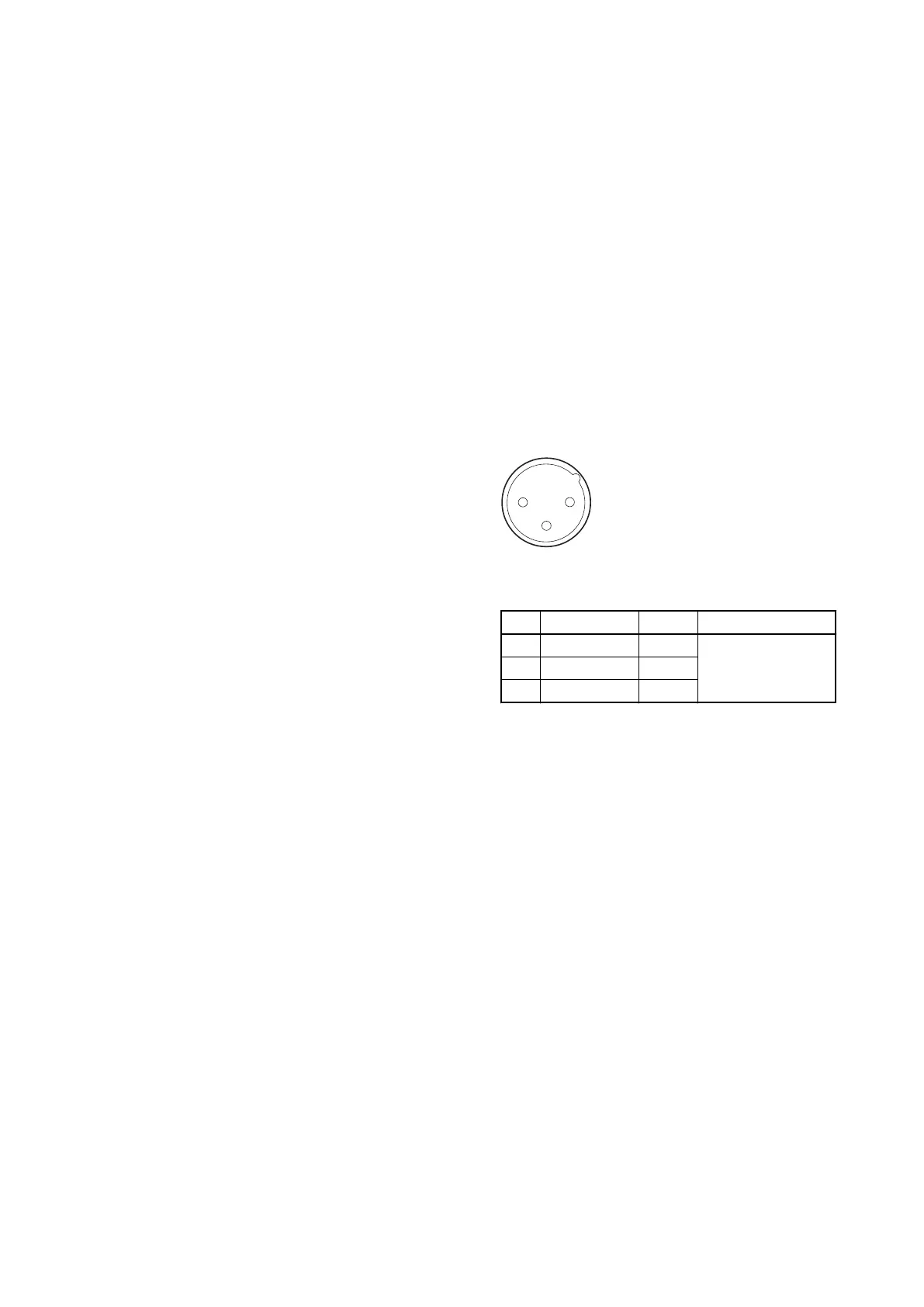

- External View -
(0 dBu = 0.775 Vrms)
XLR 3-pin, Male
No. Signal I/O Specifications
1 MIC OUT (G) — +4 dBu/0 dBu/–20 dBu
2 MIC OUT (X) O
3 MIC OUT (Y) O
Input/Output Signals
10. CAMERA
• Optical/electrical connector
• VIDEO: Y/PB/PR
BTA-S004 compliant
3.7125 Gbps/3.7088 Gbps/1.485 Gbps /1.4835 Gbps
serial
• RET VIDEO: Y/PB/PR
3.7125 Gbps/3.7088 Gbps/1.485 Gbps /1.4835 Gbps
serial
• INTEERCOM: 2ch
• MIC: 2ch
• DIGITAL AUDIO (AES/EBU)
• CAMERA COMMAND
• PROMPTER: 1ch
HDCU2500
1-3
