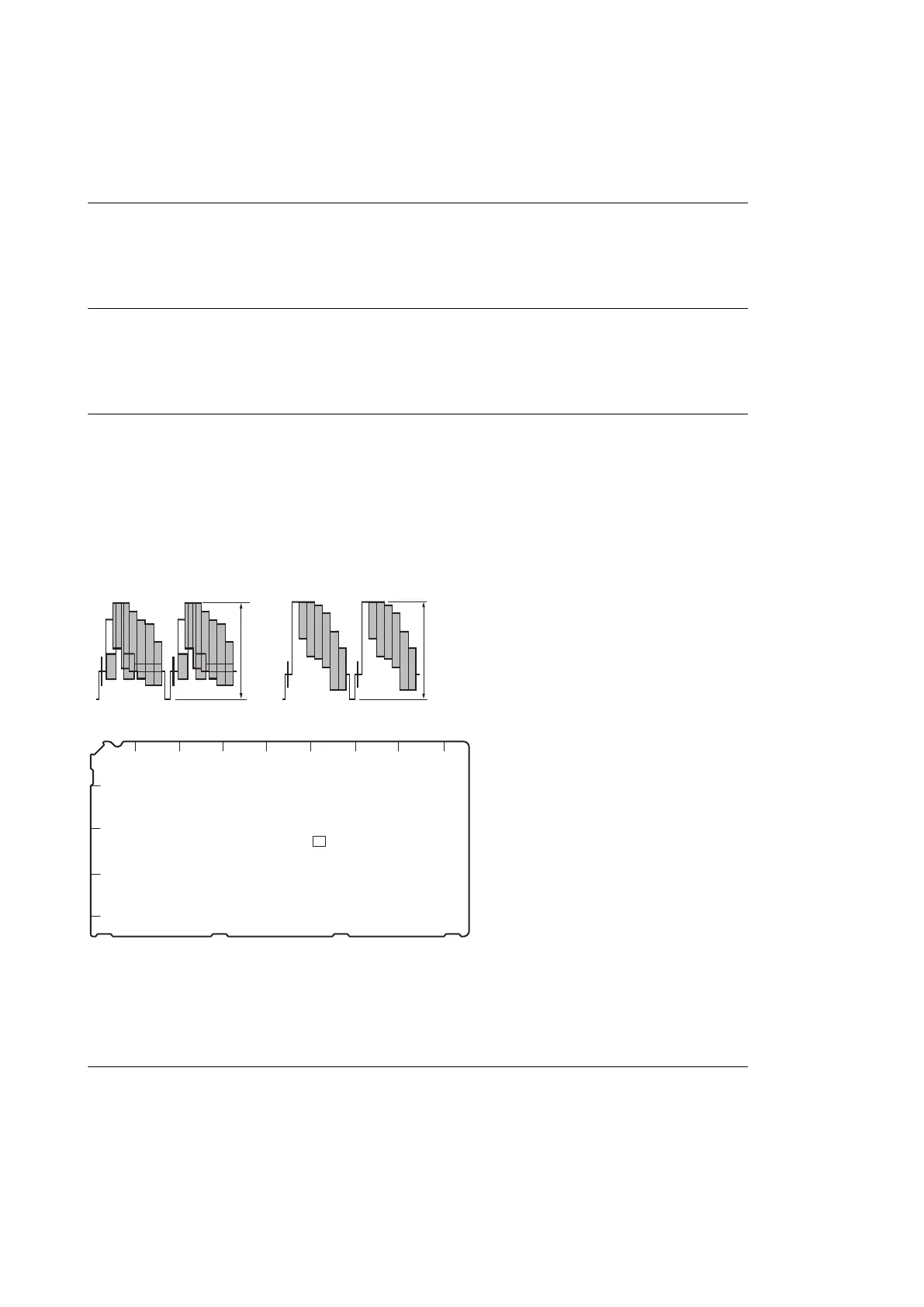

5-4. SD Signal System Adjustment

5-4-1. VBS Output Level Adjustment

Measuring equipment

SD waveform monitor

Preparation

Extend the EN-159A/159B board using an extended board.

Adjustment Procedure

Test Point: VBS OUT connector/ VDA-64A board

Adjusting Point: RV303 (F-3)/EN-159A/159B board

Specification:

A = 140 ±1 IRE (75 Ω termination)

B = 1000 ±7 mVp-p (75 Ω termination)

EN-159A/159B board (Side A)

A B C D E F G H J

RV303

NTSC

PAL

5-4-2. PIX Output Level Adjustment

Measuring equipment

SD waveform monitor

HDCU2500

5-11
