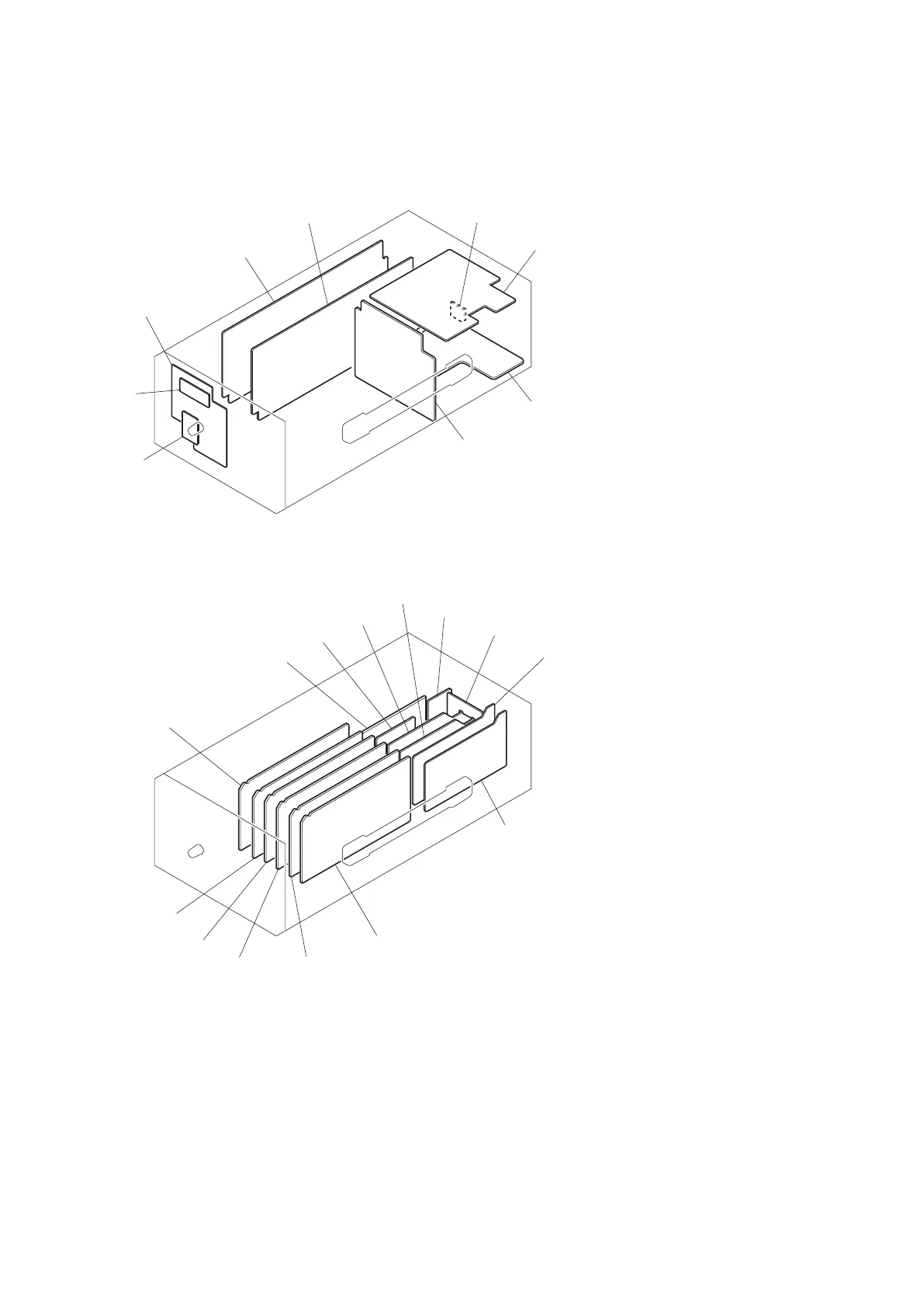

1-4.
Location of Printed Circuit Boards
CN-2677G
SDP-17
CNB-29A
MB-1181
PS-778D00
RE-274
AU-340
LE-379
CN-3451
AT-167A
RC-105
DRX-9
DTX-9
AVP-15
VIF-52
ADO-12
SDI-99
HIF-62
CN-2676
CN-2675G
HIF-26
Option
HIF-57 (HKCU2007)
VDA-64A (HKCU1001/1003)
VDA-64B (HKCU1003)
Option
DRX-9 (HKCU2007)
EN-159A (HKCU1001)
EN-159B (HKCU1003)
HDCU2500
1-10
23
25
Table of Contents
Table of Contents
7
Manual Structure
13
Purpose of this Manual
13
Related Manuals
13
Service Overview
15
Checking the ROM and Software Version
15
Power Cord
16
Connectors and Cables
17
Connector Input/Output Signals of HDCU2500
17
Intercom
18
Rcp/Cnu
18
Lan
18
Network Trunk
18
MIC Remote
19
Specification of ASPECT CTL
20
Intercom/Tally/Pgm
20
Connector Input/Output Signals of HKCU2007
20
Connector Input/Output Signals of HKCU1001
20
Connector Input/Output Signals of HKCU1003
21
VDA-64B Board
21
VDA-64C Board
21
Wiring Diagrams for Cables
22
CCA-5 Cable (for RCP/CNU Connector)
22
Connection Connectors/Cables
22
Note in Connecting CAMERA Connector
23
Location of Printed Circuit Boards
24
Outside Dimensions
25
Functions of Onboard Parts
26
Description of Onboard LED Indicators
26
AT-167A Board
26
AVP-15 Board
26
DRX-9 Board
27
RC-105 Board
28
Functions of Onboard Switches
29
Functions of Onboard Potentiometers
32
Service Tools/Measuring Equipment List
34
Service Tools
34
Measuring Equipment
34
Cautions When Replacing the Lithium Battery
35
Replacing Procedure
35
Replacing the Flexible Card Wires
36
Option Board Installation Position
37
When Installing Option Model
37
Installing the Option Board
38
Front Side (HKCU2007)
38
Rear Side (HKCU2007)
39
Front Side (HKCU1001/1003)
40
Rear Side (HKCU1001/1003)
41
Writing and Rewriting the PLD Internal Data
42
E-Production System Has the Advantages Shown below
42
Corresponding Plds
42
Equipment Required
43
Data Writing Procedure
43
Circuit Protective Devices
44
Fuse
44
Thermistor
44
Cleaning of Connector/Cable
47
Male Connector
47
Female Connector
47
When the Optical Connector Cleaner (Commercially Available) Is Available
47
LC Type Connector
48
Cleaning Connectors/Cables of LEMO
48
When the Optical Connector Cleaner (Commercially Available) Is Not Available
48
Circuit Description
52
Front Boards
52
Rear Boards
53
HIF-26 Board
53
HIF-62 Board
53
VIF-52 Board
54
ADO-12 Board
54
Hkcu2007
54
Hkcu1001
54
Hkcu1003
55
Lead-Free Solder
56
System Setup
57
System Connection
57
Example of Connection
58
Example of Board Combinations
58
Standard 3G/HD/SD System
59
Standard 3G/HD/SD System with SD Analog Encoder (HKCU1001)
60
Standard 3G/HD/SD System with 3G Signal Interface (HKCU2007)
61
Setting the System Formats
62
Setting the Reference Input
62
Audio System
63
Setting the Intercom System
63
Adjusting RTS Cancellation (Rts/Clear-Com)
63
Setting Intercom Microphone
64
Setting PGM Audio Signal Input Level
64
Selecting PGM Audio Signal
64
Adjusting PGM Audio Signal Mixing Volume
64
Microphone Setting
65
Remote Controlling Microphone Input Amplifier Gain
65
Remote Control Using the Menu Setting
65
Adjusting the Microphone Input Gain Using the MIC REMOTE Connector
65
Adjusting MIC Phase
66
Setting MIC Output Level
66
System Settings
67
Tally System Setting
67
Camera Number Setting
67
Connecting the Control, Intercom, Tally and Audio Signals
68
Video Signal System
69
Input/Output Signal Selection
69
Signal Phase Adjustment
69
Adjusting Sync Signal Phase
69
Aspect Ratio Setting for Down-Conversion
70
When SD Is Selected
70
Setting Aspect Ratio with the MIC REMOTE Connector
70
Examples of Display
71
VBS Signal Level Adjustment (Only When HKCU1001/1003 Is Installed)
72
Adjustment Procedure Using EN-159A/159B Board
73
Waveform Monitor Signal Level Adjustment (Only When HKCU1001/1003 Is Installed)
73
Stair Case Signal Adjustment Procedure (Only When HKCU1001/1003 Is Installed)
74
Picture Monitor Signal Level Adjustment (Only When HKCU1001/1003 Is Installed)
75
RETURN Input Signal
76
Menu Settings
77
Display/Hide the Status Screen
77
To Display the Status Screen
77
Starting/Exiting the Maintenance Mode
77
Preparations
77
Changing Setting Values
78
Memory Stick
78
Status Display
79
Camera Settings
79
Camera Status
79
SD Signal Setting Status of CCU
79
Settings of Entire System
80
Status of Internal Boards
80
Camera System Diagnostics
80
Network Diagnostics
81
Board Diagnostics
82
AT Board Diagnostics
82
Status of the Board Inserted in Slot
83
AVP Board Diagnostics
83
DTX Board Diagnostics
83
Status of the Board Inserted in Slot2
84
Status of the Board Inserted in Slot3
84
SDP Board Diagnostics
84
Camera Board Status
85
Version Information of Roms in each Unit
85
SYSTEM OPERATION Menu
86
CCU CONFIGURATION Menu
92
C02: Bar Character
93
NETWORK SETTINGS Menu
103
N01: Ip Addr Set
103
N02: Lan Setting
103
N03: Cns Setting
104
N04: Network Reset
104
VE OPERATION Menu
105
V01: Reference
105
V02: Lens File
105
V03: Ohb File
105
V04: Scene File
106
V05: Video Level
106
V06: Gamma
107
V07: Black Gamma
107
V08: Knee
107
V09: White Clip
108
V10: User Matrix
108
V11: Multi Matrix
108
V12: Detail 1
108
V13: Detail 2
109
V14: Skin Detail
109
V15: Shutter
109
V16: Low Key Sat
110
V17: Cross Color
110
V18: Sd Gamma
110
V19: Sd Detail 1
110
V21: Sd Cross Color
111
V23: Sd Multi Matrix
111
V24: Black Shading
112
V25: White Shading
112
V26: Auto Iris
112
V27: Ohb Matrix
113
V28: Others
113
V29: Auto Setup
113
V30: Ccu Video
114
M01: Serial no Set
115
MAINTENANCE Menu
115
M02: Firmware Update
116
M03: Analog Adjust
116
M04: Others
117
Replacement of Main Parts
119
General Information for Parts Replacement
119
Mechanical Parts
119
Mounted Circuit Boards
119
Index
119
Basic Knowledge
121
Power Supply Unit
122
Power Block Assembly (D00)
122
DC Fan
123
RE-274 Board
125
PS-778D00 Board
126
Notes on Disassembling the Power Block Assembly (D00)
128
Front Panel
131
Removal and Installation of Front Panel
131
CN-3451 Board
131
AU-340 Board / LE-377 Board
132
Rear Panel
134
Removal and Installation of Rear Panel Assembly
134
SDP-17 Board
134
Plug-In Board
137
Installing/Removing Plug-In Boards on the Front Side
137
Installing/Removing Plug-In Boards and Blank Panels on the Rear Side
138
Main Frame
139
SDI-99 Board
139
HIF-62 Board
139
CN-2675G Board
140
CN-2676 Board
141
CN-2677G Board
142
VIF-52 Board
143
ADO-12 Board
144
CNB-29A Board
145
MB-1181 Board
146
Electrical Alignment
149
Preparations
149
Notes on Adjustments
149
Equipment Required
149
Connection of Equipment
150
Adjusting the HDCU2500
150
Initialization Settings
150
When MSU-1000 Is Used
151
Power Supply and Signal Switching Block
151
Camera/Ccu Circuit ON/OFF Block
151
Audio System Adjustment
152
RTS Intercom Adjustment
152
Prod Cancel
152
Eng Cancel
153
Video/Reference Signal System Adjustment
155
27 Mhz VCO Free-Running Adjustment
155
Clock (74 Mhz) Duty Adjustment
155
Prompter 1/2 Level Adjustment
156
STAIR CASE Adjustment
157
SD Signal System Adjustment
159
VBS Output Level Adjustment
159
PIX Output Level Adjustment
159
WF Output Level Adjustment
160
Spare Parts
163
Note on Repair Parts
163
Exploded Views
164
Front Side
164
Electrical Parts List
169
Supplied Accessories
260
Block Diagrams
261
Overall
261
Schematic Diagrams
265
Ado-12
265
Avp-15
276
Hif-62
319
Ps-778D00
324
Sdi-99
339
Sdp-17
344
Vda-64A
351
Vda-64B
352
Vif-52
353
Frame Wiring
356
Board Layouts
357
Ado-12
357
