1-11-4. Rear Side (HKCU1001/1003)

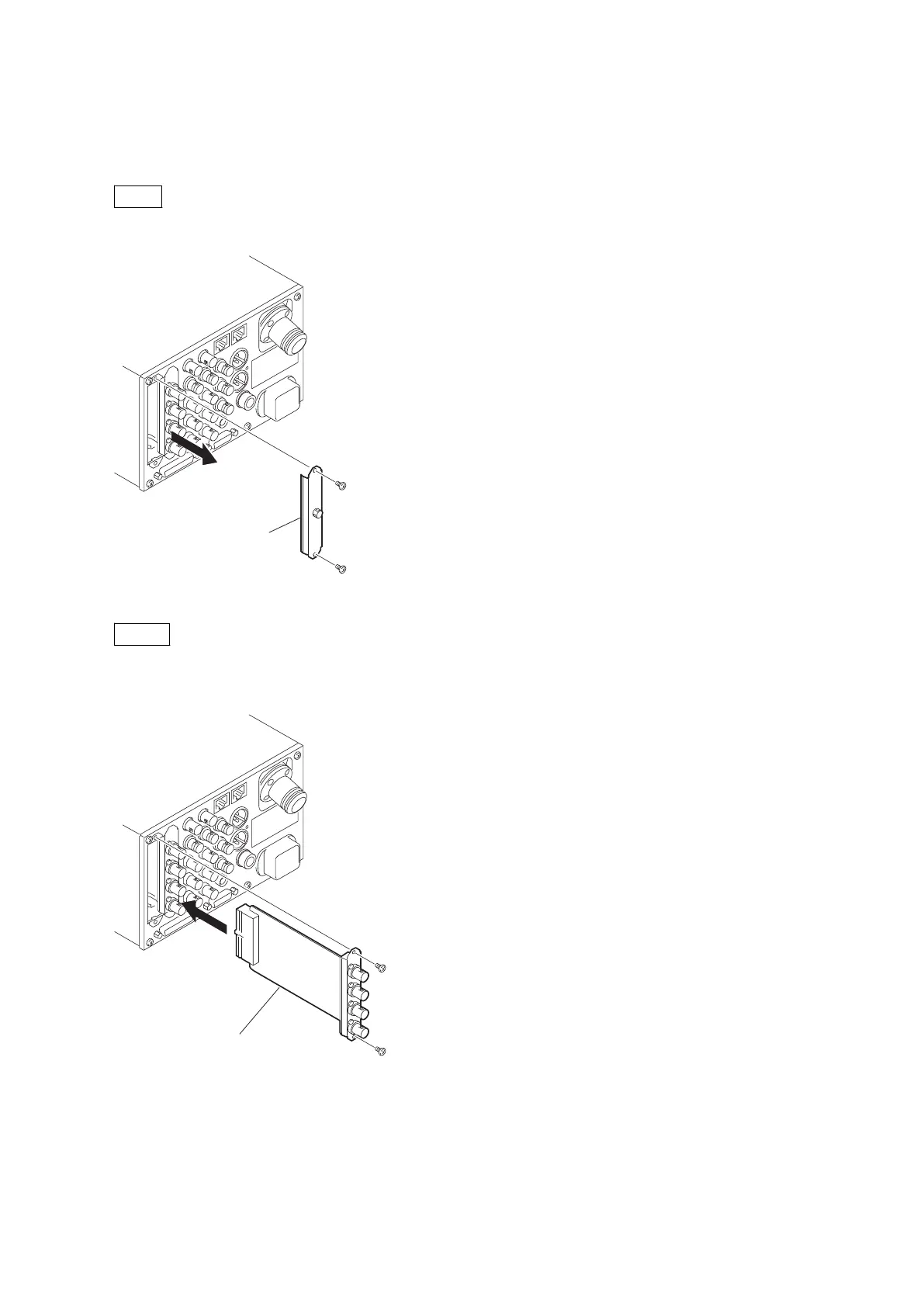

1. Remove the two screws and remove the blank panel of slot 3.

Note

Keep the removed blank panel.

B3 x 5

Blank panel

2. Insert the VDA-64A board or VDA-64B board into slot 3 and secure it with two screws.

Notes

• Put the board on the groove at the bottom of the slot and then push it straight.

• Check that the board is securely connected to the MB-1181 board.

VDA-64A board (HKCU1001/1003)

VDA-64B board (HKCU1003)

B3 x 5

HDCU2500
