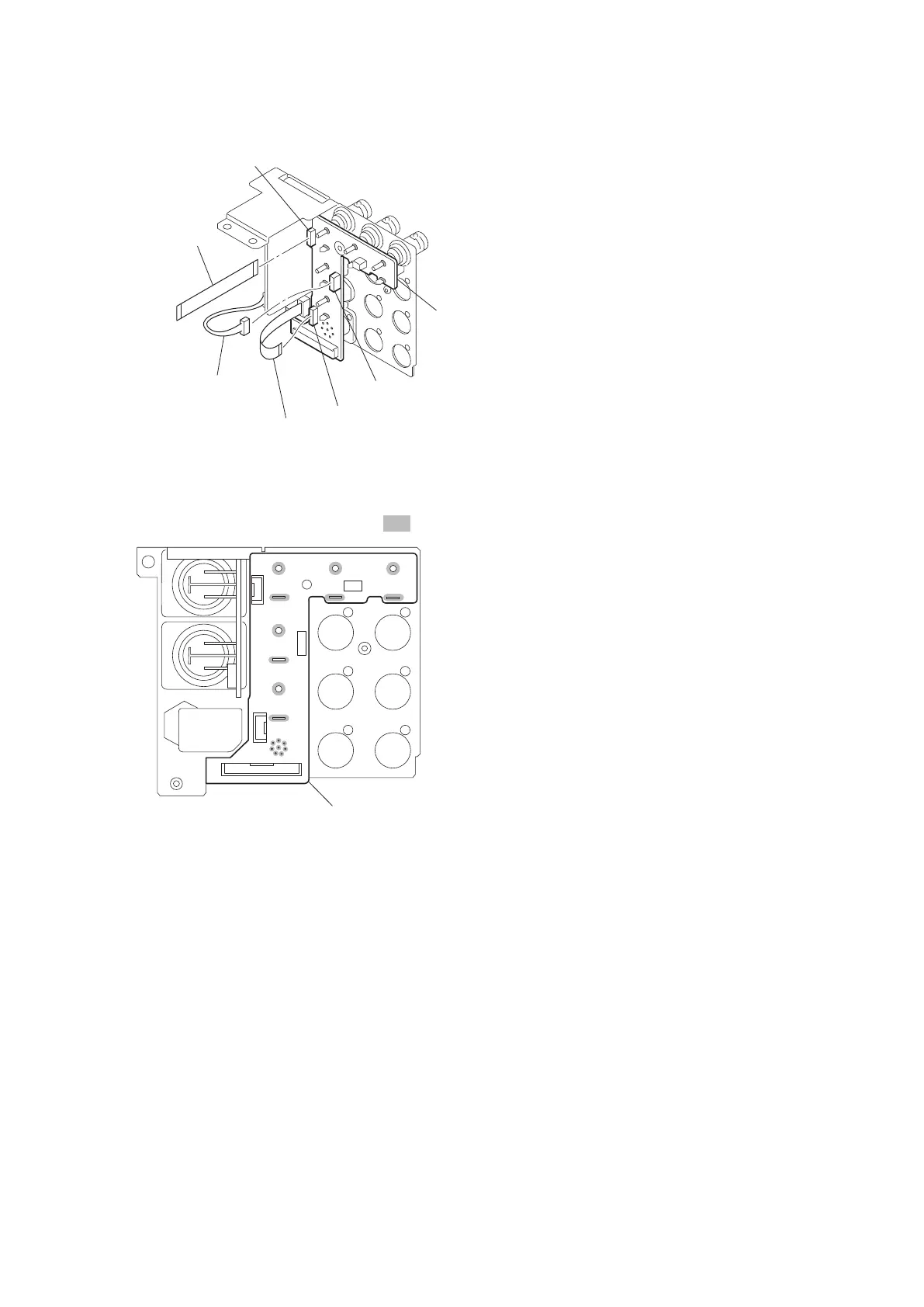

3. Disconnect the harness from the connector CN9 on the CN-2675G board.

CN9

CN7

CN-2675G board

Flexible flat cable

Harness

CN10

4. Unsolder the five coaxial connectors and the round type connector (8P) to detach the CN-2675G board.

Remove solder .

CN-2675G board

5. Install the removed parts by reversing the steps of removal.

4-6-4. CN-2676 Board

Preparation

1. Remove the rear panel assembly. (Refer to “4-4-1. Removal and Installation of Rear Panel Assembly”)

2. Remove the rear sub assembly (included in the HIF-62 board and the SDI-99 board) . (Refer to “4-6-1. HIF-62

Board”)

Procedure

1. Disconnect the harness (MIC) from the connector CN3 on the CN-2676 board.

HDCU2500

4-23
