Brother GTX-4 Service Manual

5-4
Regular Maintenance

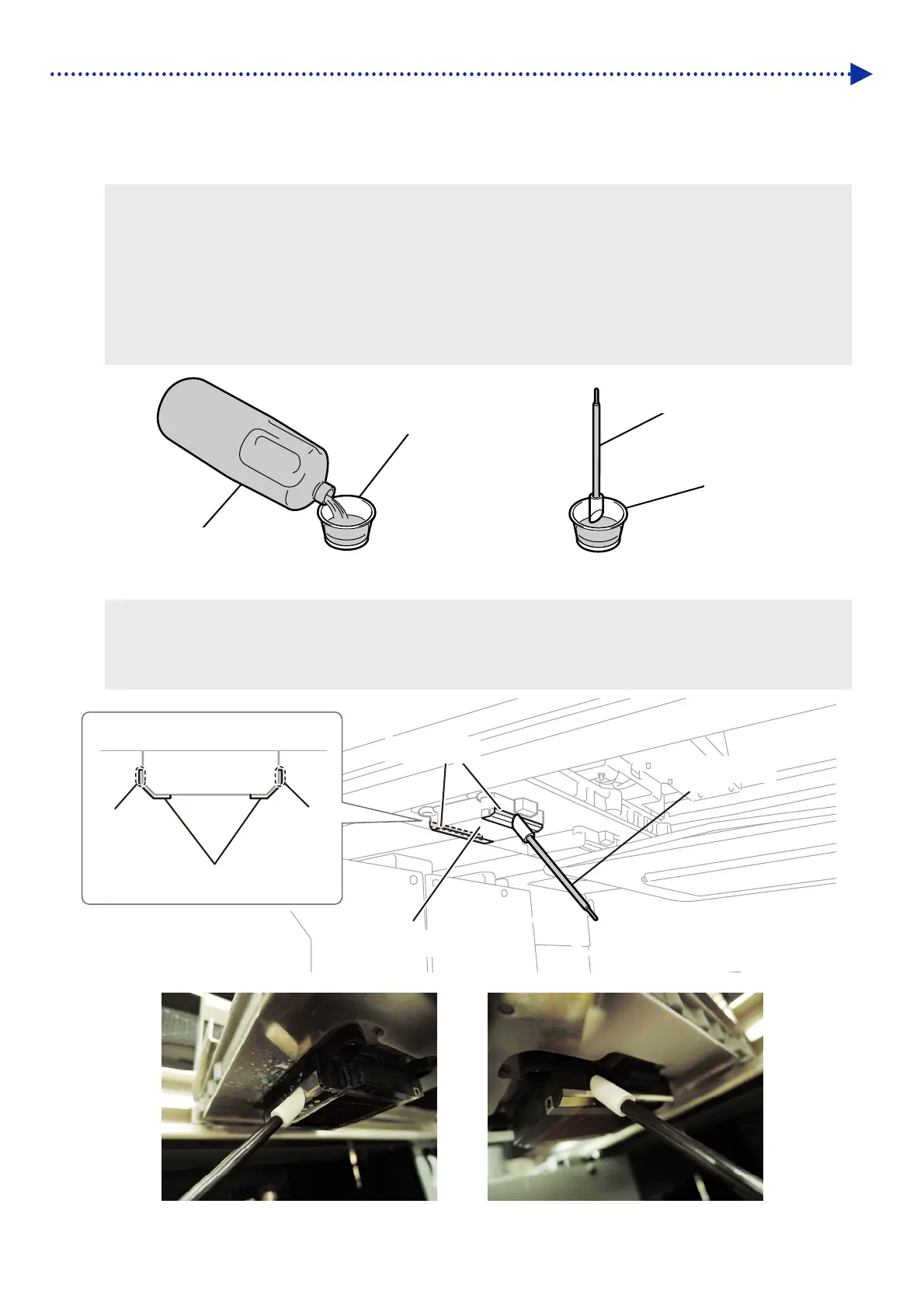

Cleaning the nozzle guard
(1) Put a proper amount of cleaning solution into the cleaning cup.
(2) Moisten a new clean stick R with the cleaning solution.
<IMPORTANT>
 Use a new clean stick R when you start cleaning.
 Never touch the tip end of clean stick R with your hand. If any sebaceous matter is attached to the wiper, it may result in a
printer malfunction.
 Do not use other fluids (water, etc.), because they may damage the print heads.
 Do not return the cleaning solution which has been put in the cleaning cup to the cleaning solution bottle.
<NOTE>
 For a proper work operation, be sure to wear the printer-provided gloves.
X0051
(3) Wipe clean the sides of the nozzle guard with the clean stick R.
<IMPORTANT>
 Be sure not to touch the nozzle surface as well as the level surface and sidling surface of the nozzle guard.
<TIPS>
 Manually move the carriage to such a position that you can perform the cleaning with ease.
X020
2
Cleaning cup
Cleaning solution
Clean stick R
Cleaning cup
Nozzle guard
Clean stick R
Nozzle surface
Nozzle guard
Side
Side
