Brother GTX-4 Service Manual

6-136
Disassembly / Replacement / Adjustment

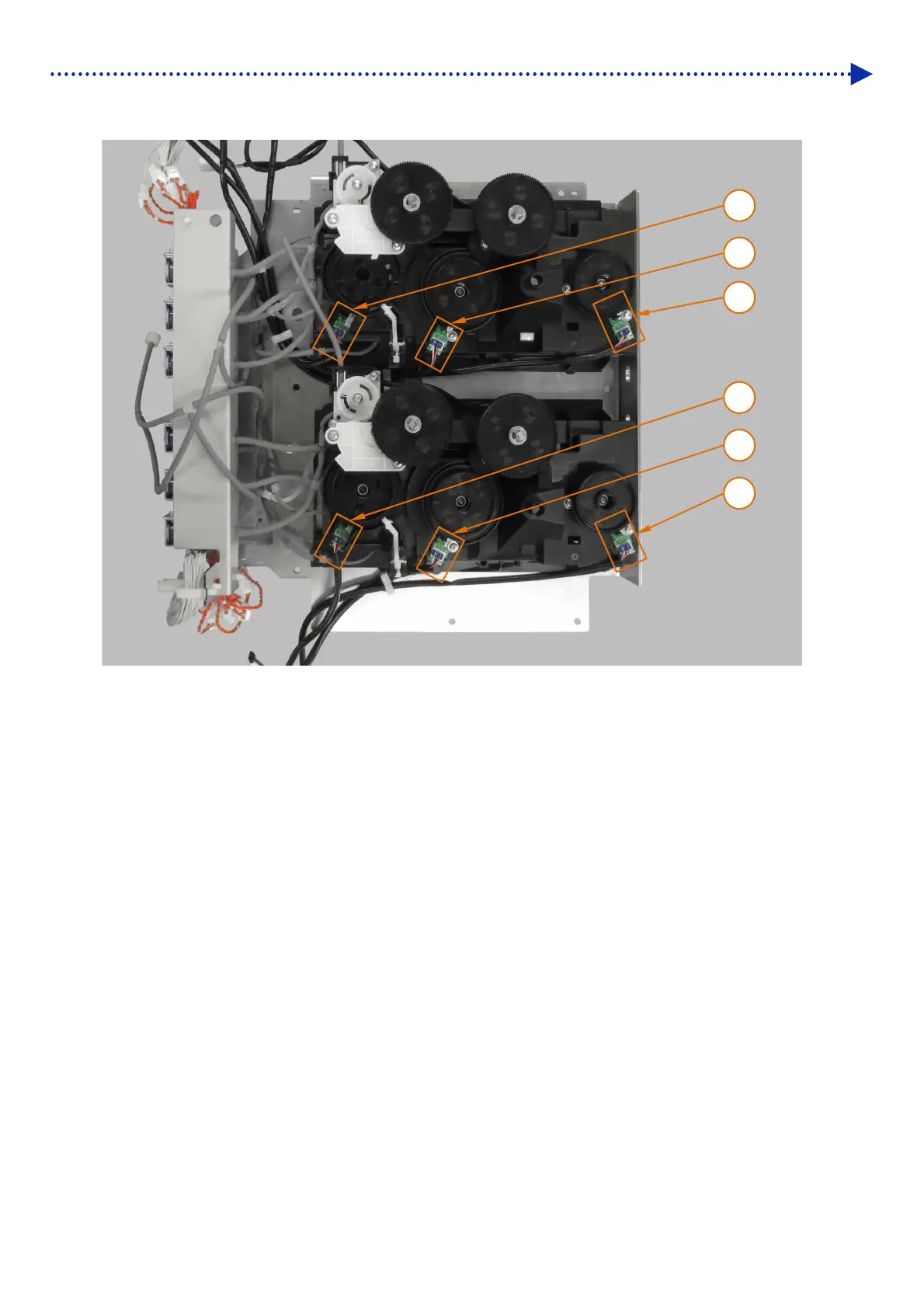

Inside of rear side of maintenance unit
1. C pump cam sensor (SB5194)
This sensor serves to detect the position of color-side pump cam.
2. C wiper cleaner sensor (SB5198)
This sensor serves to detect the position of color-side cleaner cam.
3. C wiper cam sensor (SB5196)
This sensor serves to detect the position of color-side wiper cam.
4. W pump cam sensor (SB5195)
This sensor serves to detect the position of white-side pump cam.
5. W cleaner camp sensor (SB5199)
This sensor serves to detect the position of white-side cleaner cam.
6. W wiper cam sensor (SB5197)
This sensor serves to detect the position of white-side wiper cam.
3
1
2
4
5
6
