Before Using Your Printer for the First Time
No. Name Function
11 Power button
Use this button to turn the power on/off to the printer.
The power-off operation should be performed after completing any required
operation.
The standby power cannot be turned off.
12 Cable clamp
With this clamp, the LAN and USB cables can be securely fixed to the lower
part of the main unit of printer.
13 Operation panel Operate the printer using this panel.

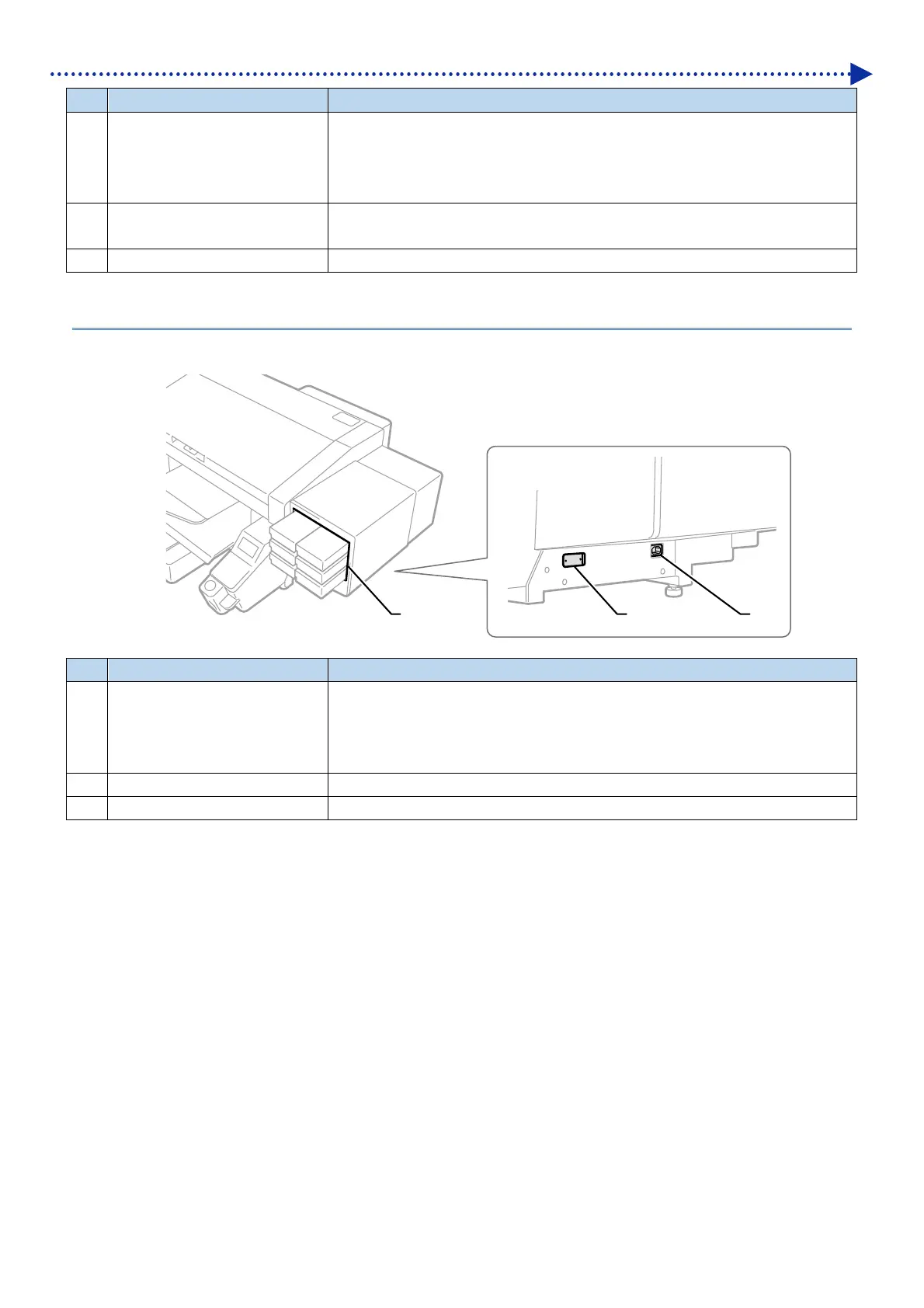

1-4-2. Right side view
X0032
321
No. Name Function
1 Cartridge insertion port
Ink cartridges placed here are, from the left in the top row, black (K) and yellow
(Y), from the left in the middle row, cyan (C) and magenta (M), and from the left
in the bottom row, white (W12) and white (W34). Be sure to put each of the ink
cartridges in their correct places.
2 Serial No. plate On this plate, a product serial number is inscribed.
3 Power cord insertion port Insert the power cord into this port.
