6-177
Disassembly / Replacement / Adjustment

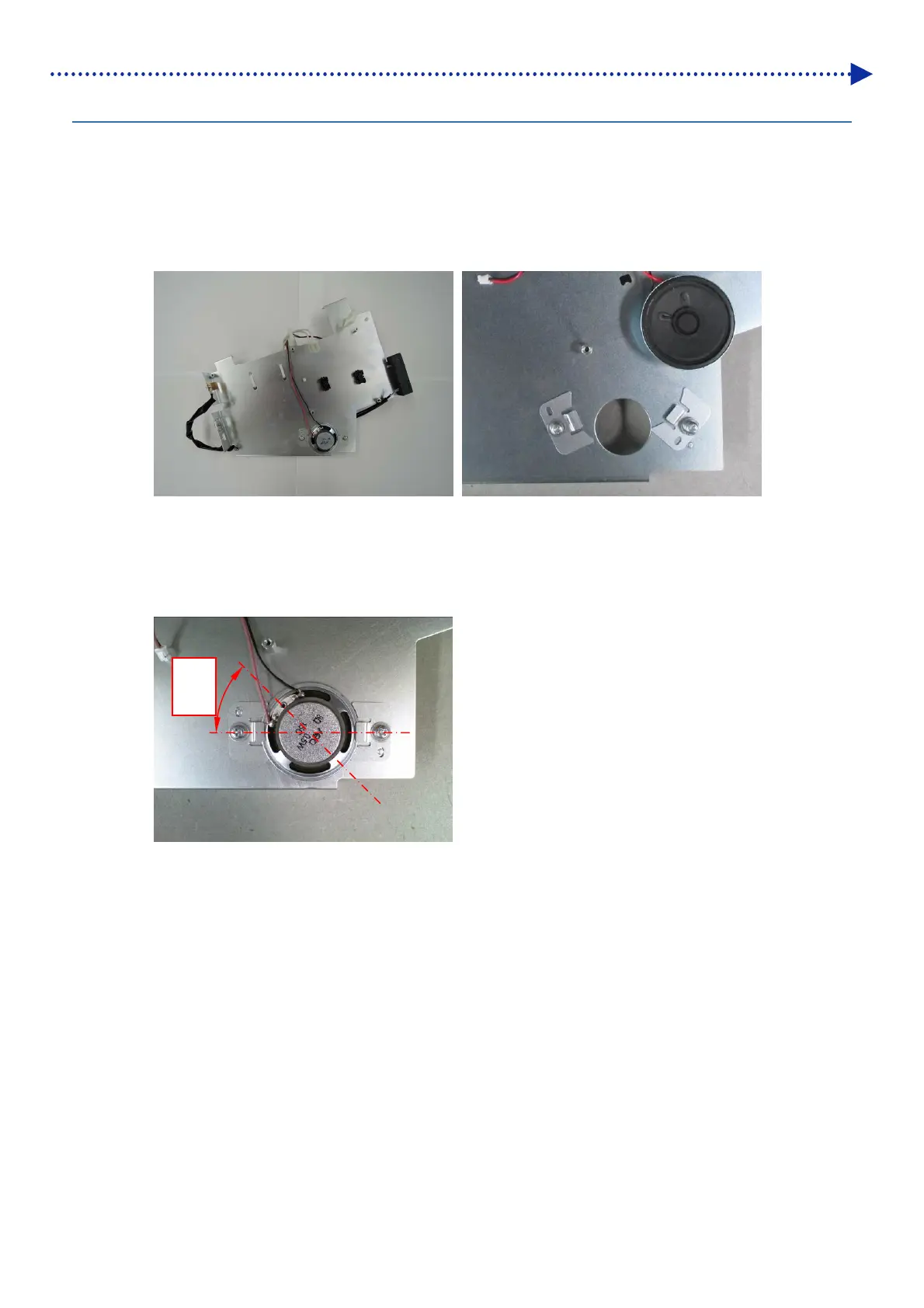

6-2-17. Replacement of speaker
Disassembly
(1) With reference to "6-2-11. Preparation for replacement of electric components inside panel unit", remove main
circuit board plate.
(2) Loosen the two screws of the speaker installation plate of the main circuit board plate to detach the speaker.
Assembly
(1) To perform the assembly, take the reverse procedures to disassembly operation.
(2) The speaker (SB2399) must be tilted at 45°toward the center line of the mounting screw.
45°
To Next Page
