6-171
Disassembly / Replacement / Adjustment
6-2-13. Replacement of Power switch
Disassembly

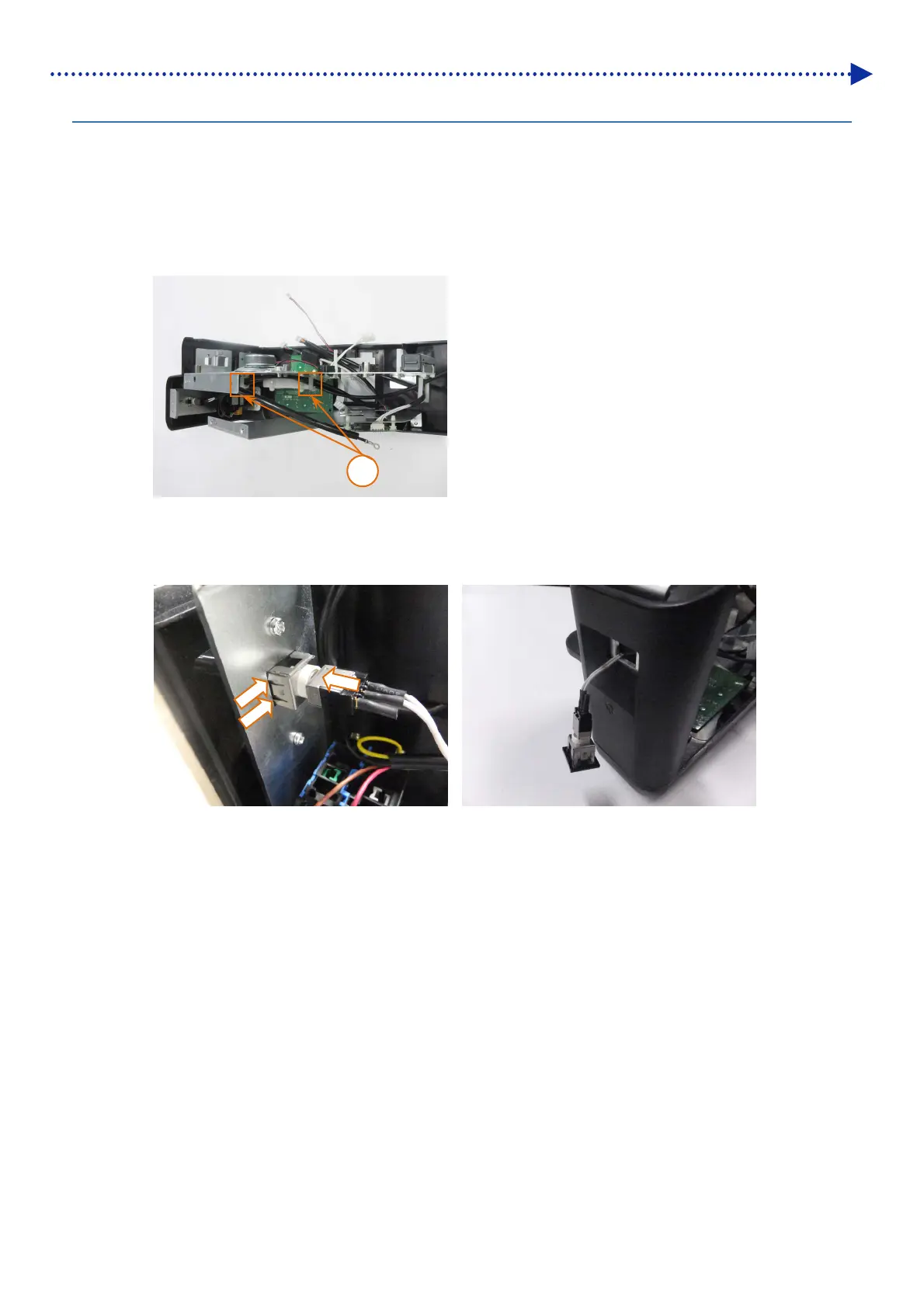

(1) With reference to "6-2-11. Preparation for replacement of electric components inside panel unit", remove the panel
unit from the main unit.
(2) Unhook the power switch harness hooked on the two clamps of the main circuit board plate.
(3) Pushing the power switch toward the front while pushing the latch of the power switch's body side makes it possible
to remove the switch.
Assembly
(1) To perform the assembly, take the reverse procedures to disassembly operation.
