Brother GTX-4 Service Manual

6-137
Disassembly / Replacement / Adjustment

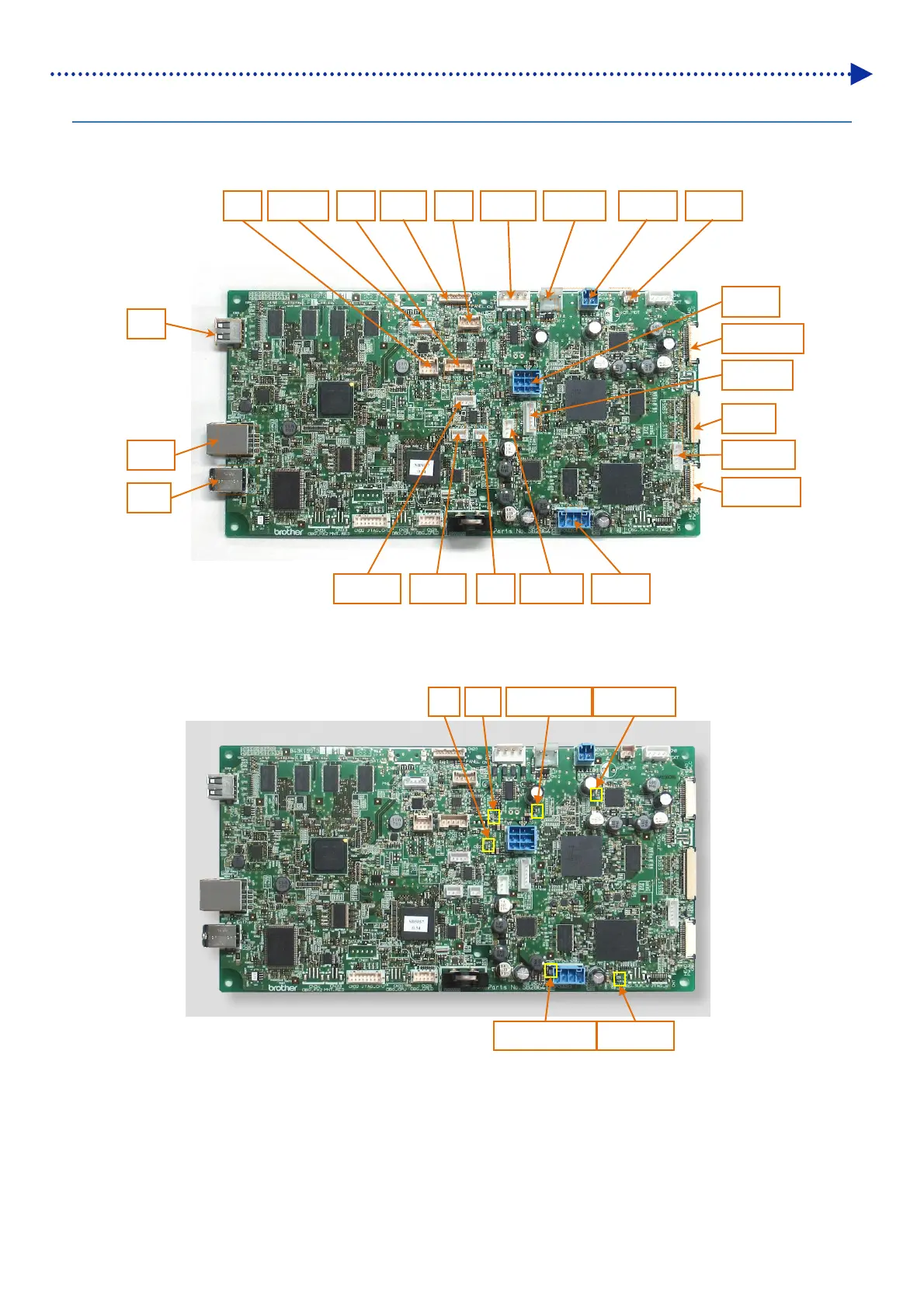

6-2-3. Connector position and indicator lamp
Main circuit board (SB7016)
Power indicator lamp (constantly ON)
* On only while printing for LD801
LD3
+36V_PLATEN
LD1
+31V_COLOR
LD
5
+5V
LD800
+31V_WHITE
LD4
+24V
LD801
HVDD+5V_WHITE
CN27
PNL_USB
CN35
USB
CN36
ETHER
CN37
USB-F
CN28
FAN
CN22
JAM
CN23
PRINT_SW
CN24
PT_ORG
CN19
SP
CN18
SOFT_SW
CN13
POWER3
CN16
INK_SEN_C
CN5
INK_SEN_W
CN6
HEAD_PW_C
CN4
HEAD_S
CN1
HEAD_PW_W
CN15
POWER1
CN9
CR_MOT
CN11
POWER2
CN12
VOL_CLIP
CN14
PT_MOT
CN21
MNT
CN20
PANEL
