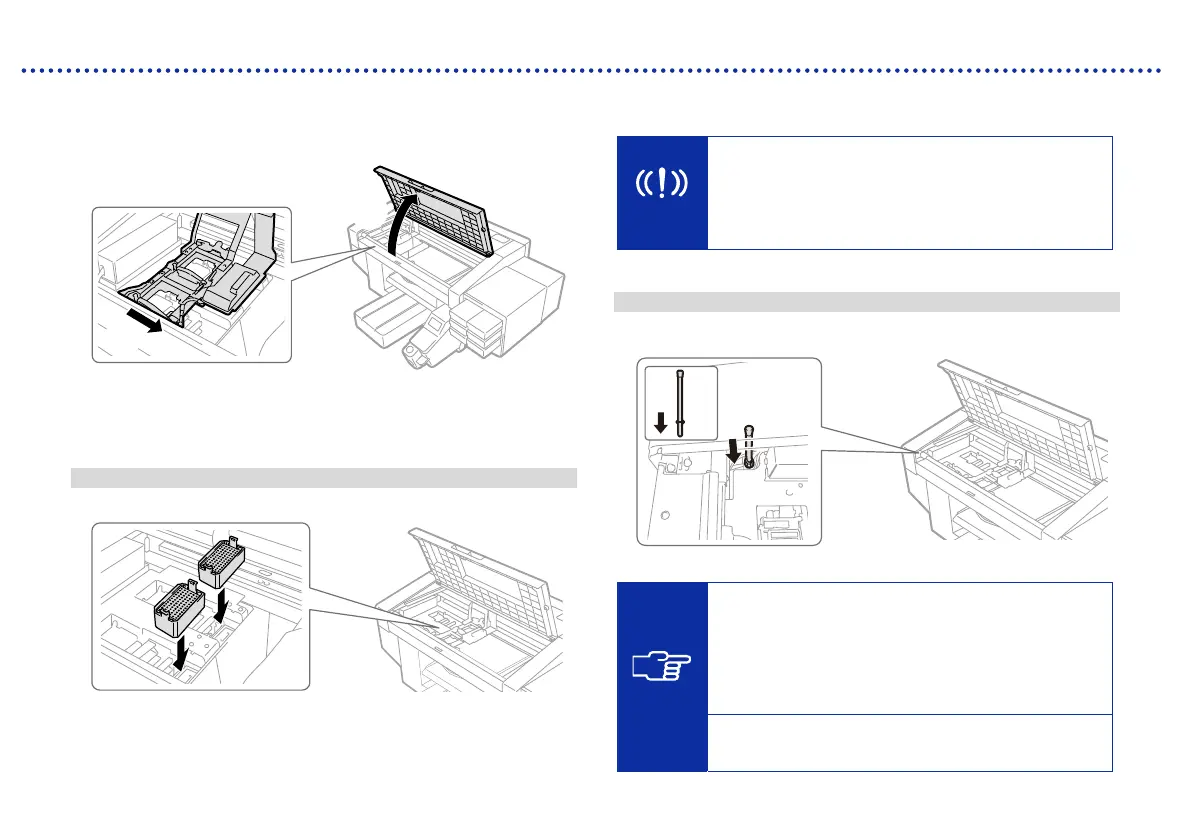

Mount the following supplied accessories inside the printer.
Open the cover to the direction a and shift the carriage to
direction s. Put on the gloves that came with the printer and
perform the following work.
Flushing receiver
Direct its orientation with the hole on the bottom to the front and
push it in until it clicks (there is no difference in white and color
sides; they can be mounted on either side).
IMPORTANT
Make sure that no flushing foam extends off the
outboard end portions of the flushing receiver. If
it does, it may interfere with the nozzle surface
of the head and may result in a problem
concerning firing of the print heads.
Carriage fixing pin
TIPS
The carriage fixing pin will be needed when the
power is turned OFF due to power outage while
the printer is running and the recovery is not
expected for a while.
Secure the pin in the place illustrated above so
as not to lose it.
The front cover will not close completely if the
carriage is fixed with the carriage fixing pin.
X0007
â‘
â‘¡
X0006
X0187
