Disassembly / Replacement / Adjustment

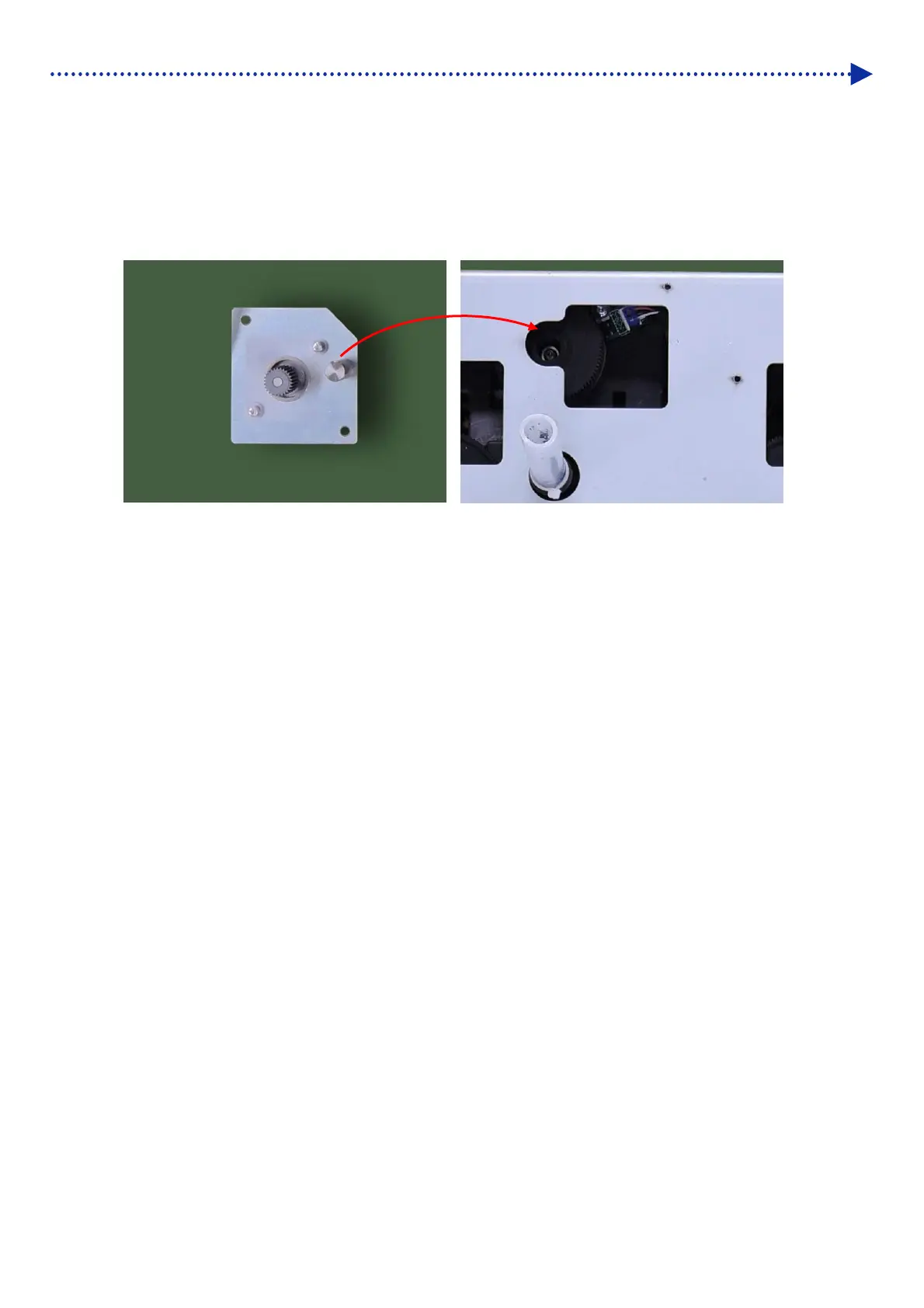

Assembly of wiper motor
(1) Taking care not to mistake the direction of the motor connector, use two screws to mount the motor on the wiper
cam motor plate.
(2) Taking care so that the motor-side gear does not run on the gear of the main maintenance unit, insert the shaft of
the wiper cam motor plate into the gear.
(3) Use two screws to fix the wiper cam motor plate.
(4) To perform the assembly after mounting the motor, take the reverse procedures to disassembly operation.
