Disassembly / Replacement / Adjustment
6-1-15. Replacement of ball bushing

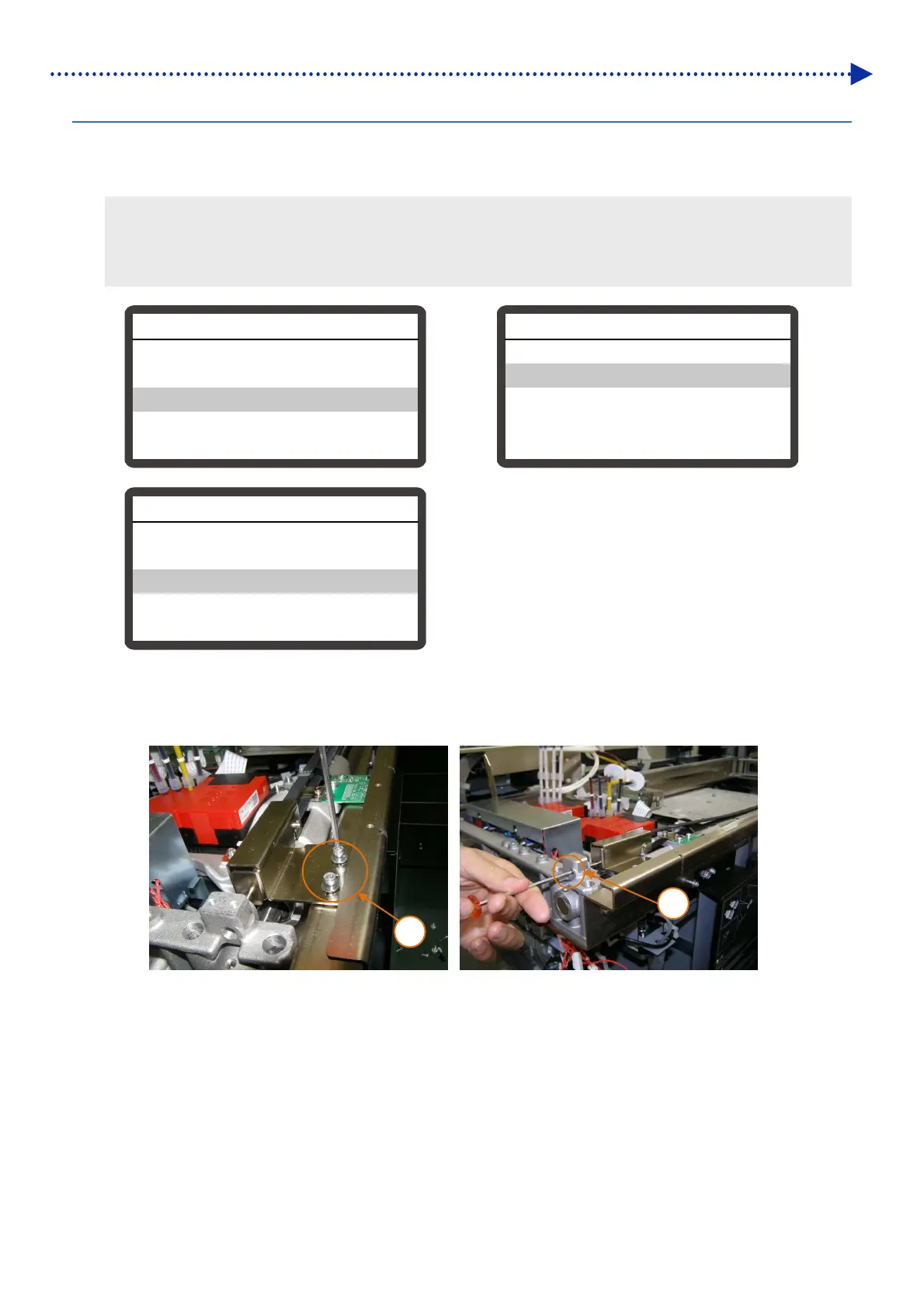

(1) Select the [Output Check] from the Advanced menu and select the [Carriage Test] > [To Center]. Press and hold
down the power button to power off.
<IMPORTANT>
ï‚· Please complete the task within 1 hour, in order to prevent the print heads from drying up.
Long-hour continuation of a head without capping may lead to non-ejection of ink-jet droplets.
ï‚· Secure space necessary for the removal of the carriage shaft on the left side of the main unit.
(2) Remove cover upon reference to "6-1-11. Replacement of carriage motor".
(3) Remove the three hole bolts on belt tension adjustment mechanism and detach tension adjustment mechanism.
3
3
Solenoid Test
Carriage Test
Wiper Test
Output Check
To Center
To Flushing Position
To Cap Position OK
Carriage Test
Print Position Adjust
Input Check
Output Check
Setting special work mode
Exchange Filter
Advabced Menu
To Next Page
