Disassembly / Replacement / Adjustment
6-1-18. Replacement of maintenance unit
Disassembly

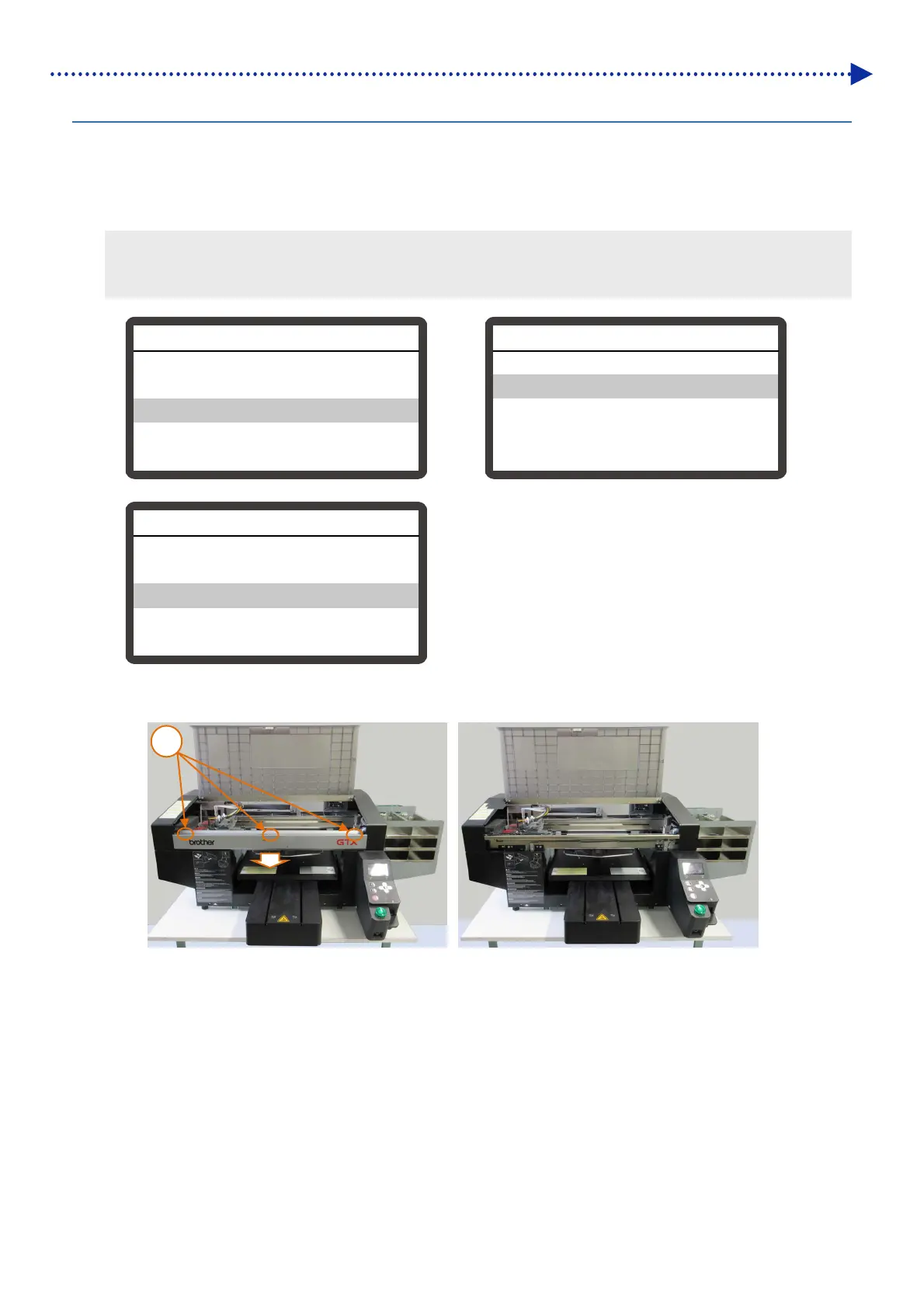

(1) Select the [Output Check] from the Advanced menu and select the [Carriage Test] > [To Center]. Press and hold
down the power button to power off.
<IMPORTANT>
ï‚· Please complete the task within 1 hour, in order to prevent the print heads from drying up.
Long-hour continuation of a head without capping may lead to non-ejection of ink-jet droplets.
(2) Open the top cover of the main unit and remove the three screws of the encoder cover F to detach it.
(3) Loosen the two screws fixing the cover L.
2
Print Position Adjust
Input Check
Output Check
Setting special work mode
Exchange Filter
Advabced Menu
Solenoid Test
Carriage Test
Wiper Test
Output Check
To Center
To Flushing Position
To Cap Position OK
Carriage Test
To Next Page
