6-197
Disassembly / Replacement / Adjustment
Replacement of wiper motor

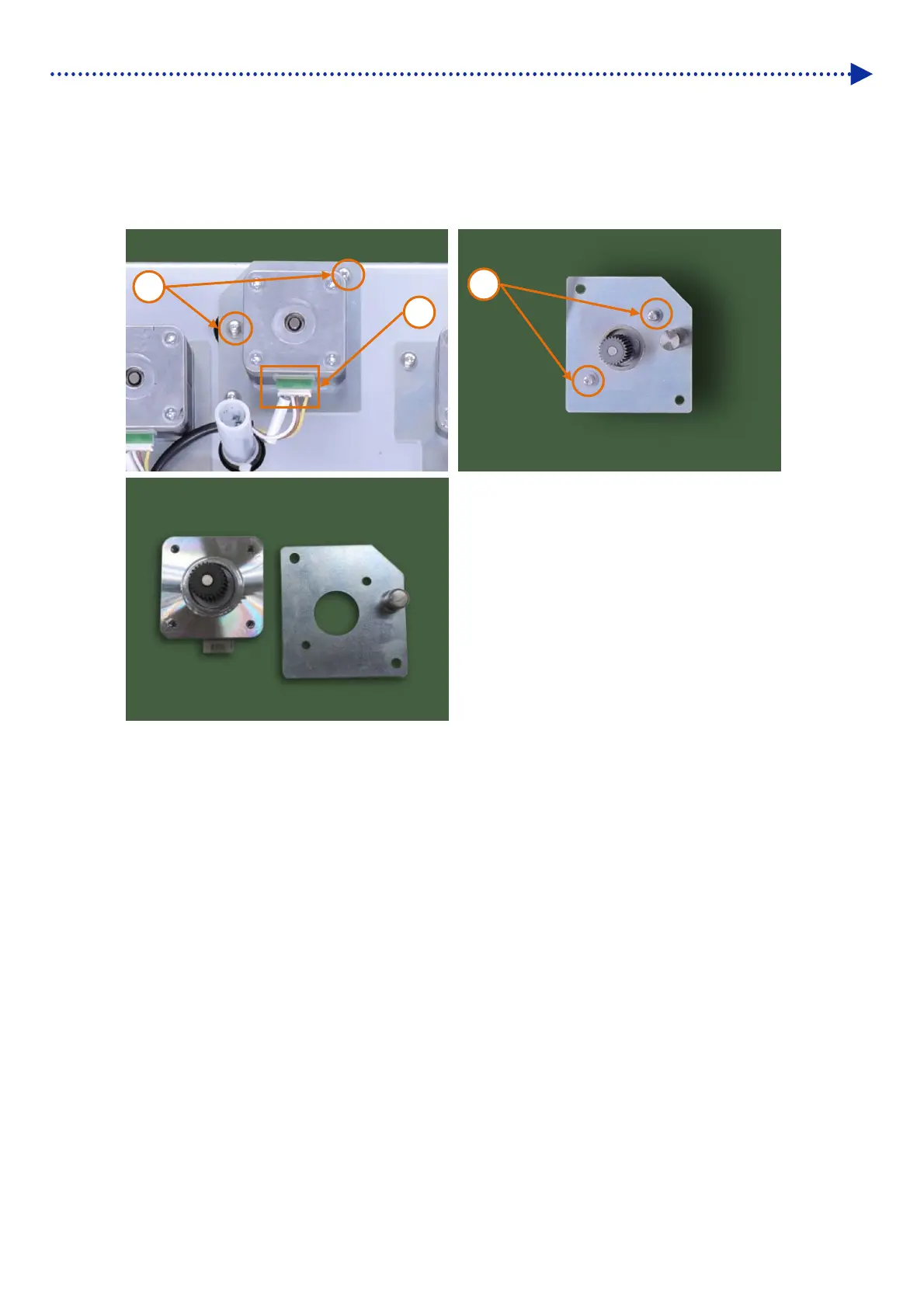

(1) Disconnect the connector of the motor to be replaced.
(2) Remove the two screws fixing the wiper cam motor plate to detach the motor.
(3) Remove the two screws fixing the motor to detach it from the wiper cam motor plate.
2
1
3
