Brother GTX-4 Service Manual

6-10
Disassembly / Replacement / Adjustment

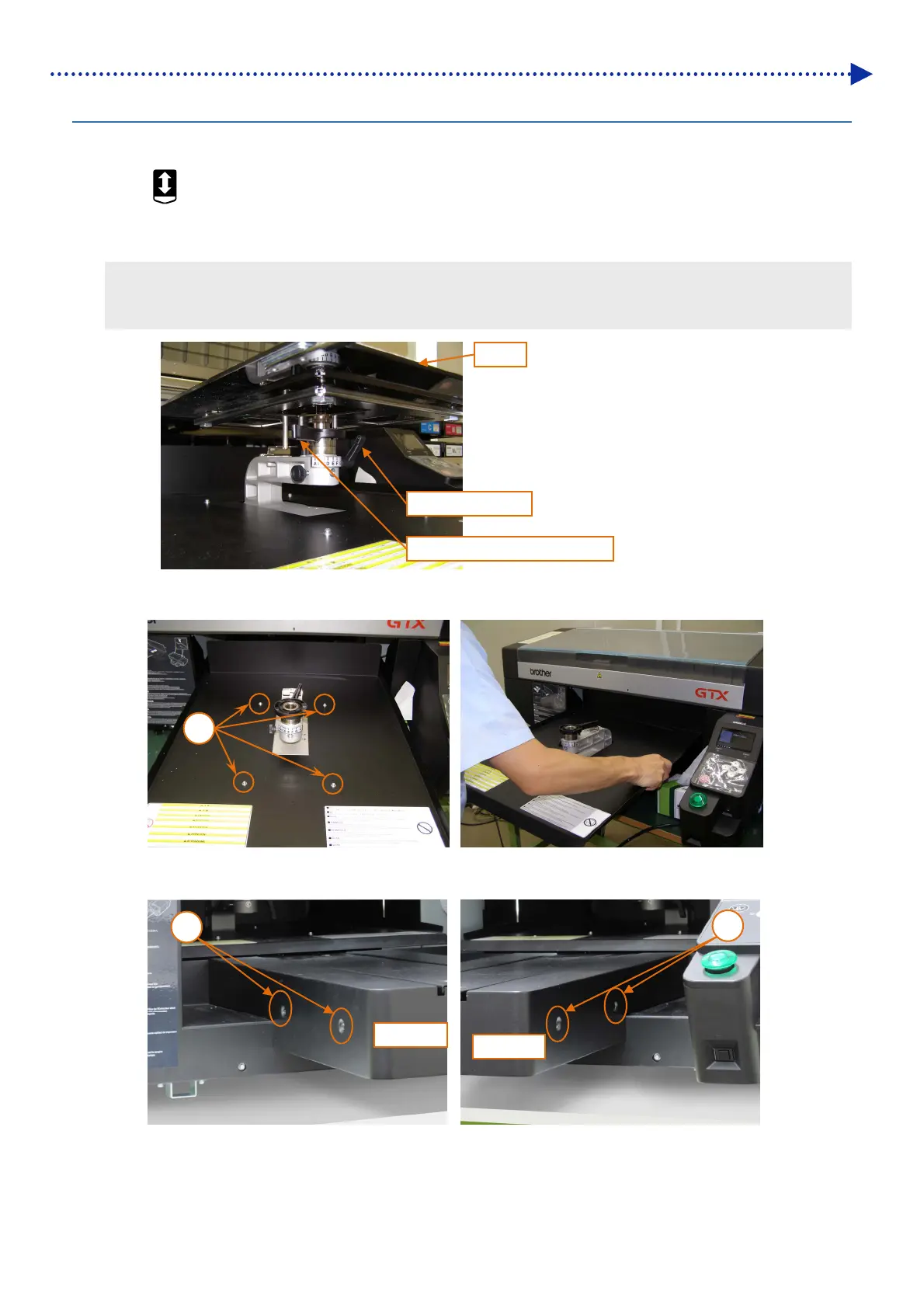

6-1-3. Disassembly / Assembly of platen
Disassembly
(1) Press on the control panel to advance platen.
(2) Press the power switch to turn off the power.
(3) Loosen Platen fixing lever to detach platen.
<CAUTION>
 Rotate Platen height adjustment lever so lever is pointed rearward.
 Remove the platen moving it straight upwards by holding both ends of it.
(4) Remove the four screws fixing the T-shirt tray and detach tray while lifting it.
(5) Remove the four screws on either side of the cover PF.
5
5
Cover PF
Cover PF
4
Platen height adjustment lever
Platen fixing lever
Platen
