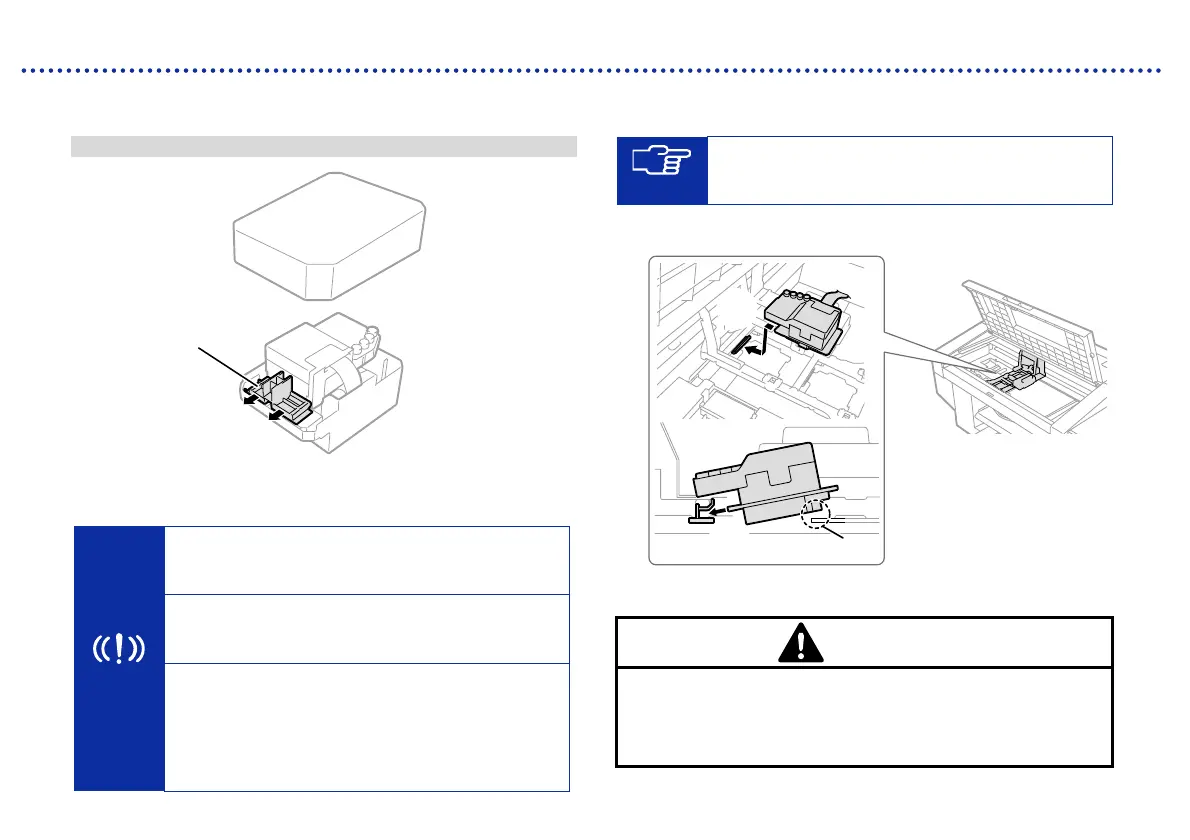

Print head
1.
There is no difference in white and color sides; they can be
mounted on either side.
IMPORTANT
Changing the heads of white side and color side
should be avoided once the inks are filled after
mounting the heads.
When you unpack the head, be careful not to
touch the bottom of the head. Otherwise it may
cause poor printing.
When you mount the head, shift the carriage
toward the center of the printer; to the position
above the platen. If you perform the mounting of
the head when the carriage is directly above the
maintenance unit, it may damage the
maintenance unit or the heads.
TIPS
The gray area (a) illustrated above may be hard
and difficult to remove. If it is, use both hands to
remove it.
2.
Insert the head firmly to direction a.
CAUTION
When mounting the head, be careful not to move the
carriage as much as can be avoided. Your hand may be
caught in the carriage and injured. In addition, the tubes
may be rolled together possibly damaging them.
â‘
â‘
(b)
X0010
(a)
X0009
