6-195
Disassembly / Replacement / Adjustment

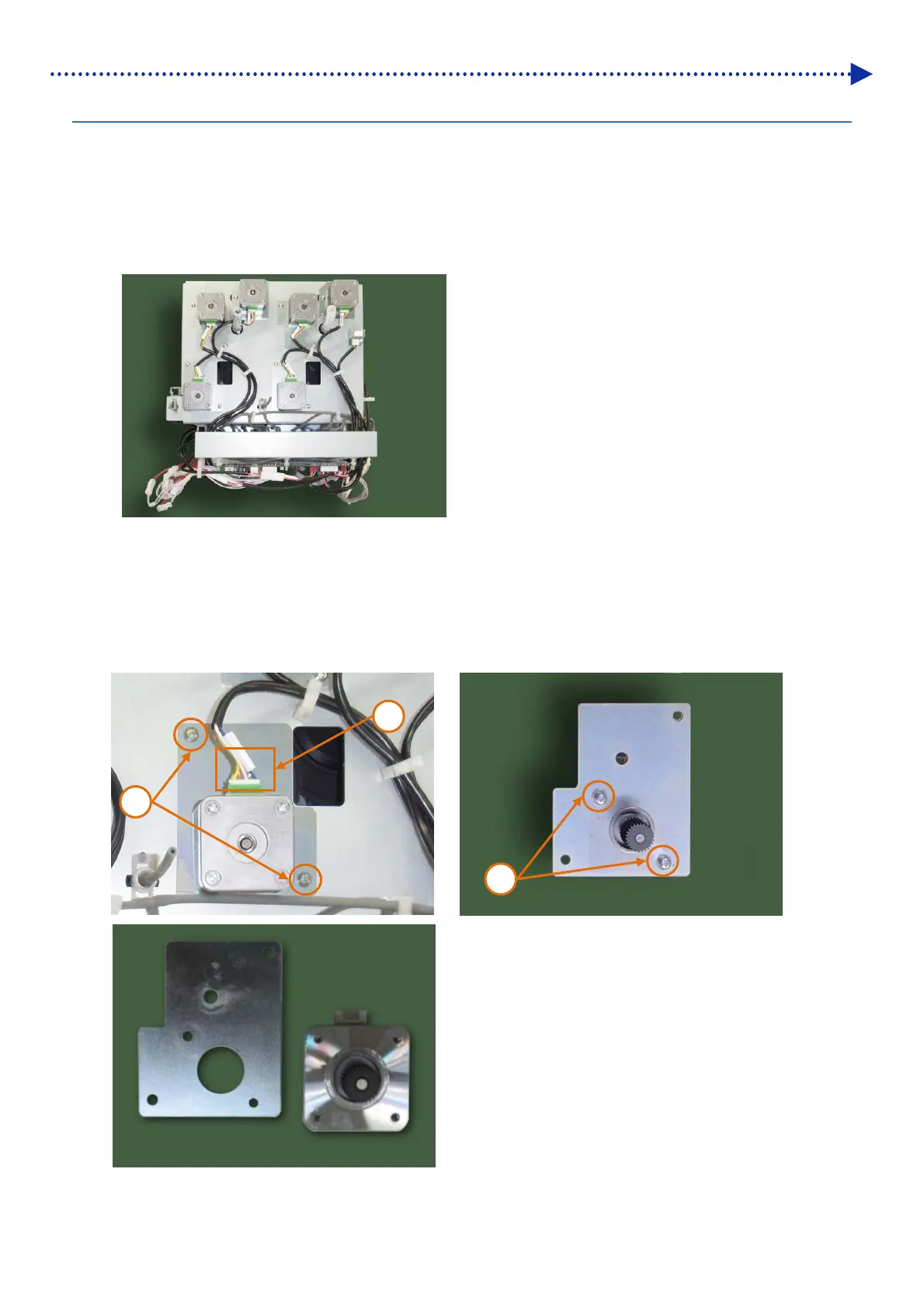

6-2-25. Replacement of maintenance motor
Disassembly
(1) With reference to "6-2-24. Preparation for replacement of electric components inside maintenance unit", detach the
maintenance unit from the main unit.
(2) Reverse the maintenance unit.
Replacement of pump motor and cleaner motor
(1) Disconnect the connector of the motor to be replaced.
(2) Remove the two screws fixing the motor plate to detach the motor with the motor plate attached.
(3) Remove the two screws fixing the motor to detach it from the motor plate.
2
1
3
To Next Page
