Brother GTX-4 Service Manual

2-26
Installation and preparation
2-5-4. Platen feed adjustment
Platen feed adjustment should be performed after replacing the print head or completing the set up procedure.
If you are making adjustments after replacing the head, this task should be carried out after configuring the V-rating
settings and adjusting the firing timing.
(1) Make several sheets of A4-size or letter-size white paper available for use.
(2) Make sure that a connection of USB 2.0 cable or LAN cable is made between the printer and your PC.
(3) On the PC, from [All Programs] in the Start menu, select the "GTX-4 Maintenance" from "Brother GTX-4 Tools".

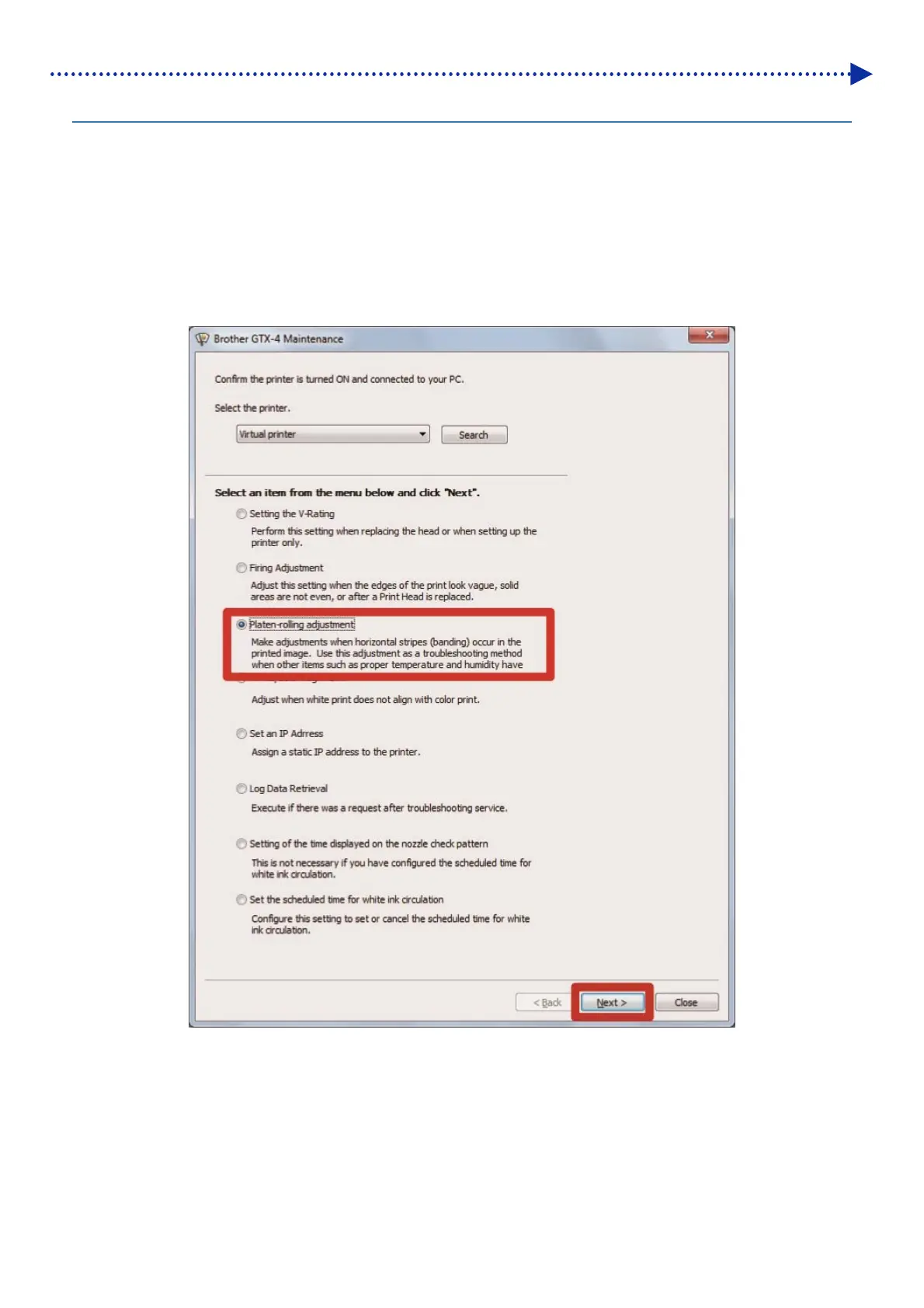

(4) When the window shown below is displayed, select [Platen-Rolling Adjustment] and click [Next].
(5) Perform the required operation by following the on-screen instructions in the dialog box.
After the adjustment is completed, the currently displayed screen will go back to the window mentioned above.
