6-47
Disassembly / Replacement / Adjustment

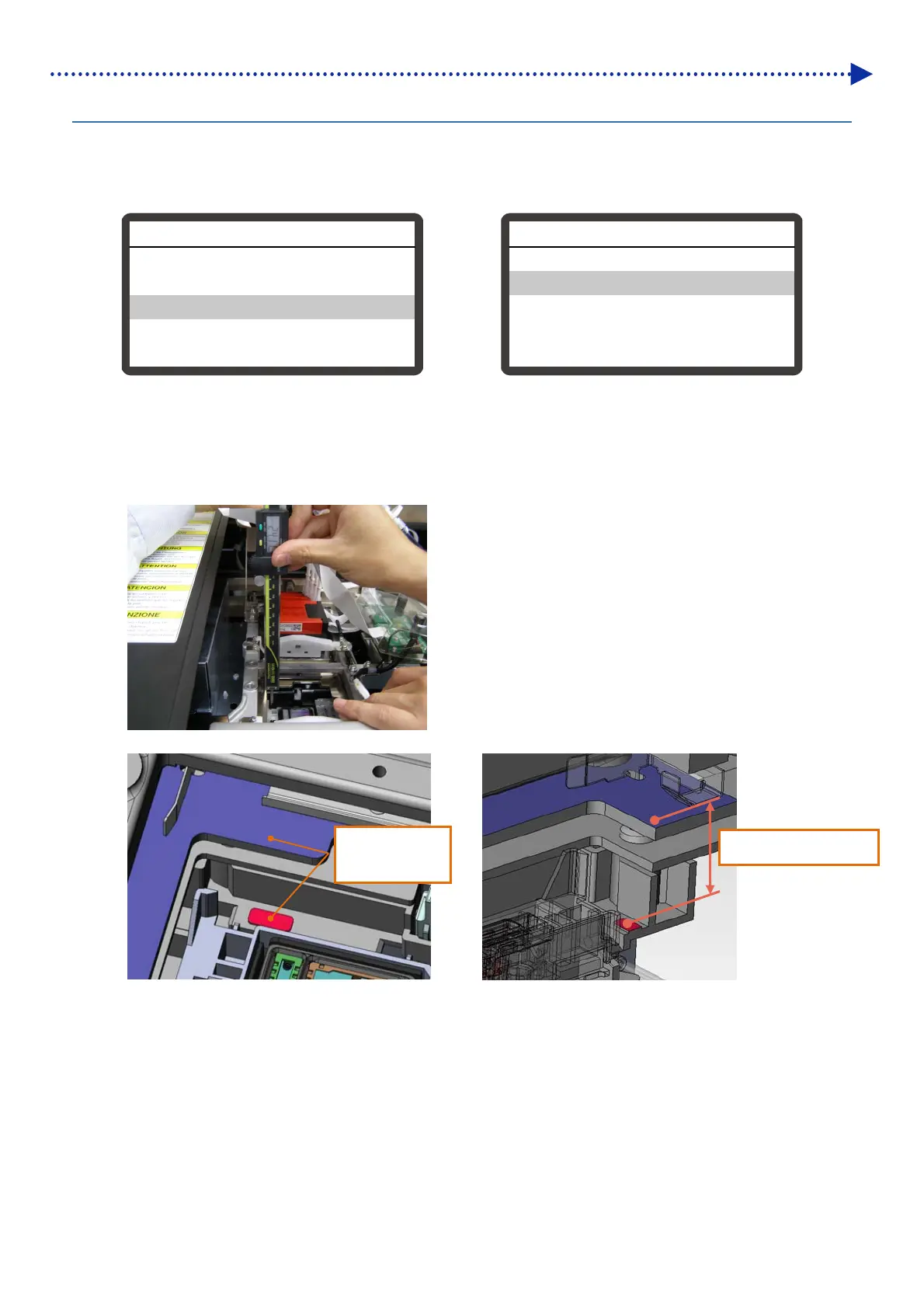

6-1-16. Height adjustment of carriage
(1) Select the [Output Check] from the Advanced menu and select the [Carriage Test] > [To Center]. Press and hold
down the power button to power off.
(2) Measure the heights of the maintenance unit and carriage at the portion indicated in the photo below and check that
they are at 0.94 in. (24 mm)±0.1.
Check the two portions of both color-side and white-side.
Measurement
points
0.94 in. (24 mm)±0.1
Print Position Adjust
Input Check
Output Check
Setting special work mode
Exchange Filter
Advabced Menu
Solenoid Test
Carriage Test
Wiper Test
Output Check
To Next Page
